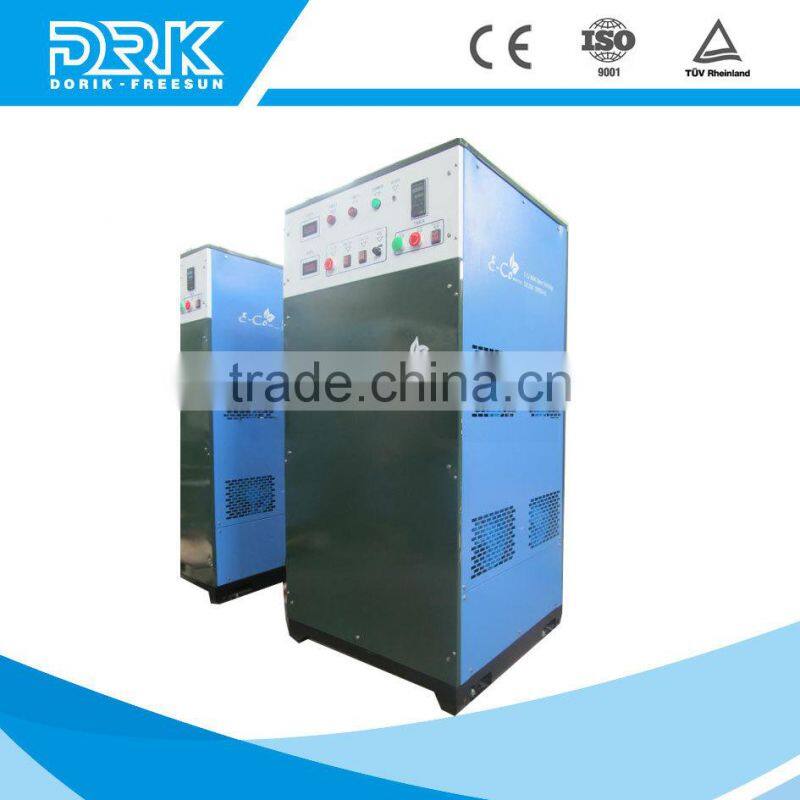

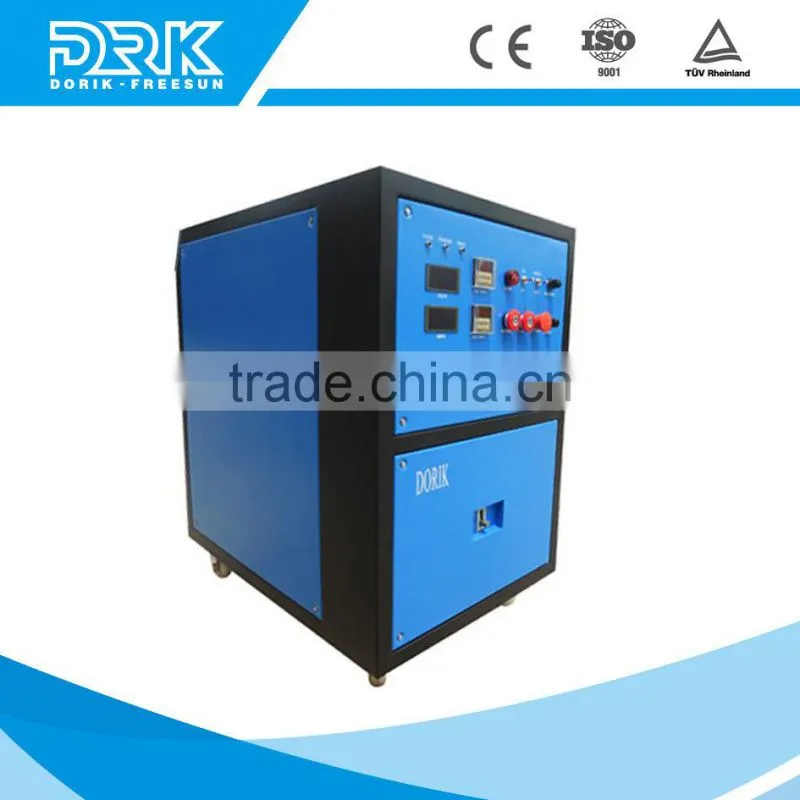

Help Center7000A-20V Cooper Electrowinning Linear Power Supply
Related Products
-
Low Ripple High Frequency DC Switching Power Supply for WatertreatmentNegotiableMOQ: 1 Unit -
IGBT Water Electrolysis Power Supply With Control BoxUS$ 2,300 - 3,000MOQ: 1 Unit
-
DC Adjustable Switching Reverse Sludge Rectifier dc Power SupplyNegotiableMOQ: 1 Unit
-
Water Treatment ac dc Switching Variable Power Supply With 2 Years WarrantyNegotiableMOQ: 1 Unit
-
Switching Mode Waste Water Treatment Power SupplyNegotiableMOQ: 1 Unit
Electroplating rectifier switching power supply
Features & Specification of Basic Model
type |
DR-7000A-12V |
|
|
Electrical specification |
Input voltage |
three phase AC220±15% /380 50-60HZ |
Rated output voltage |
0-12V |
|
Rated out current |
0-7000A |
|
Rated out power |
140KW |
|
|
Range of output Conditioning |
At 0 to100% of rated voltages |
|
At 0 to100% of rated currents | ||
Adjustment range |
From 0-100%continuously adjustable |
|
Output conditioning method |
Switching mode |
|
Machine efficiency |
≥90% |
|
Constant voltage control accuracy |
Within 1.0%of rated output voltage |
|
Constant current control accuracy |
Within 1.0%of rated output current |
|
Insulation resistance |
5MΩor more |
|
Cooling system |
Forced air cooling |
|
|
Working condition |
Location |
Indoors |
Ambient temperature |
-20-55°C(overheating self-protect) |
|
Relative humidity |
30-85% |
|
1. small,light and efficient.
The proper combination of unique assembly structure and nanotechnology makes it small in size and lightweight ,saving space and improving efficiency.
2.. high-frequency pulse current output.
It can be used in the electroplating of non-ferrous metals and alloys ,With strong penetrability and adhesion.it can significantly quicken deposition rate of the plating coat.
3.easy and flexible operation.
The output voltage and current can be adjusted freely and flexible according to the electroplating requirements. It can also be flexible switched between constant voltage and constant current.
4. complete protection funcrtions.
5. It has many functions which protect against input under-voltage,over-voltage ,phase loss, output over-current and overheating respectively.
The duct treated internal structure enables reliable performances of the whole product .All of the electronic elements are sealed completely to reduce harm from the exterior environment and ensure stable and long-term operation .
6. Expandable functions .Timing control function and communication function .(4-20mA,0-5V and 0-10v standard control signal interfaces are optional)
Soft start and current calculation (ampere hour)
7. Complete models .Optional output specifications (output voltage and current ) .Optional matching functions and control modes.
Applications :it can be used in electroplating of acid copper ,alkali copper,nickel, zinc and chrome ,as well a electrolytic degreasing.(code01-5)
IGBT rectifier advantage
- Specification meets your application
- Higher efficiency, saving running cost
- Small size, saving space and enlarging your capacity possible
- Light weight, easy to move, save shipping cost
- High reliability, low fault rate, minimize repair trouble
- Easy to maintain, self diagnosis, touch screen display fault type, shorten repair time
Company advantage
The rectifier is designed and developed by ourselves, patents approved.
We are factory, have manufacturing ability and good craftwork.
High quality, quality control follows ISO9001:2008 and Chinese military standard.
Full load testing ability
Technical service available before sale and after sale
Have rich foreign trade business experience
Our quality assurance
- All units guaranteed 12 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions
- Long history proved high reliability and high quality by foreign and domestic applications
- ISO9001:2008 international quality standard, military standard quality control
- Strong technical ability ensures reasonable, professional and safe design
- Good quality components are used
- Full load testing before shipment
- Successfully used for sapphire, silicon industries which require strict quality
- Military application proved high reliability
