Digital Controlplating Rectifier System With IGBT Modules
- any chinese port
- T/T D/P D/A Credit Card
You May Like
-
24V Air Cooling IGBT dc Switch Mode Electroplating Rectifier With Digital Control Box
-
High Frequency Switching Three Phase Rectifier Electroplating
-
Automotive Chrome Plating External Atx Power Supply
-
IGBT 48v Telecom Rectifier
-
High Power Supply 24v 50a
-
Customized Available 12v 100a Switching Power Supply
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dorik | |
| Model Number | DR-4000A-18 | Output Power | Other, >500W | |
| Output Voltage | 18V | Output Frequency | 20kHz | |
| Output Current | 4000A |
Product Description

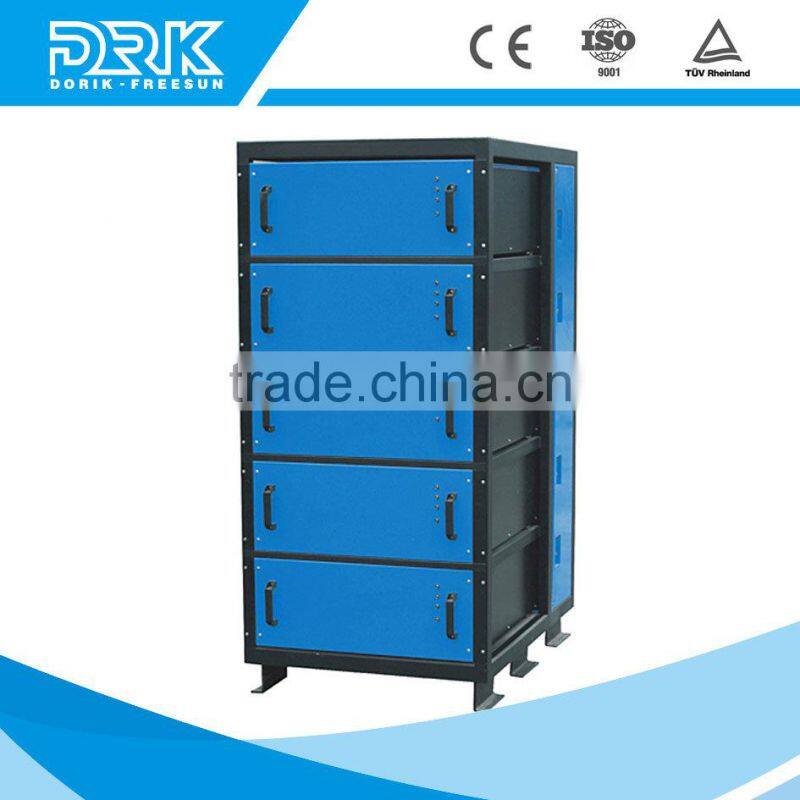

Digital control plating rectifier system with IGBT modules
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-6V/12V/18V/36V/48V/72V adjustable |
| Output current | DC 0-1000A/ 2000A/ 4000A/ 6000A/ 10000A adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Specification | Size(mm) Outline | ||||
| A | B | C | D | E |
DR-3000A-18V | 550 | 850 | 670 | 430 | 150 |
DR-4000A-18V | 550 | 1100 | 670 | 430 | 150 |
DR-5000A-18V | 670 | 1100 | 730 | 490 | 150 |
DR-6000A-18V | 740 | 1310 | 730 | 490 | 150 |


1. All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions.
2. Strong technical ability ensures reasonable, professional and safe design.
3. Good quality components are used.

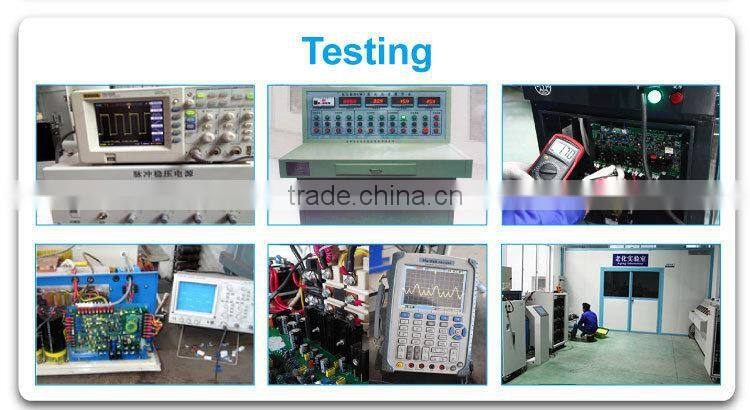

4. Full load testing before shipment.
5. Complete protections.
6. Meet CE requirement.

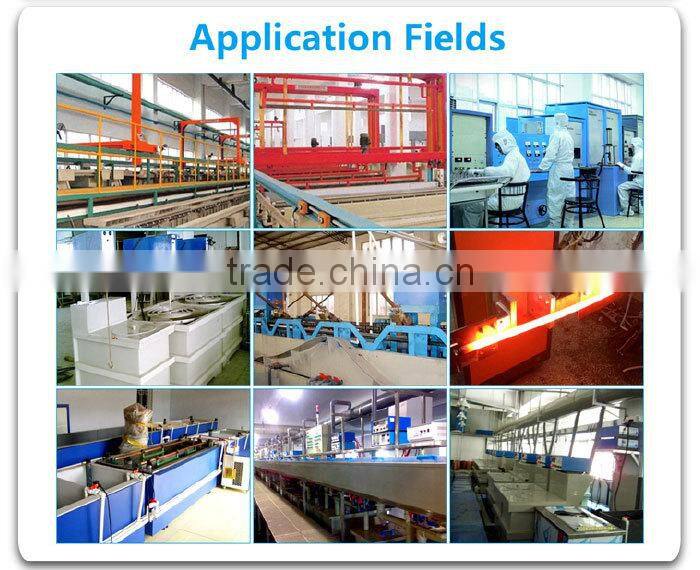

1) Surface treatment: Electroplating. Electrolytic metal treatment. Metal finishing. Base metals. Non metals and plastics. Barrel plating. Rack plating. Continuous plating. Hard aluminum anodizing. Decorative anodizing.
2) Electrolysis: All major applications. Metal electrowinning. Electrorefining. Sodium hydroxide electrolysis. Salt electrolysis. Sodium chloride electrolysis. Chlor alkali electrolysis. Water electrolysis.
3) Cathodic protection water purification. Water electrocoagulation and inductive heating.
Website: http://www.dorik.en.china.cn
