MURP30045 ultra fast soft recovery diode rectifier

MURP30045 ultra fast soft recovery diode rectifier

1.Description:

Ultra FRD module devices are optimized to reduce losses and

EMI/RFI in high frequency power conditioning Electrical systems.

These diode modules are ideally suited for power converters, Motors drives and

other applications where switching losses are significant portion of the total losses.

2.Features

1) Repetitive Reverse Voltage RRM : =100V

2) Low Forward Voltage Drop : F(Vtyp.) = 0.8V

3) Average Forward Current   : IF(AV.) = 400A  @ Tc= 100℃

4) Ultra-Fast Reverse Recovery Time rr( : tytp.) = 85ns

5) Extensive Characterization of Recovery Parameters

6) Reduced EMI and RFI

7) Non Isolation Type Package

3.Application Fields

Motor Drives

Free wheel use

High Power Converters

Welders

Various Switching

Telecommunication Power Supply.

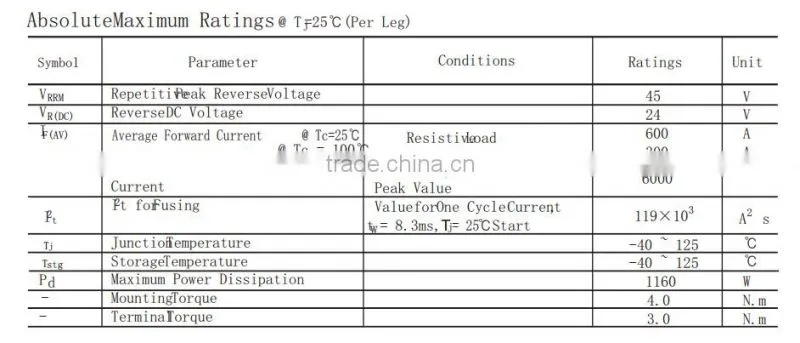

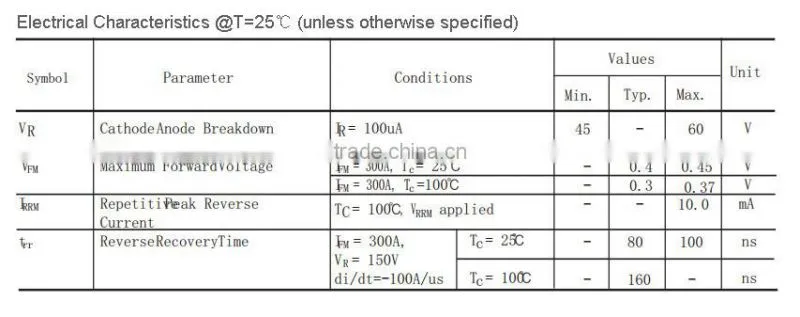

4. Technical parameters

5.Outline drawing and dimension

6.After  service

1.  If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.

2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.

3. Supply detailed operation manual and troubleshooting table .

4. Supply technical support to find out problem reason and guidance of troubleshooting.
