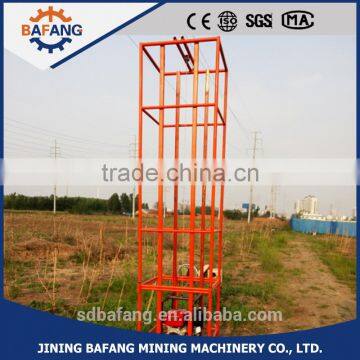

Four feet digging machines

Four feet digging machines

Features:

(1) fixed four-angle frame

(2) can drill 400 mm diameter below the hole, the depth can reach 2.2 meters, (3) four-stroke high-powered gasoline engine,

(4) with a moving wheel, the rack can be carried separately, the shelves fixed solid, safe, simple, easy to transport!

product description:

1. Efficient: digging machine power strong, 10-40 cm in diameter, the depth of 80 cm -2.2 m pit about 10 seconds -5 minutes will be able to complete the efficiency of ordinary artificial pit approach more than a hundred times;

2. Operation simple: digging machine An operator can complete a variety of pit drilling work;

3. High quality of operation: the use of high-strength drill, foot, four corners positioning torsion, tensile screw drill pipe, dug up the pit straight, real, less soil within the pit, the maximum depth can reach 80-250 cm;

4. Practicality: the type of equipment has a strong off-road performance, hills, mountains and other complex terrain can be used well, in the loess layer, clay layer, with pebble gravel soil and other parts of the terrain work;

5. The use of a wide range: The device can be widely used in power telecommunications engineering, municipal engineering, greening tree planting, construction works, solar photovoltaic power generation projects, and so on;

6. Equipment small size, suitable for use in the small space space operation

Maintenance knowledge:

1, in strict accordance with the signs marked on the power to match, to stop overload, ultra-speed or long time in the low load, low speed work

2, the use of the rules of the trademark of gasoline and oil, oil before the use of adequate filter clean. The oiler should be kept clean and the oil should be replaced regularly.

3, regularly check the convergence of gasoline engine tightening bolts of their own degree, and timely to be fastened.

4, regularly check the air filter cartridge, if necessary to be replaced.

5, the machine is air-cooled gasoline engine, heat sinks and fans on the debris, dirt should be promptly eradicated to ensure the normal cooling of the gasoline engine.

6, the use of personnel should understand the operating principle and layout of the gasoline engine, adhere to regular protection and conservation, found that the timely removal of the disease to stop the work of gasoline engine disease.

7, the muffler of high temperature parts, in use to stop contact to avoid burn

Configuration details:
A set of drilling, gasoline engine power, a clutch, a chain, a deceleration machine, drill pipe, four shoots, hoist a set, 1 set of wheels, accelerator cable + within six arrises wrench + packaging
