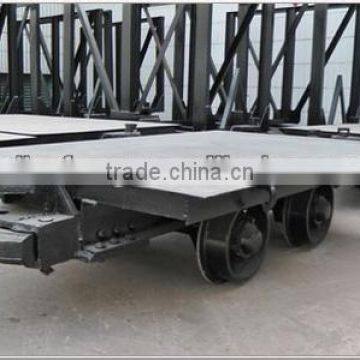

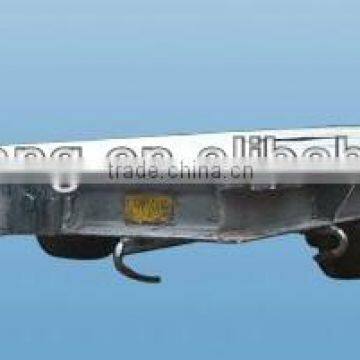

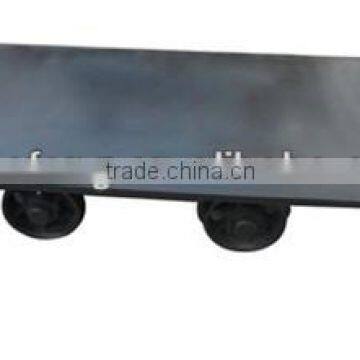

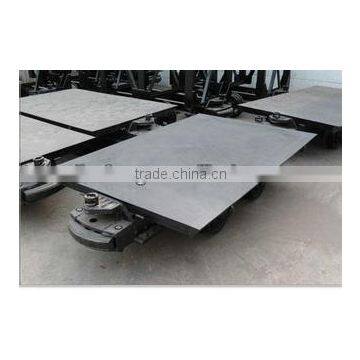

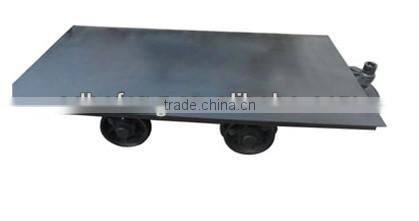

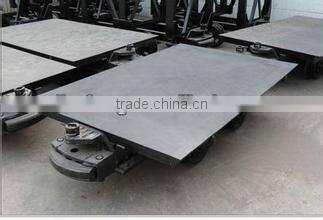

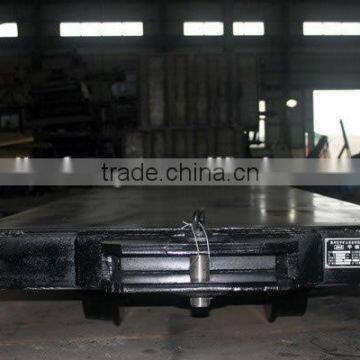

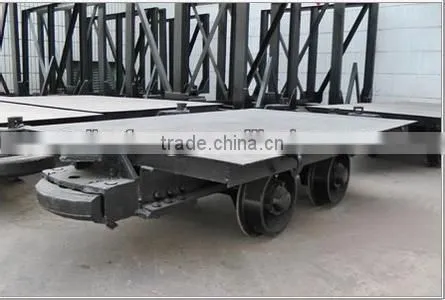

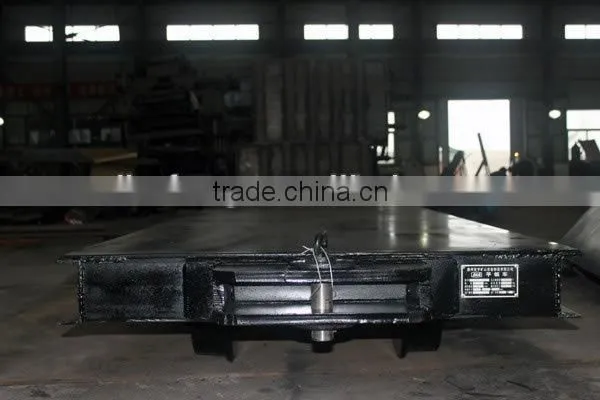

Help CenterMPC Coal Mining Platform Lorry/platform Car for Transportation
Related Products
-
Coal Mining 7.5kw Electric Scraper WinchUS$ 3,000 - 6,000MOQ: 1 Set -
Coal Mining 55kw Scraper Winch Made in ChinaUS$ 3,000 - 6,000MOQ: 1 Set
-
Coal Mining 30kw Double-drum Explosion-proof Electric Scraper WinchUS$ 4,000 - 7,000MOQ: 1 Set
-
Good Quality Electirc JD-2.5 Dispatching WinchUS$ 7,200 - 8,500MOQ: 1 Set
-
Underground Coal Mining 55kw Scraper Winch on SaleUS$ 3,000 - 6,000MOQ: 1 Set
Specifications
Specifications:1.Made by high quality steel
2.fast delivery
3.low cost and easy operation
Product introduce:
Using variant single centripetal ball bearings, the environment is very bad, rough roads, dust in severe cases, still can normal use, greatly extend the service life of the mine flat wagon bearing;Simple main reinforcement and bearing structure reasonable, low cost, suitable for small tonnage mine transportation.Apply to the underground mining of the mine, industrial sites along the underground tunnels and surface transport equipment or other items.
Model
| Load t | Gauge mm | Wheelbase mm | Wheel diameter mm | Traction height mm | Dead weight kg | Size and shape mm |
MPC2 | 2 | 600 | 550 | 300 | 320 | 490 | 200*880*410 |
MPC3 | 3 | 600 | 750 | 300 | 320 | 530 | 2400*1050*415 |
MPC5 | 5 | 600 | 1100 | 350 | 320 | 900 | 3450*1200*480 |
MPC5(A) | 5 | 900 | 1100 | 350 | 320 | 910 | 3450*1320*480 |
MPC5 | 5 | 900 | 600 | 350 | 320 | 780 | 2100*1150*480 |
YPC1.0 | 1 | 600 | 500 | 300 | 320 | 430 | 1500*850*400 |
YPC1.0 | 3 | 600 | 500 | 300 | 320 | 530 | 1900*1050*425 |
YPC5.0 | 5 | 600 | 1000 | 400 | 320 | 1000 | 3000*1200*510 |
