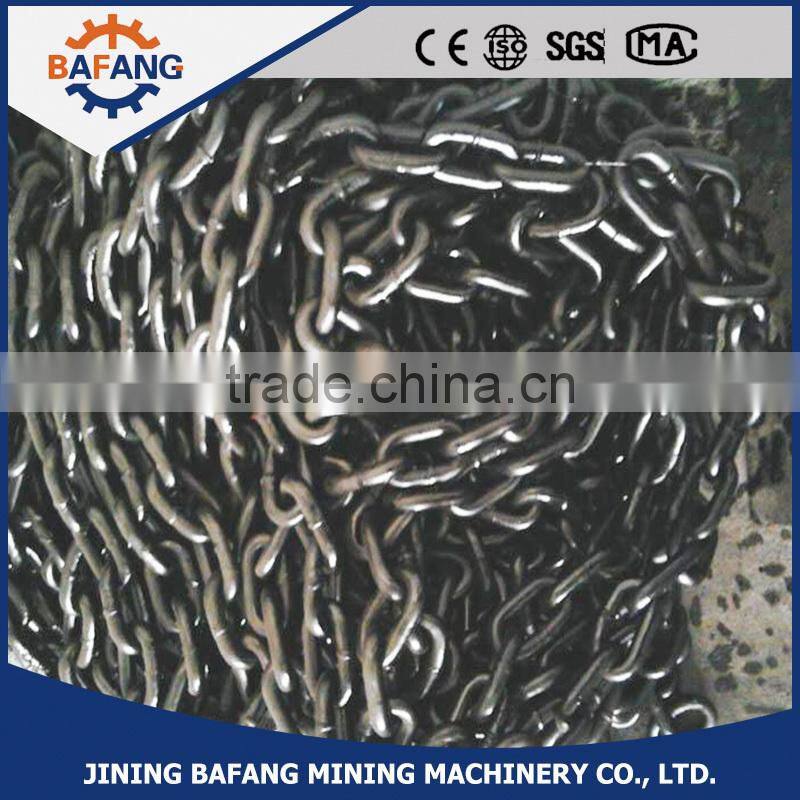

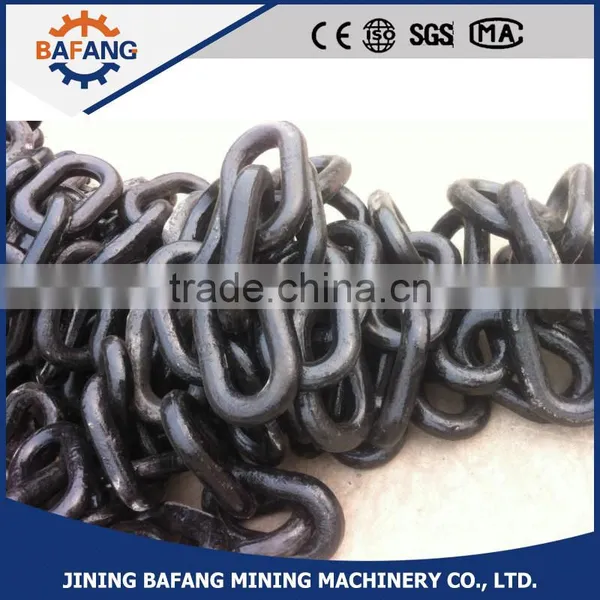

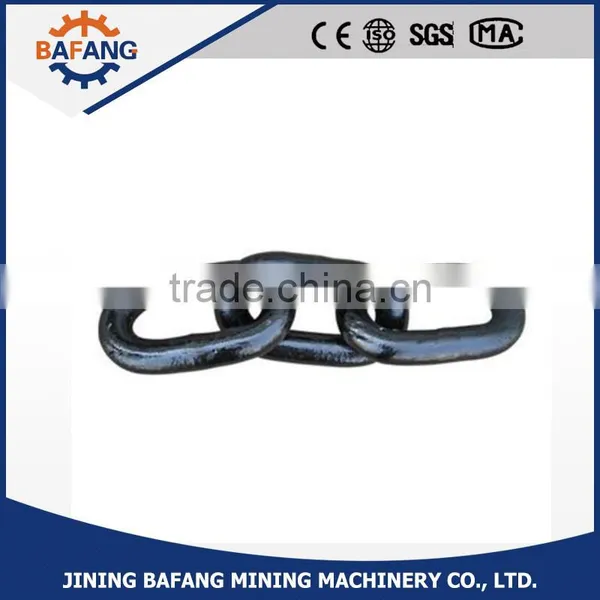

Product Introduction
1)Materials: high quality alloy steel
2)Manufacturing standards: ISO, DIN, BS, GB standards such as, MT
3)Strength grade: C, B
4)Security: proof load is 2 times the working load
5)Three-ring chain is applicable to transport the coal, coal gauge, materials and other
kinds of harvesters and forestry, timber transport connection.
6)Three-ring chain is composed of a material by nine times forging.
Technical parameter
model | height | Circle Radius | Test load weight
| Max telongation experiment | Minimum breaking load
| minimum breaking elongation | minimum in-width | Maximum out-width |
22×105 | 40 | 87 | 41 | 2.9 | 70 | 2 | 370 | 15 |
26×118 | 48 | 108 | 51 | 6.7 | 110 | 2 | 610 | 15 |
28×120 | 48 | 108 | 51 | 6.7 | 110 | 2 | 610 | 15 |
30×120 | 48 | 112 | 53 | 7.8 | 120 | 2 | 670 | 15 |
30×130 | 55 | 119 | 56.5 | 6.9 | 120 | 2 | 670 | 15 |
32×140 | 58 | 126 | 60 | 9.9 | 140 | 2 | 790 | 15 |
34×147 | 64 | 136 | 65 | 10.1 | 160 | 2 | 890 | 15 |
38×145 | 80 | 160 | 77 | 13.65 | 200 | 2 | 1110 | 15 |
