One Piece Automatic Steel Wire Rope Cutter

FOB Price

US$ 1 - 10 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Model Number	QY-30
Type	Hydraulic Cutting Tools

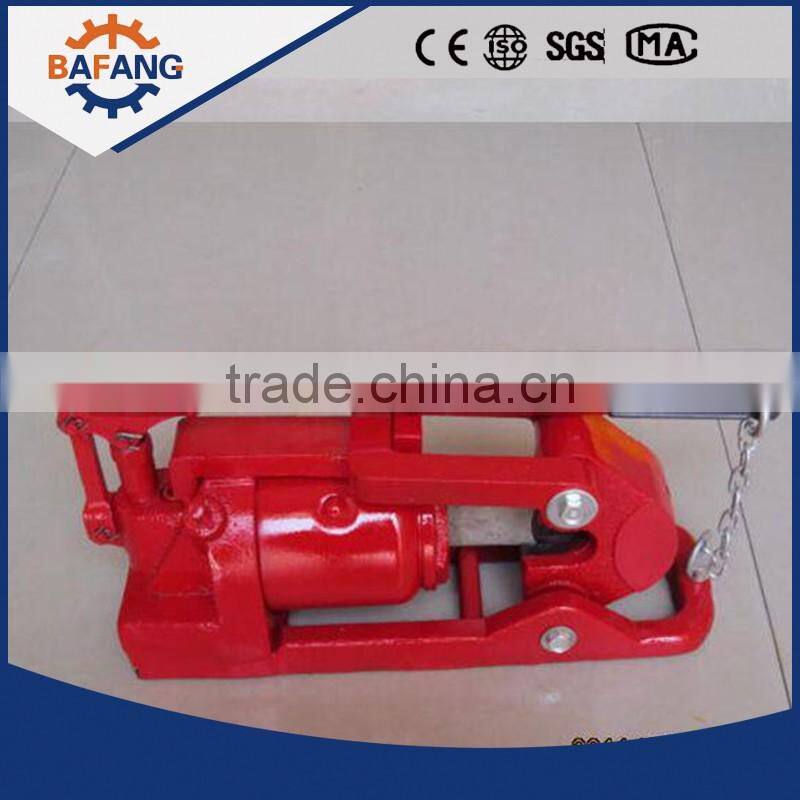

One piece automatic steel wire rope cutter

Introduction

Hydraulic Wire Rope Cutter:

Designed for manually cutting wires with hydraulic power.Gives a clean cut with a few strckes of the

handle without requiring any outside power.

Can be carried to the job and placed anywhere, no firm base is required.Essential for cutting and

splicing wire rope .

Be sure to unscrew the die plug before use and to retighten it after use.

Model	QY30	QY48
Cut biggest diameter of wire rope	30mm	48mm
Piston proceeding	≥38mm	≥60mm
Power proceeding	10mm	8.8mm
The biggest shear force	7.5Ton	20Ton
Oil capacity	1.19L	0.3L
Hand shank force	≤25kgf	≤39kgf
