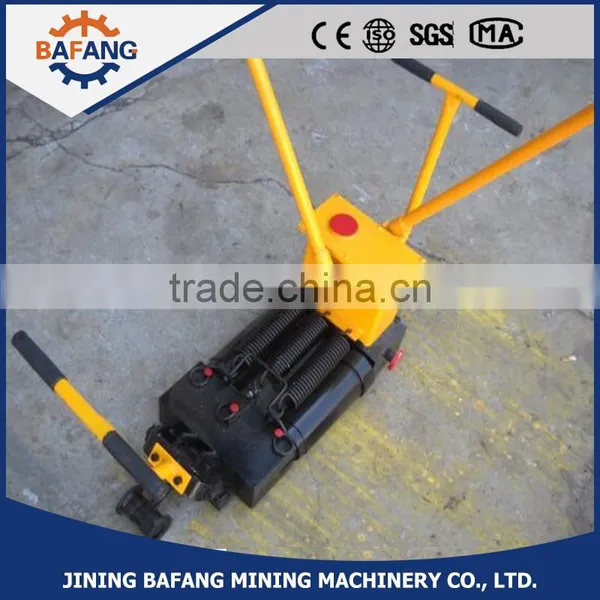

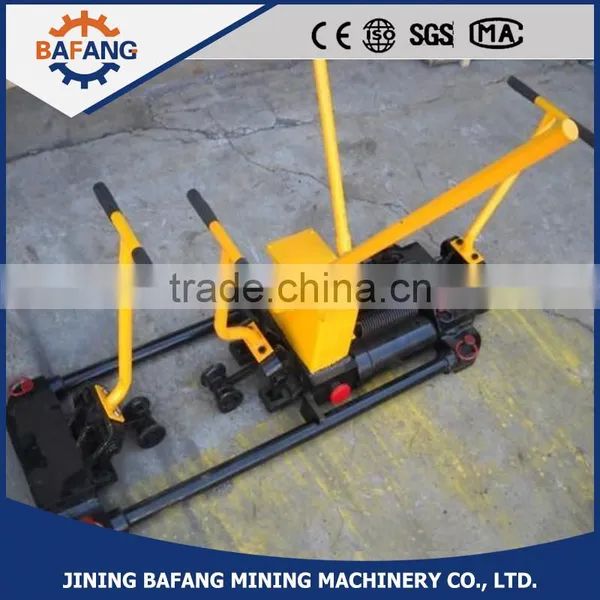

Help CenterYTF-400 Hydraulic Railway Gap Adjuster
Related Products
-
Hydraulic Bend Machine/Hydraulic Railway BendingUS$ 180 - 400MOQ: 1 Set -
High Quality ND-4 Internal Combustion Railway Tamping MachineUS$ 500 - 800MOQ: 1 Piece
-
ND-4 Railway Tamping Machine for SaleUS$ 500 - 800MOQ: 1 Piece
-
Chinese Selling KKY-500 Railway Hydraulic Hole PuncherUS$ 500 - 800MOQ: 1 Set
-
High Quality NGZ-31 Internal Combustion Rail Drilling MachineUS$ 750 - 1,200MOQ: 1 Set
Product introduce:
Under normal circumstances, one can push a length of 12.5 m 43Kg / m rail 4-5 roots; 25 m 43Kg / m rail 2.
YTF-400 rail joints checked before Used:
a. whether the oil level in the tank reaches two-thirds of the tank height
b. return valve effect is reliable
c. pull wedge mechanism is flexible and reliable
d. loose parts of the connections are tight and leak
YTF-400 rail joints steps:
1 Push the rail joints rail joints to be adjusted
2 pull moving frame, so that the two clamps (wedges) falls on rails, so that the oblique iron rails folder in prison
3 Tighten the oil return valve clockwise, rocking lever, so that the high pressure oil input operating cylinder
4 When after each adjustment shall order first unscrew the oil return valve
Technical parameters
Model |
YTF-400 |
rated thrust |
400KN |
Oil Cylinder Maximum Trip |
140mm |
operating oil pressure |
52mpa |
The maximum operating force controller |
400N |
Dimension |
850*300*290mm |
N.W |
80kg |
