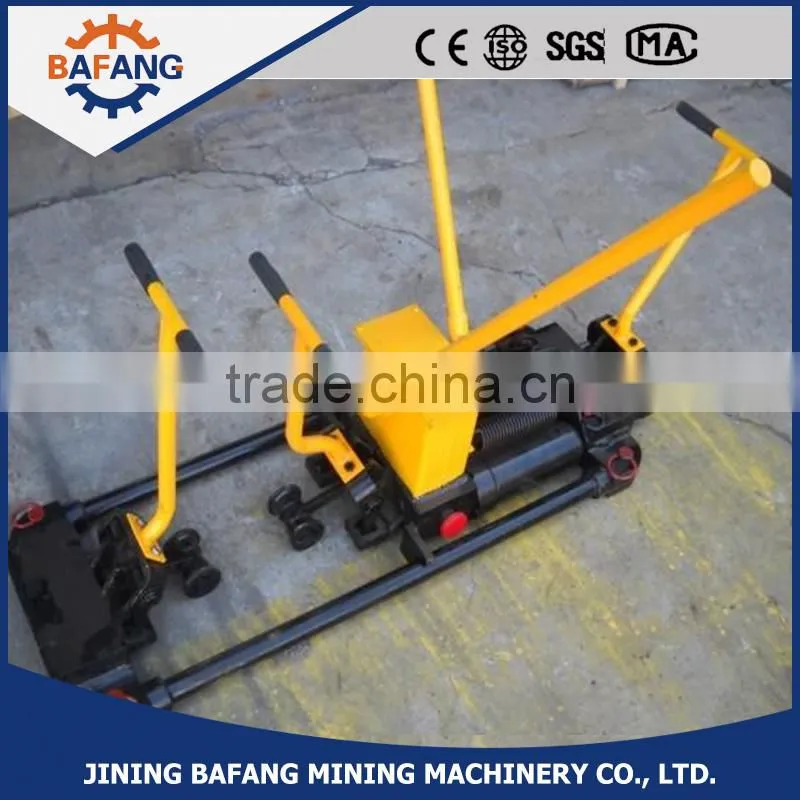

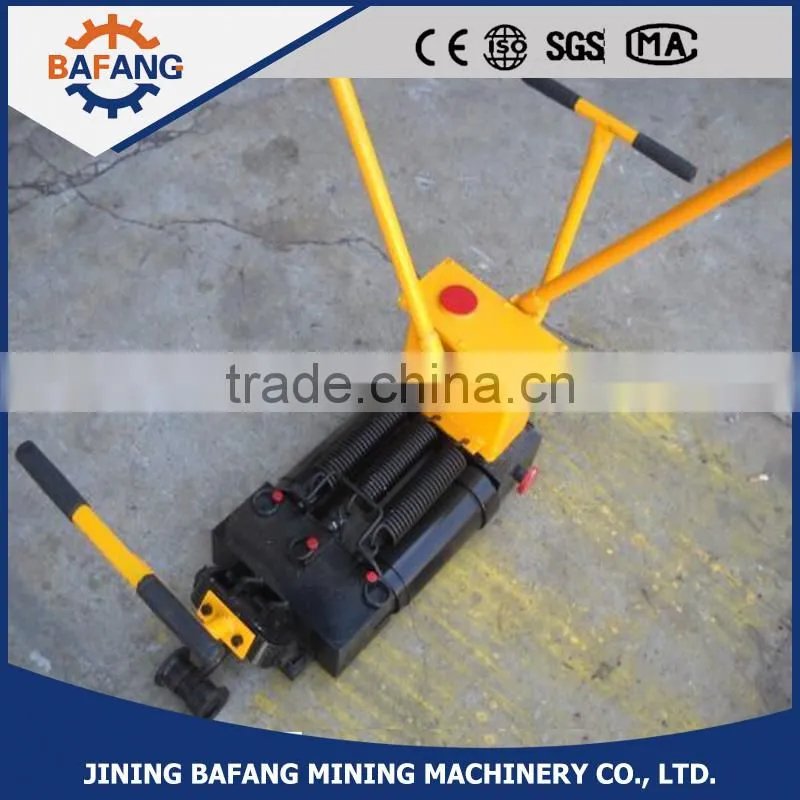

Help CenterHot Selling YTF-400 Hydraulic Rail Gap Adjuster
Related Products
-
Chinese Railway 5 Ton Rack and Pinion JackUS$ 70 - 100MOQ: 1 Set -
Internal Combustion Rail Cutting Machine/diesel/gasoline Rail Cutting MachineUS$ 500 - 2,000MOQ: 1 Set
-
2015 Hot Selling!!! Internal-combustion Rail TRACK Drilling MachineUS$ 20 - 100MOQ: 1 Set
-
5.8kg Rail Air Drill MachineUS$ 250 - 500MOQ: 1 Set
-
Factory Direct Sale! 5 Ton Railway Rack and Pinion JackUS$ 70 - 100MOQ: 1 Set
Product introduce:
Under normal circumstances, one can push a length of 12.5 m 43Kg / m rail 4-5 roots; 25 m 43Kg / m rail 2.
YTF-400 rail joints checked before Used:
a. whether the oil level in the tank reaches two-thirds of the tank height
b. return valve effect is reliable
c. pull wedge mechanism is flexible and reliable
d. loose parts of the connections are tight and leak
YTF-250 rail joints steps:
1 Push the rail joints rail joints to be adjusted
2 pull moving frame, so that the two clamps (wedges) falls on rails, so that the oblique iron rails folder in prison
3 Tighten the oil return valve clockwise, rocking lever, so that the high pressure oil input operating cylinder
4 When after each adjustment shall order first unscrew the oil return valve
Technical parameters
Model |
YTF-400 |
rated thrust |
400KN |
Oil Cylinder Maximum Trip |
140mm |
operating oil pressure |
52mpa |
The maximum operating force controller |
400N |
Dimension |
850*300*290mm |
N.W |
80kg |
