Large capacity 350 Litre concrete mixer

Specifications

specifications
1Good mixing quality.
2.novel structure
3.Perfect service idea.
4.Competitive price.

Product Description

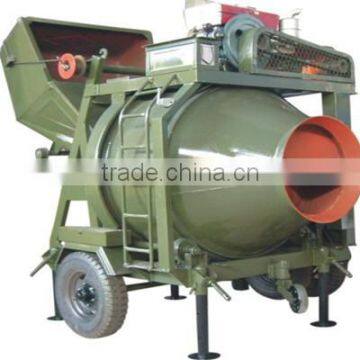

JZC350 type concrete mixer is self falling type double cone reversed discharging mobile type concrete mixer, mixing plastic and semi dry concrete. The mixing drum is to stir, reverse discharging, no tank mixing 350 liters (refers to concrete tamping concrete volume), not hours to produce 10~14 cubic meters. Suitable for general construction sites, roads, bridges and small concrete component factory. Fixed mixing, can be dug pit, so that the opening of the hopper is flush with the ground, feeding is convenient, greatly reduce the labor intensity.

Features

1.high output capacity

2. even mixing ,good mixing quality

3. compact structure

Data

Model	JZC350
Discharging Capacity (L)	350L
Charging Capacity (L)	560L
Production Capacity(m3/h)	10-14 m³/h
Drum rotating speed (r/min)	15.5 r/min
Max.aggregate size(mm)	60mm
Water feeding precision	≤2%
Mixing Power (kw)	5.5 kw
Hoisting motor(kw)	4.5 kw
Water pump motor(kw)	0.55kw
Max. dragging speed (km/h)	20 km/h
Dimension(L x W x H mm)	2766*2140*3000mm
Total weight (kg)	1950kg

Photos

Company Infor:

Jining Bafang Mining Machinery Co., Ltd is specialized in manufacturing mining machinery in China. We are committed to researching and developing all kinds of mining and stone processing equipment. Our main products include rock drills, guniting equipments, pumps, mining support equipments, mine car hardware tools, electrical equipments, fasteners and other related accessories

    Our products have been exported to more than 20 countries and regions, such as Brazil, Russia, Australia, Africa, South America and Middle East with our outstanding quality, competitive price and on-time considerate service. We have won a high reputation from our esteemed customers
