Surface Machine GD-20A/B Universal Cutter Grinder for Drill Mill Grinding Machine

Jining Bafang Mining Machinery Co., Ltd.

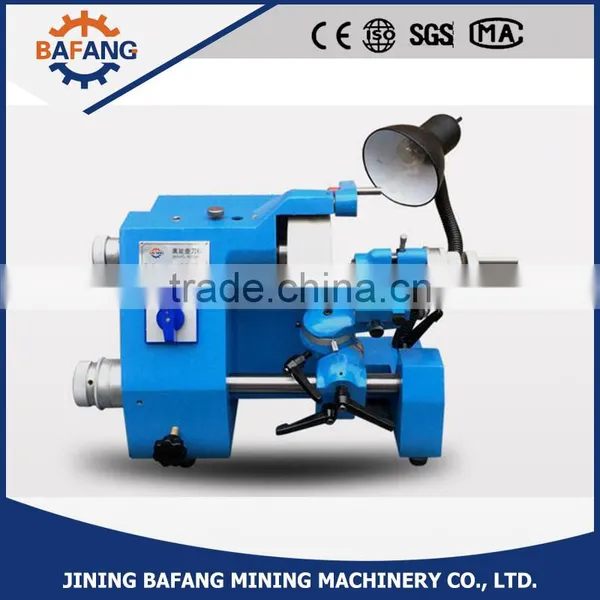

Surface Machine GD-20A/B Universal Cutter Grinder for Drill Mill Grinding Machine thumbnail-1
Surface Machine GD-20A/B Universal Cutter Grinder for Drill Mill Grinding Machine photo-1
US$ 200 - 450 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Universal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Universal
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length 10cm
Place of Origin Shandong, China
Brand Name Bafang
Model Number GD-20A/B model
Voltage 380V 220V
Power(W) 0.25KW
Dimension(L*W*H) 536*425*415mm
Weight 50kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

GD-20A/B universal cutter grinder is necessary equipment for computer engraving machine and Engraving Milling machine and CNC center,it is specially designed for sharpening various diameters,angles of carving knives,straight shank cutter,engraving cutter and so on,it is with good precision,no skill request.

Main Parameter:

Grinding wheel





Diameter

Φ100mm

Thickness

50mm

Hole diameter

Φ20mm

Spindle speed

5200rpm

Max.clamping diameter

Φ3-16mm

Longitudinal traver of index head carrier

140mm

Longitudinal adjustment travel of index head carrler

18mm

Spindle and wheel longltudinal adjustment travel

6mm

Taper angle range

0~180°

Negative taper angle range

0~52°

Relief angle range

0~44°

Motor





Power

0.25kw

Speed

2810rpm

Voltage Single-Phase

380v

Voltage Single-Phase

220v

Frequency

50Hz/60Hz

Gross weight

45kg

Packing dimensions

536*424*415mm

Standard Accessories







Tool

1 set

Diamond Pen 0.25 karat

1 pcs

lamp

1 set

Collet

3 pcs

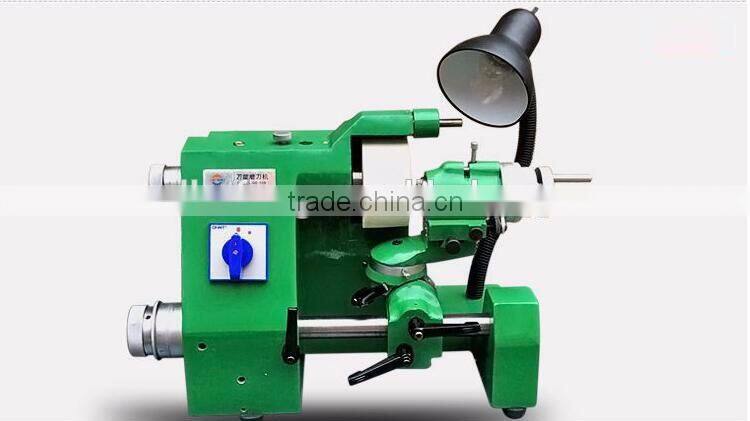

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

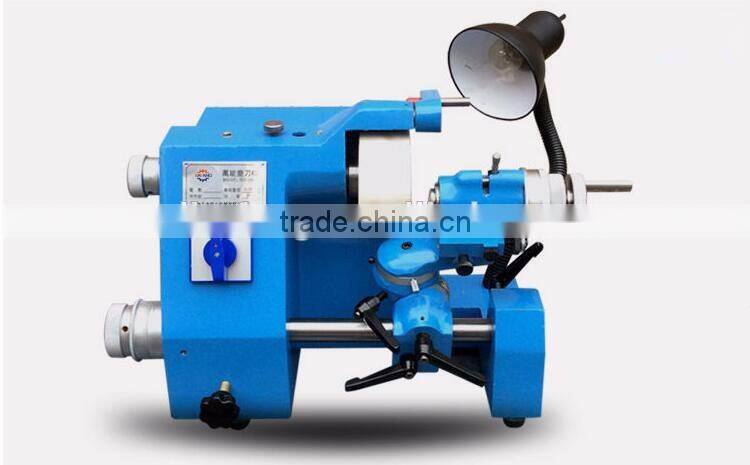

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

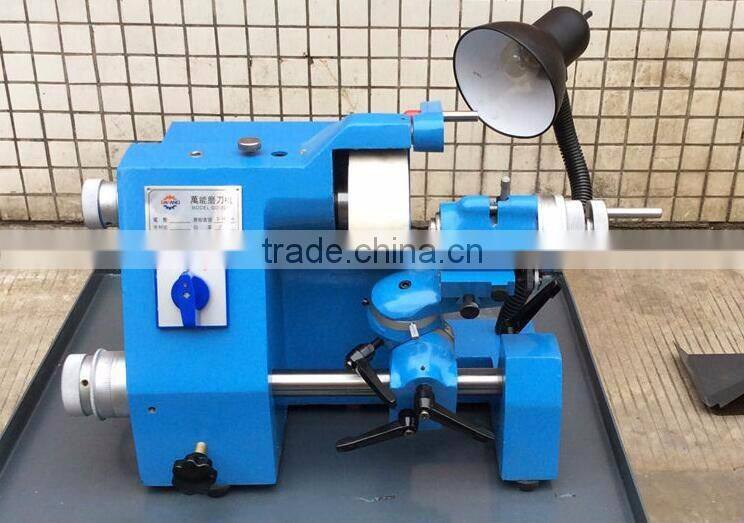

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

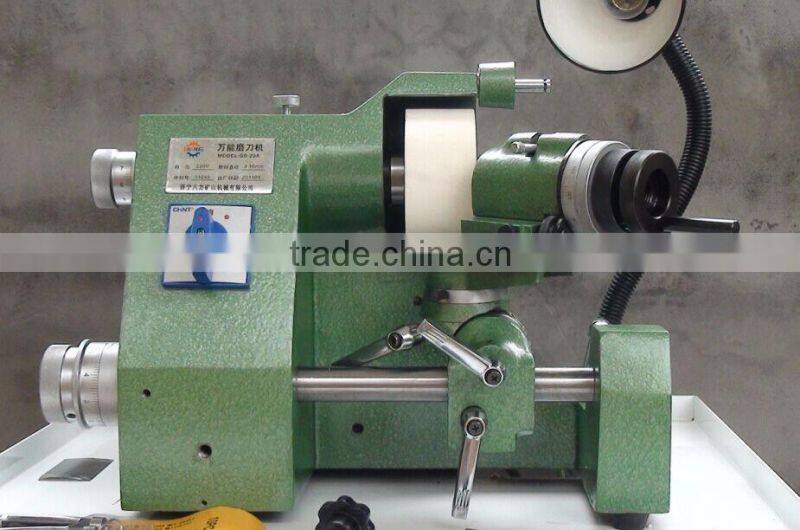

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine



Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine



Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine



Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machineSurface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine

Surface machine GD-20A/B universal cutter grinder for Drill Mill grinding machine
