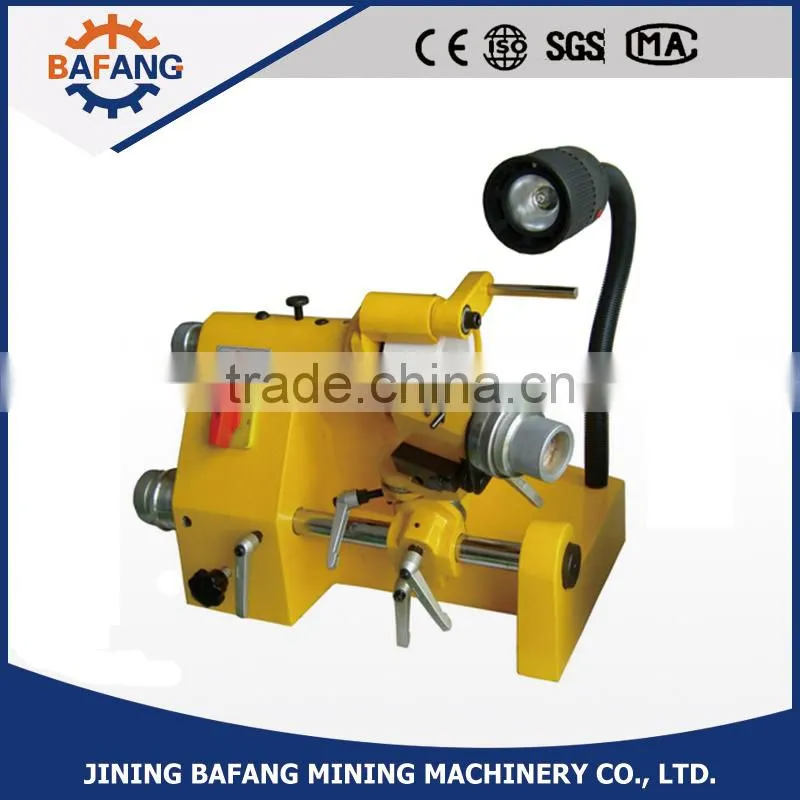

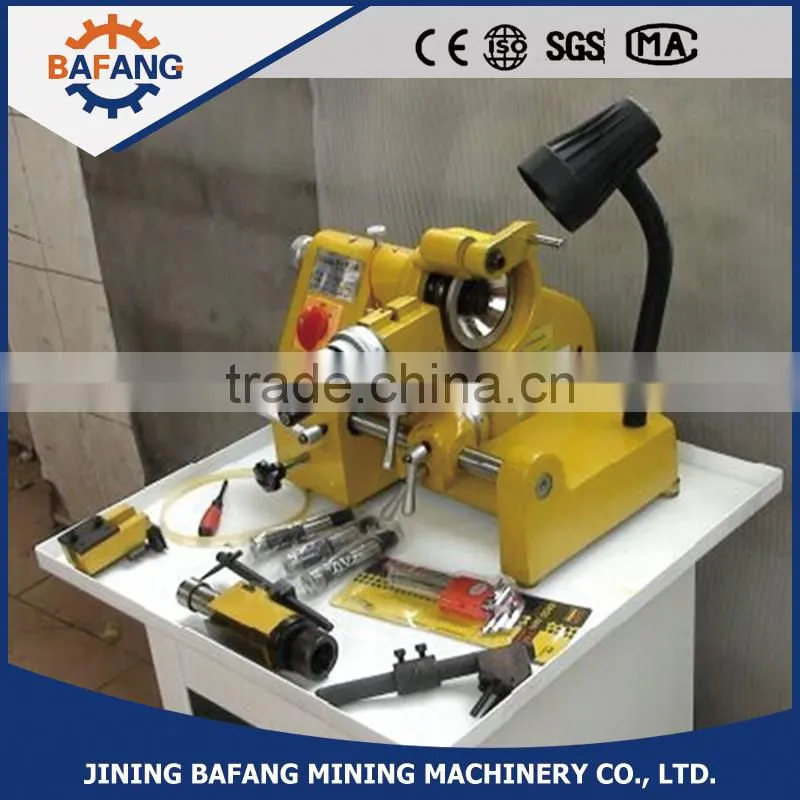

2017 Hot selling U3 Type Universal Tool and Cutter Grinder Grinding machine
It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiused cutters or negative taper angle of cutters.The universal index head is provided at 24 positions so that any particular angle or shape can be obtained,free 360 degree or 100 rotation is allowed for grinding End Mill.Twist Drill.Lather Tools,only replace the attachement to the index head without any complex setup.
Specification:
Wheel |
Diameter |
Φ100mm |
Thickness |
50mm |
|
Hole diameter |
Φ20mm |
|
Spindle speed |
5200rpm |
|
Max clamping diameter |
Φ3~28mm |
|
Longitudinal traver of index head carrier |
140mm |
|
Longitudinal adjustment travel of index head carrler |
180mm |
|
Spindle and wheel longltudinal adjustment travel |
600mm |
|
Taper angle range |
0~180° |
|
Negative taper angle range |
0~52° |
|
Relief angle range |
0~44° |
|
Motor |
Power |
0.55KW |
Speed |
5200rpm |
|
Voltage Single/Three-Phase |
220V/380V |
|
Frequency |
50Hz/60Hz |
|
Gross weight |
55kg |
|
Packing dimensions |
500*395*395mm |
|
Standard Accessories |
Belt |
1 pcs |
Tools |
1 set |
|
Diamond wheel 320# |
1 pcs |
|
Diamond pen |
1 pcs |
|
Collect 3.175.4.6mm |
3 pcs |
|
Lamp |
1 set |
|
