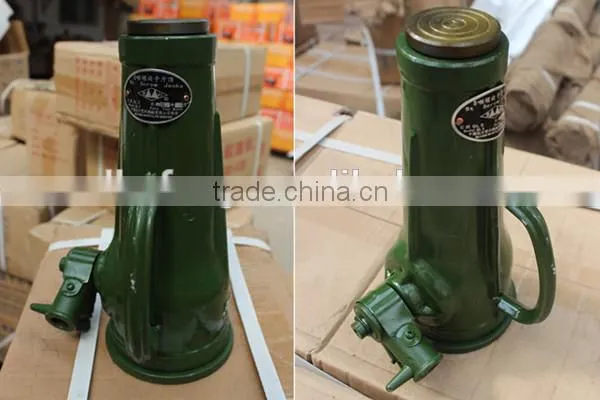

Mechanical screw jack1 small volume
2 light weight
3 easy to carry
This product is suitable for railway vehicle repair, mining, construction engineering support and
general weight lifting and down. Due to carry portable, easy to maintenance, the use of safe
and reliable, it is widely used in the liquidity of the lifting operation. Such as railway vehicle
replace shaft, steel beam structure installation support, hull keel or other heavy machines assembly,
car tyres and conversion and all heavy objects can be lifting safety and reliability of the products
to lifting purpose.
Specification
Type
| Bearing | Jack-UP | Lowest | Handle | Handle | Net Weight |
Pressure(ton)) | Height(mm) | Height(mm)) | Length(mm) | Operating Strength(N) | (Approximately)kg | |
QL3.2 | 3.2 | 110 | 220 | 500 | 100 | 6 |
QL 5 | 5 | 130 | 250 | 600 | 160 | 8 |
QL 8 | 8 | 140 | 260 | 800 | 200 | 9.5 |
QL 10 | 10 | 150 | 280 | 800 | 250 | 11 |
QL 16 | 16 | 180 | 320 | 1000 | 500 | 17 |
QL 20 | 20 | 180 | 325 | 1000 | 500 | 19 |
QL 25 | 25 | 130 | 275 | 1000 | 600 | 19 |
QL 30 | 30 | 200 | 400 | 1300 | 600 | 28 |
QL 32 | 32 | 200 | 400 | 1300 | 600 | 28 |
QL 40 | 40 | 200 | 405 | 1300 | 620 | 30 |
QL 50 | 50 | 250 | 452 | 1500 | 800 | 54 |
QL 100 | 100 | 200 | 452 | 1500 | 600 | 85 |
QLD 3.2 | 3.2 | 50 | 160 | 500 | 100 | 5 |
QLD 5 | 5 | 65 | 180 | 600 | 160 | 7 |
QLD 10 | 10 | 75 | 200 | 800 | 250 | 10 |
QLD 16 | 16 | 90 | 220 | 1000 | 400 | 15 |
QLD 32 | 32 | 150 | 320 | 1300 | 600 | 24 |
QLD 50 | 50 | 150 | 310 | 1500 | 800 | 40 |
QLG 20 | 20 | 300 | 445 | 1000 | 500 | 20 |
QLG 100 | 100 | 400 | 652 | 1500 | 600 | 105 |
