Home > Products > Lifting Equipment > MHC5T-50T horizontal types of hydraulic jack
MHC5T-50T horizontal types of hydraulic jack
- 30000 Set / Sets per Month
- Qingdao China
- T/T Credit Card
- cheap tap and die set metric screw thread taper
- custom rubber silicone suction cups
- High Quality Professional 6PCS Coarse Thread Screw Extractor Set
- Mini Electric Hand Drill Holder Suitable For Electric Drill Factory Direct Sale Good Price In Stock
- Solid Carbide Twist Drill
- China Good price manufacturer Professional PDC drill /Used for diamond diamond core drill bits
Product Details
Place of Origin: | Shandong, China | Brand Name: | bafang | Model Number: | MHC |
Type: | Hydraulic Jack | Certification: | ISO | Min Height: | 370 |
Max Height: | 528 | Capacity (Load): | 31-40T |
Product Description

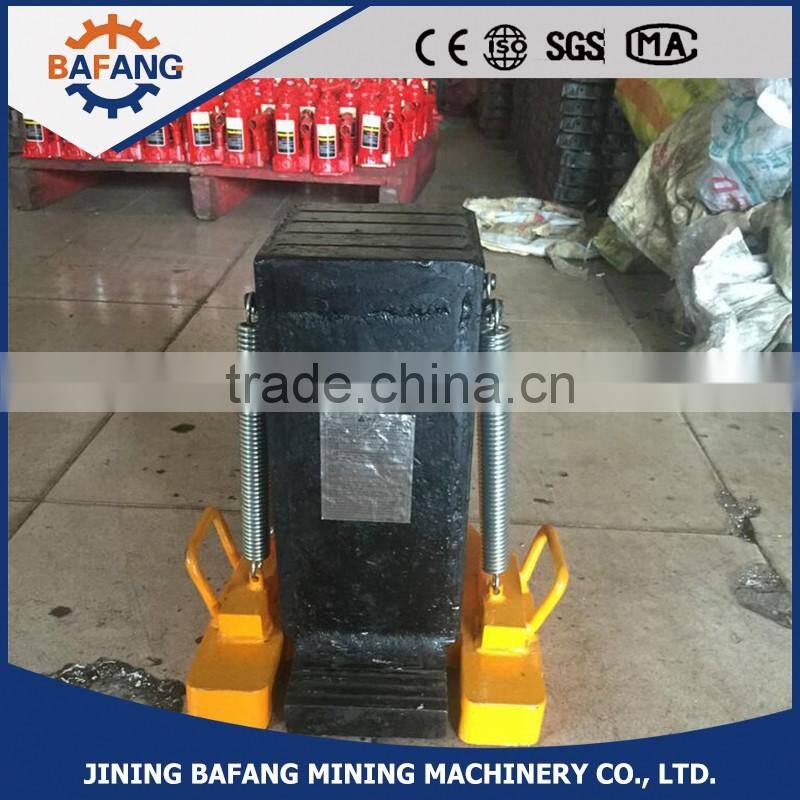

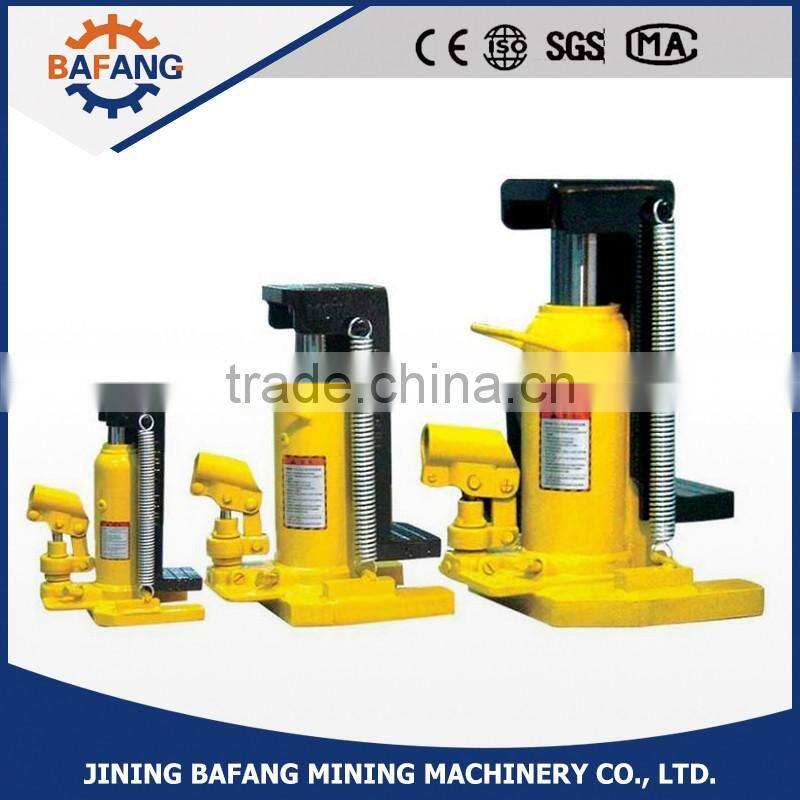

MHC5T-50T horizontal types of hydraulic jack
Description:
Widely used in machinery equipment, bridge construction, railway track of installation and maintenance, and transportation of heavy loading and unloading , automobile tractor repair,ect.
2 This series product is made of high quality steel, after heat treatment and welding, structure simple, easy operate , durable, high quality is stable, safe and reliable; Top and hook lifting combination, easy to low position operation, is a kind of widely used lifting tool.
3, This series product operating handle design for 180 degrees of rotation, according to different places, thus changing the Angle is more convenient to use.
Main Parameter:
Model | Capacity (T) | Base dimension (mm) | Hook Mini height (mm) | Lifting height (mm) | Rated capacity (T) | Weight (kg) | |
|
|
|
|
| TOP | HOOK |
|
MHC-5RS | 5 | 200*160 | 16 | 115 | 5 | 2.5 | 8.3 |
MHC-10RS | 10 | 250*200 | 20 | 148 | 10 | 5 | 24 |
MHC-20RS | 20 | 276*220 | 25 | 158 | 20 | 10 | 40 |
MHC-30RS | 30 | 295*245 | 30 | 158 | 30 | 15 | 55 |
MHC-50RS | 50 | 2820*340 | 50 | 158 | 50 | 25 | 75 |
