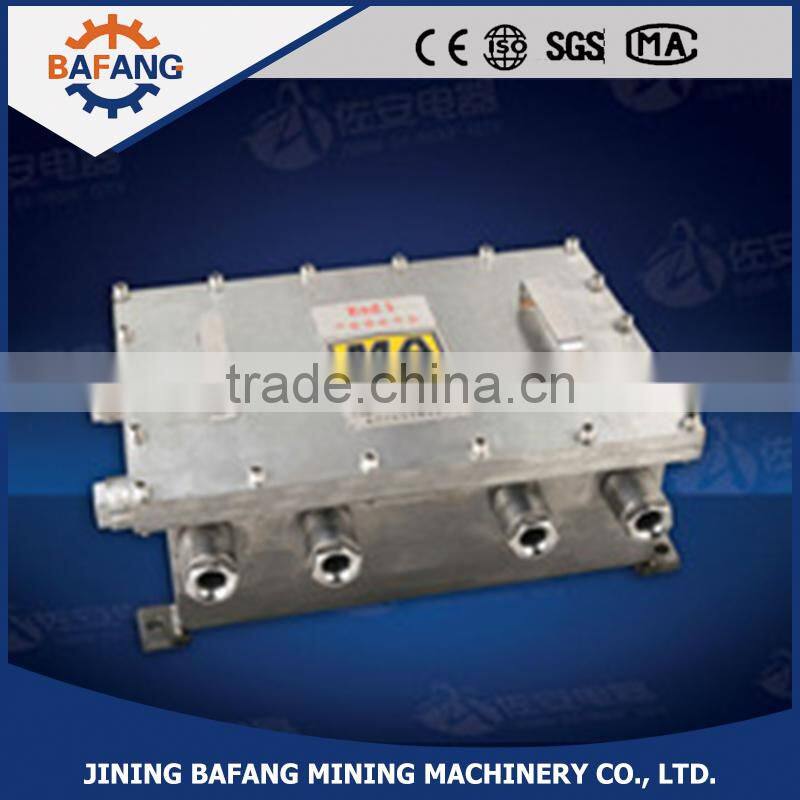

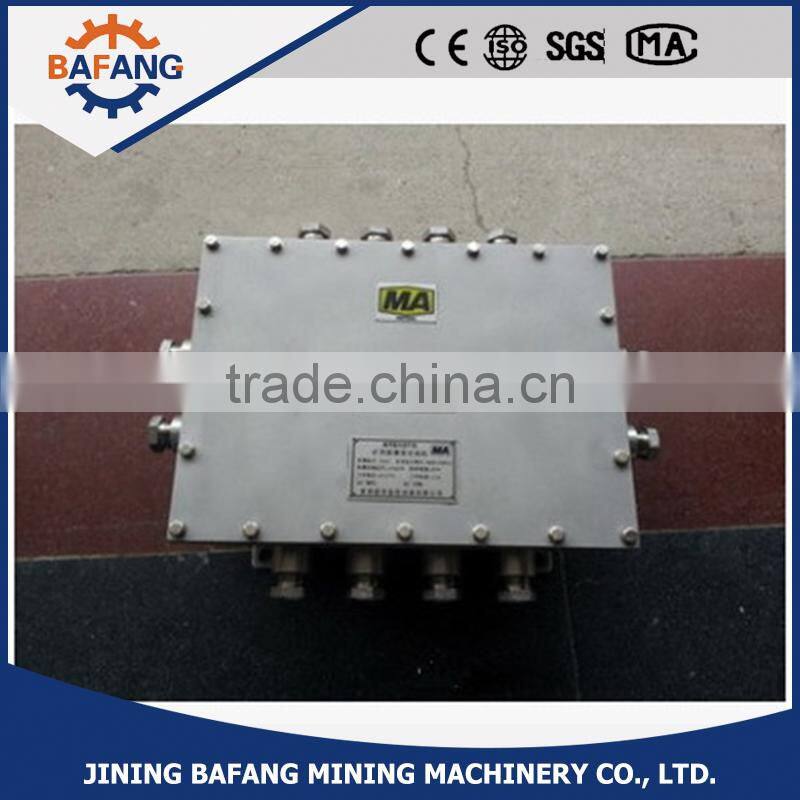

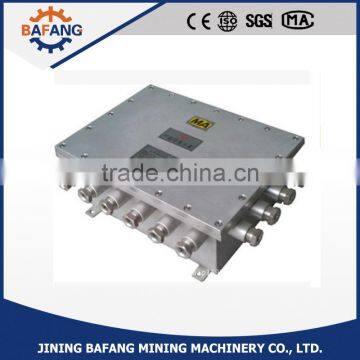

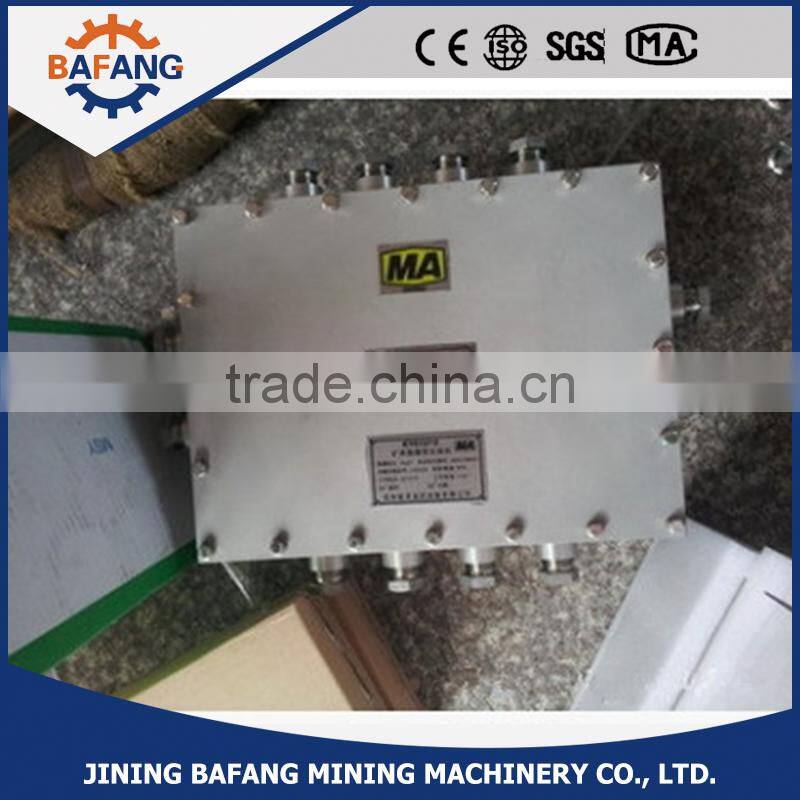

KTG121 MINING STAINLESS STEEL EXPLOSION-PROOFOPTICALTRANSCEIVER
| MECHANICAL |
| SUS304/316L stainless steel construction |
| 12 threaded holes |
| Overall dimension: 390x298x130mm, 15.4x11.7x5.1in |
| Weight: 20KG, 44LBS |
| Installation: on ceiling or on wall |
| ELECTRICAL |
| Working voltage: AC127V,50Hz |
| Input supply: ≤50VA |
| Video input: 8 channels 75Ω video signal |
| Optical access: ST |
| Working wave length: 1310nm, single module |
| Optical singal power: -8~ 0 DBM |
| Optical transmit distance: 20Km |
| ENVIRONMENT |
| Ambient temperature: 0°C~+40°C (32°F~104°F) |
| Atmospheric pressure : 80KPa~106Kpa |
| Relative Humidity: ≤95% (+25°c) |
| CERTIFICATIONS |
| Ex-proof marking: ExdI |
| ex-proof certification: 21020010 |
| MA certification: MHC100014 |
| Standards: GB3836-2000 Q/320412ZAF022-2009 |
After sale service & promise:
1. Supply oem & odm order, independent Q.C department, 3 times of quality checking,
2.100% percent of pass before shipping
3. One year of warranty, 0.1%-0.5% spare unit
4. IS09001, CNEX, MA, on progress of FCC &ATEX certification
Free & Easy, your best choice
Our advantage:
1. We can do the designs according to the customers’ requirement
2. We can offer you the high quality & reasonable price
3. We can offer you a good after-sell service
4. We have strong professional design team
5. Promptly delivery. Small order is welcome.
For more detailed specifications please feel free to contact with us
