Home > Products > Explosion Proof Electrical > 2016New wholesale hot sale air curtain industrial 1500mm air curtain

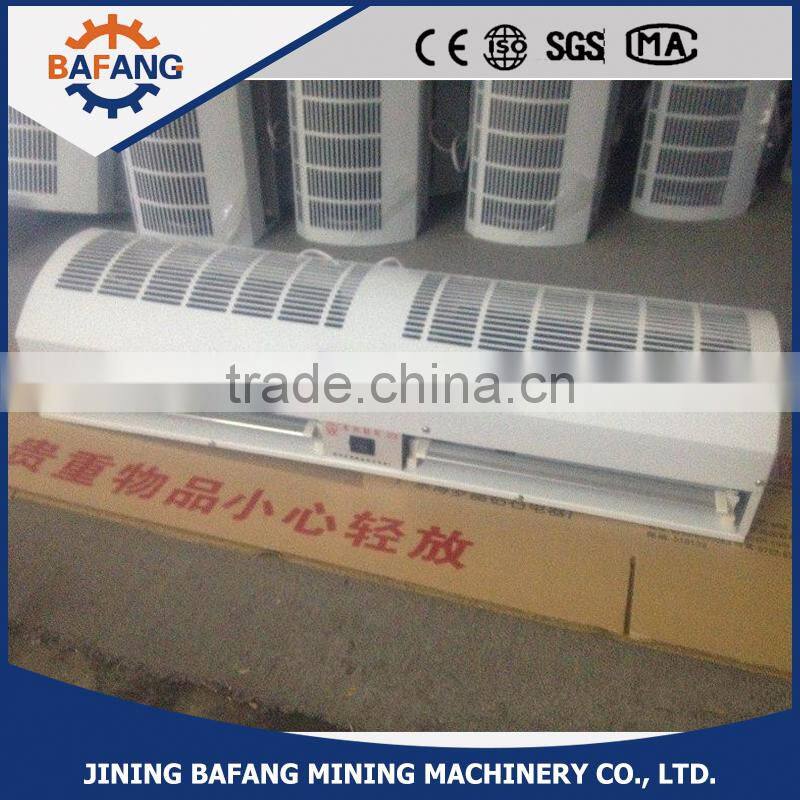

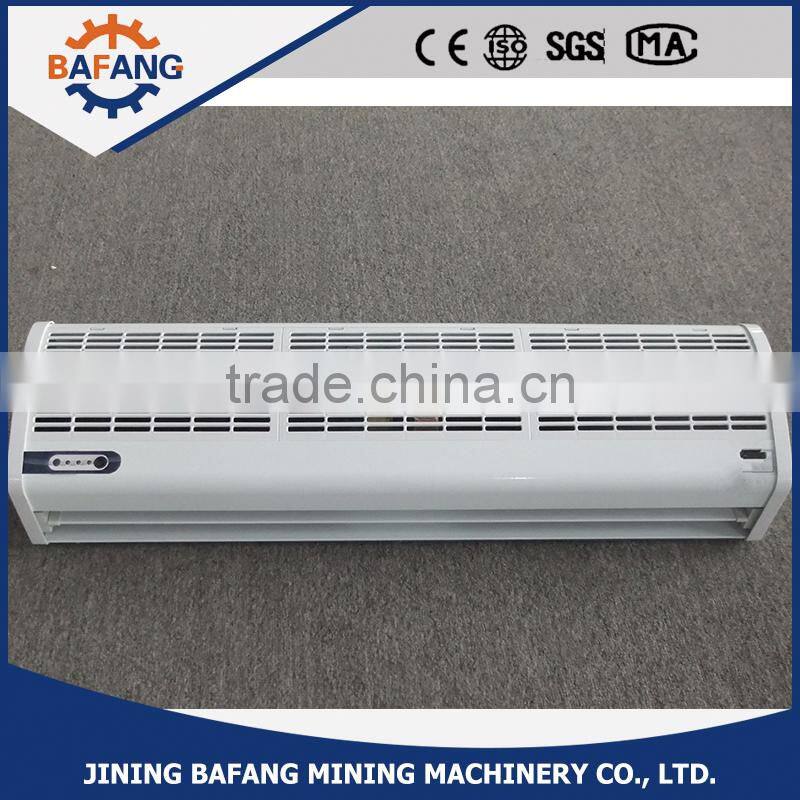

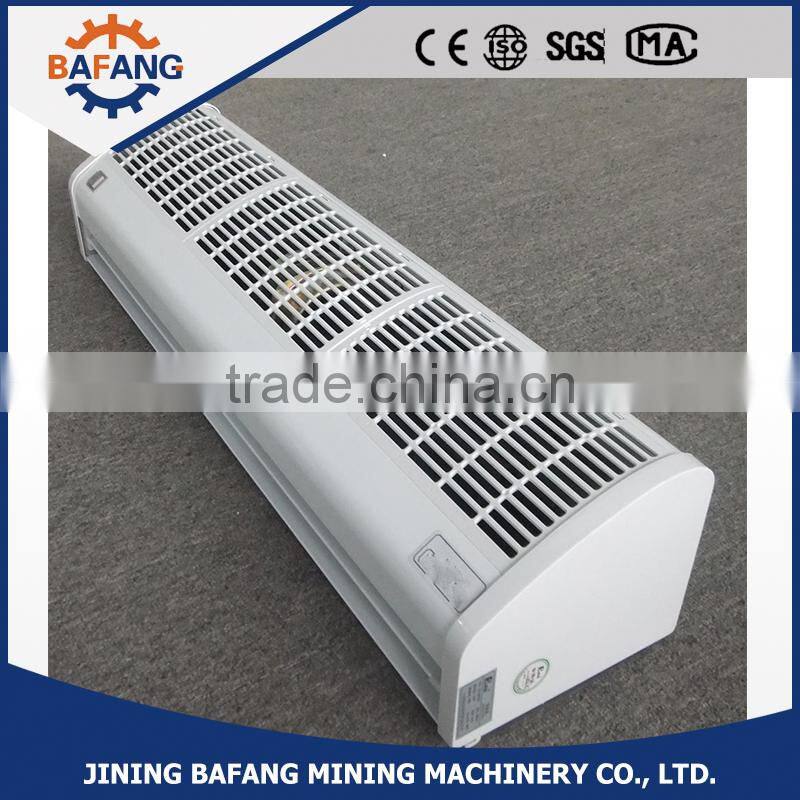

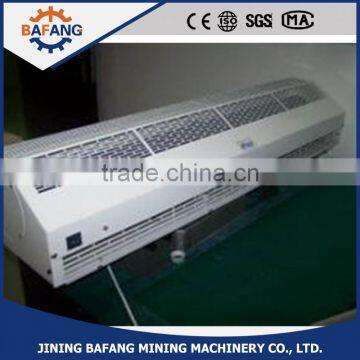

2016New wholesale hot sale air curtain industrial 1500mm air curtain
USD $99 - $300
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Qingdao port
- D/P D/A Credit Card
You May Like
-
The 1200mm ordinary air curtain electric cross flow air cutain
-
China manufacturer heat blowing supermarket cross flow Air Curtain
-
High quality industrial air curtain made in China
-
Three phase motor heating blowing Supermarket cross flow Air Curtain
-
Varies sizes common blowing air curtain the ventilation fan air curtain AC220V/380V
-
Factory direct sale cheap electric Air Curtain,Cooling Heating Air Curtain
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | Bafang01 | Type | Other |
Product Description
2016New wholesale hot sale air curtain industrial 1500mm air curtain
- All metal spraying with better fire prevention, corrosion resistance performance;
- New ventilation design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;
- Multiple control methods, such as boat switch key modulation, infrared remote control, microcomputer control and multiple control modes are available to satisfy different requirements at different places;
- Turbine impeller injection molded by ABS and glass fiber injection is characterized of high intensity and low noise;
- The unequal pitch and multi-blade rotor design is characterized of lower noise and smaller vibration;
- 100% pure copper rose motor at low temperature to ensure consistent running for 5000hr without failure;
- Professional air duct design can realize more silent effect and superior performance of the product;
- High-quality ball bearing to ensure motor running more smoothly and silent;
- Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;
- Start up at 100V ultra-low voltage which is more convenient in operation;
- Enclosure class IP44
- Insulation class E
Performance Data
| Model | Specification (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Installation Height(m) | Air Speed (m/s) | Airflow CMH CFM | Noise (dB) | Dimension (mm) | Net Weight (Kg) |
| FM3509C | 900 | 220 | 50 | 132 | 3.0-3.5 | 12 | 2320 1366 | 54 | 900*175*207 | 11 |
| FM3512C | 1200 | 220 | 50 | 176 | 3.0-3.5 | 12 | 3030 1784 | 56 | 1200*175*207 | 13 |
| FM3515C | 1500 | 220 | 50 | 235 | 3.0-3.5 | 12 | 3890 2291 | 58 | 1500*175*207 | 16.5 |
| FM3509C-1Y | 900 | 220 | 50 | 132 | 3.0-3.5 | 12 | 2320 1366 | 54 | 900*175*207 | 11 |
| FM3512C-1Y | 1200 | 220 | 50 | 176 | 3.0-3.5 | 12 | 3030 1784 | 56 | 1200*175*207 | 13 |
| FM3515C-1Y | 1500 | 220 | 50 | 235 | 3.0-3.5 | 12 | 3890 2291 | 58 | 1500*175*207 | 16.5 |
For more detailed specifications please feel free to contact with us
Jining Bafang Mining Machinery Co.,Ltd
Name:Mavis Zhang
Telphone:86-537-2164618 +13012657265
Skype:live:2050719885
QQ:3248433951
Trademanager:cn1510988628
E-mail:mavis(a)sdbafang.com
