Home > Products > Winding Machines > CREDIT OCEAN high speed yarn cone winder
CREDIT OCEAN high speed yarn cone winder
- 2147483647 Set / Sets per Month
- NINGBO
- T/T
Product Details
Condition: | New | Application: | winding sewing thread, embroidery thread, nylon thread etc. | Automatic Grade: | Semi-Automatic |
Production Capacity: | HIGH SPEED | Brand Name: | CREDIT OCEAN | Model Number: | CO-0604 |
Voltage: | 220V | Power(W): | 1.5kW | Dimension(L*W*H): | 2*0.88*1.5m |
Weight: | 500kg | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

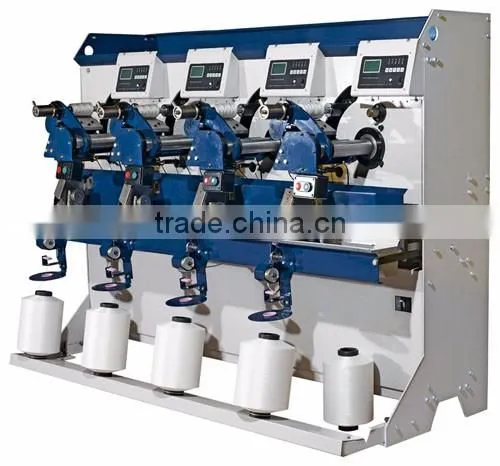

CREDIT OCEAN high speed yarn cone winder
high speed winder is applicable for winding sewing thread, embroidery thread, nylon thread etc. yarn cone winder features availability of computer based separate control of each single spindle, a frequency change and slotted spool yarn guide device, an electro magnetic tension force control system, a pump based cycling type oiling device, etc. Characteristics of a good shape formation, high efficiency, easy operation, assured safety and reliability and broad applicability etc.. Please don't hesitant to contact us for more of your questions and we'll offer the competitive price with good quality to you!
Model | CO0604-A | CO0604-H | CO0604-Y |
Shape | Horn-type | Column-shaped | Cone-type |
Angle of tube | 2°20’ ~ 5°57’ | 0° | 0° ~ 2°20’ |
Max outer diameter | diameter 115 | ||
No. of spindles | 4 | ||
ding speed | 800m/min | ||
No.of pattern back | 3-4 | ||
Total motor power | 1.5kw | ||
Measurement | 2*0.88*1.5m | ||
N.WT | 500KG |
Why choose us
Credit Ocean is started in 2004 year and the centre of expertise and capacity. And we provide of needle loom, crochet machines, warping machines, electronic jacquard needle loom machines, shoelace and bag lace tipping machines, high speed braiding machine and high speed cord knitting machine etc.
Credit ocean supply of a wide range of machinery for many applications
Credit Ocean provide high quality machines
Credit ocean service quality
Credit Ocean have well experienced team
Credit ocean persist in the principle of “credit-keep promising,quality-keep upgrading,service-keep improving”.
Services
1. We offer best after-sales service for customers.
2. Engineers available to solve any problem in need.
3. We help order spare parts quickly and correctly.
Don't hesitate to send us inquiry; we'll give you feedback within 24 hours!
Contact us
CREDIT OCEAN INDUSTRY CO., .LIMITED
NINGBO JIANGDONG JIUZE MACHINERY & ELECTRON CO.,LTD.
Add:11-14 block 1,No.456 Xingning Road, Ningbo. China 315040
Tel: 86-574-27851851
Fax: 86-574-27851850
Mobile: 13081939567
Website:
