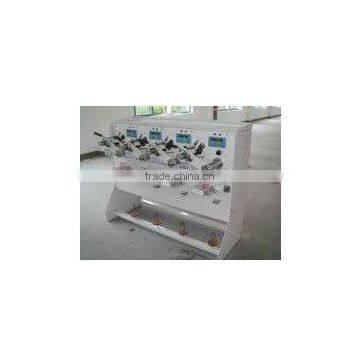

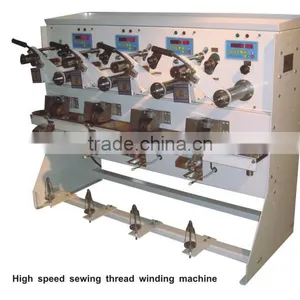

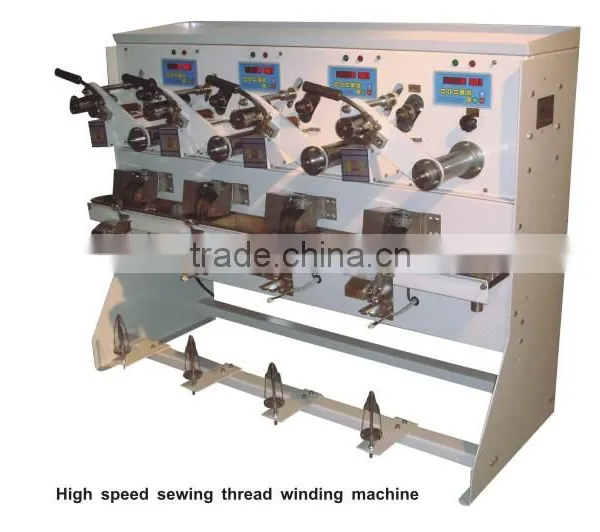

Help CenterHigh Speed Sewing Thread Winding Machine
Related Products
FC Series thread winding machine is a new product for thread-making field.
This machine can be used to wind sewing thread, emroidery thread and nylon thread, etc.
It is equipped with computer auto control system, frequency ocntrol, grooved drum style wire, magnetic tension control, circulating pumping sets of oil pumps, With high efficiency, making thread in a good shape, this machine is secure, easy to operater and can be abroad applied. The wind speed can be as fast as 1000meter/minute.

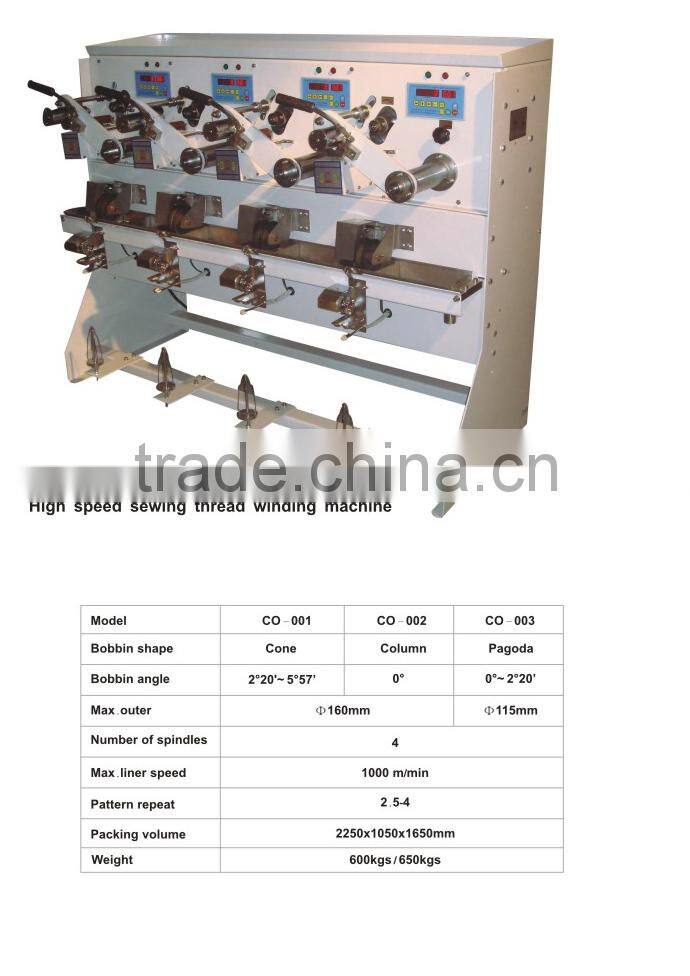

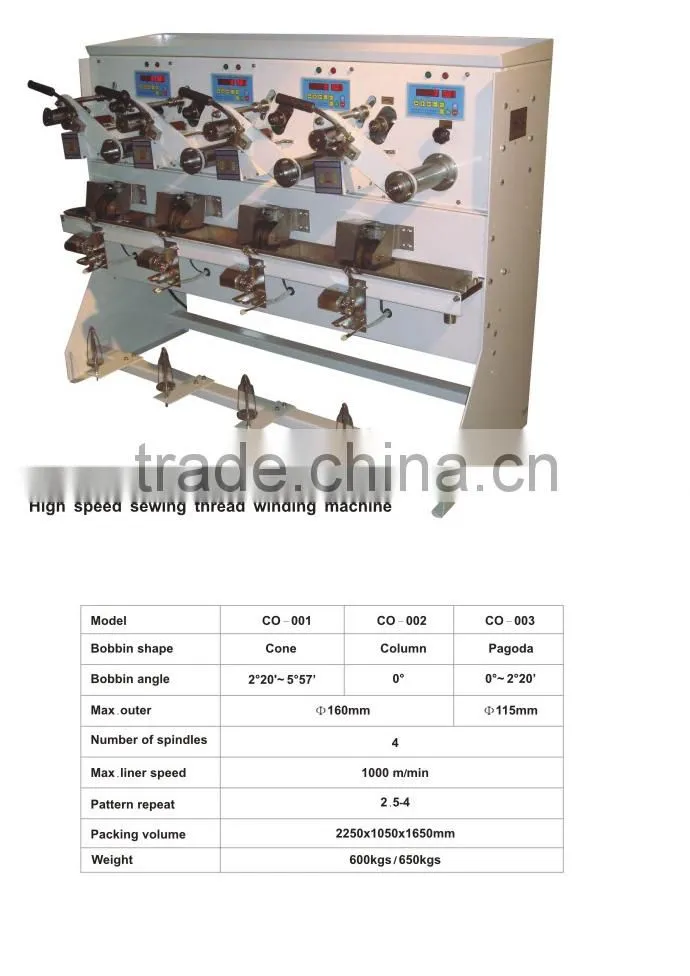

MAIN TECHNICAL AND ECONOMIC SPECIFICATION:
Model | FC-001 | FC-002 | FC-003 |
Building | Cone | Columnar | Pagoda |
Bobbin angle | 2o 20~ 5o 57 | 0o | 0o - 2o 20 |
MAX. Outer | φ160mm | φ115 mm | |
Number of spindles | 4 | ||
MAX. linear speed | 1000m/min | ||
Pattern repeat | 2.5-4 | ||
Package volume | 2250(L)x1050(W)x1650(H)mm | ||
Net. Weight | 600kg | ||
