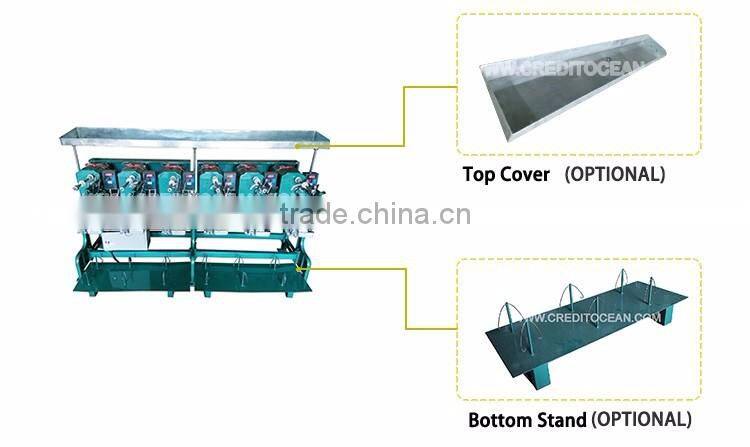

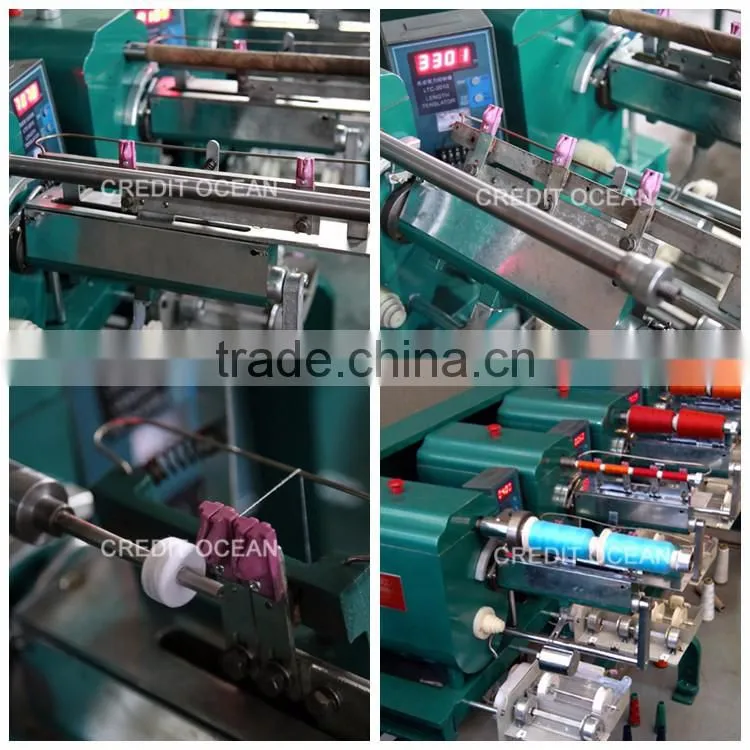

High speed sewing thread winding machine
CO Series thread winding machine is a new product for thread-making field.
This machine can be used to wind sewing thread, embroidery thread and nylon thread, etc.

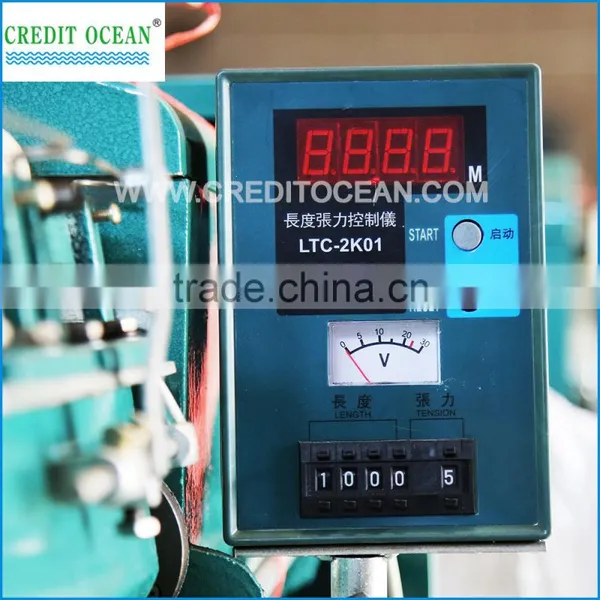

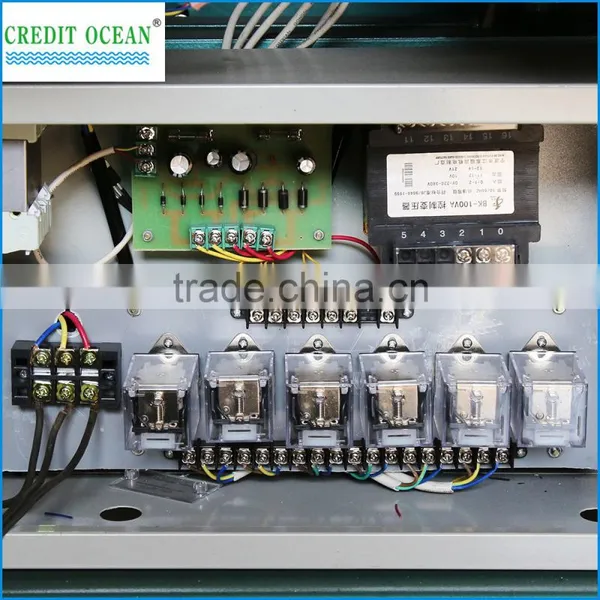

It is equipped with computer auto control system, frequency control, grooved drum style wire, magnetic tension control, circulating pumping sets of oil pumps, With high efficiency, making thread in a good shape, this machine is secure, easy to operator and can be abroad applied. The wind speed can be as fast as 1000meter/minute.
MAIN TECHNICAL AND ECONOMIC SPECIFICATION:
Model | CO-001 | CO-002 | CO-003 |
Building | Cone | Columnar | Pagoda |
Bobbin angle | 2o 20~ 5o 57 | 0o | 0o - 2o 20 |
MAX. Outer | φ160mm | φ115 mm | |
Number of spindles | 4 | ||
MAX. linear speed | 1000m/min | ||
Pattern repeat | 2.5-4 | ||
Package volume | 2250(L)x1050(W)x1650(H)mm | ||
Net. Weight | 600kg | ||
Why choose us
Credit Ocean is started in 2004 year and the centre of expertise and capacity. And we provide of needle loom, crochet machines, warping machines, electronic jacquard needle loom machines, shoelace and bag lace tipping machines, high speed braiding machine and high speed cord knitting machine etc.
Credit ocean supply of a wide range of machinery for many applications
Credit Ocean provide high quality machines
Credit ocean service quality
Credit Ocean have well experienced team
Credit ocean persist in the principle of “credit-keep promising,quality-keep upgrading,service-keep improving”.
Services
1. We offer best after-sales service for customers.
2. Engineers available to solve any problem in need.
3. We help order spare parts quickly and correctly.
Don't hesitate to send us inquiry; we'll give you feedback within 24 hours!
