Specifications

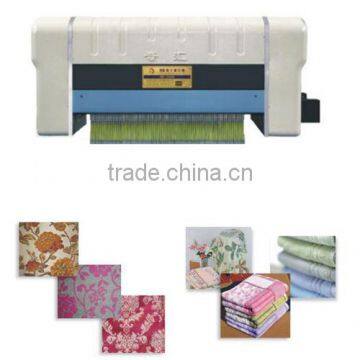

Electronic jacquard series of 1536 Model, 2688 Model, 5376 Model, 6144 Model, adopt automatic needle selection...
Electronic jacquard series of 1536 Model, 2688 Model, 5376 Model, 6144 Model, adopt automatic needle selection, with a fine integration of CAD pattern design system and computer control system and weaving machines.
It is a matured product and is the prevailing product in market now.
This model machines are suitable for all jacquard-weaving applications such as Silk ties, Terry, Furnishings, Apparel, and Labels.
Main Technical Parameter
NO. |
Item |
Parameter |
1 |
Shedding |
Double lift shed, clean up and down |
2 |
Range of Shed size |
55-110mm(adjustable) |
3 |
Loom speed |
200-450 shuttle/min |
4 |
Hook numbers |
1536/2688/6144 Hooks, Can be equipped the number of hooks requested by customers |
5 |
Drive Motion |
cardan shaft and full-closed helix-bevel-gear box |
Machine Dimension
Model |
Lengthmm |
Widthmm |
Heightmm |
Weightkg |
QH1536A |
1580 |
1480 |
1140 |
1500 |
QH2688A |
2224 |
1480 |
1140 |
1900 |
QH6144A |
2472 |
1870 |
1140 |
3600 |
