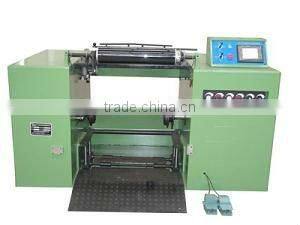

CO21 Microcomputer Control Warping Machine
- 2000 Set / Sets per Month
- NINGBO
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | creditocean | Model Number: | COW 450/AP |
Machine Type: | Braiding Machine | Product: | Lace | Material Capabilities: | Yarn |
Condition: | New |
Product Description
Specifications
Elastic warping machineOptimally and flexibly used in the warping of various kinds of ammonia-chartered and root-chartered yar
Technical parameters:
Line Speed | 0~600m/min |
Max. Tension of line | 400N |
Brake Torque | 200NM |
Up and Down of Beam | Pneumatic control |
Tight and release of Beam | Pneumatic control |
Diameter of Speed Roller | 80mm |
Power of Main Motor | 5.5kw |
Control type of Main Motor | Converter Control |
Monitoring Way | Converter real-time monitoring |
Pressure of Pneumatic source | 4bar |
H21 warping machine is suitable for Φ21”×21” and Φ17”×14” beam.And Φ500x600mm beam
Technical specification:
The main motor is controlled by converter. The constant and reliable digital pulse close ring guarantees the speed fast or slow is stable.
The bracket movement of beam is controlled by pneumatic, and its position is accuracy controlled by the operator, which select the different position according to beam's diameter.
The tail bracket is controlled by pneumatic, and the shaft adepts centre fixing shaft head. These two features make the damage to inner beam caused by the shift lower down to the minimum.
The main brake and the roller brake adepts electronic disc brake. And the braking force is contorlled by electronic regulator. Front and rear brake synchronization
The reed motors of width direction and sides direction adopt AC small motor.which are simple and easy to operate.The starching plank adopt manual control.
