Credit Ocean aluminium beam Warping machines for weaving looms
1 COW 450/AP warping machines (non-elastic )
2 Rubber warping machines (elastic)

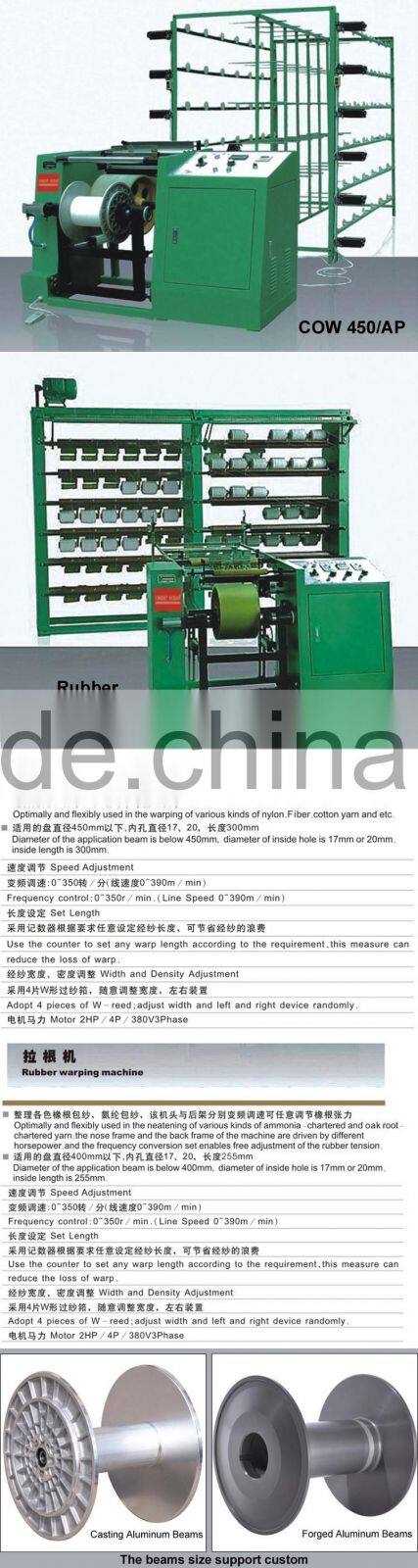

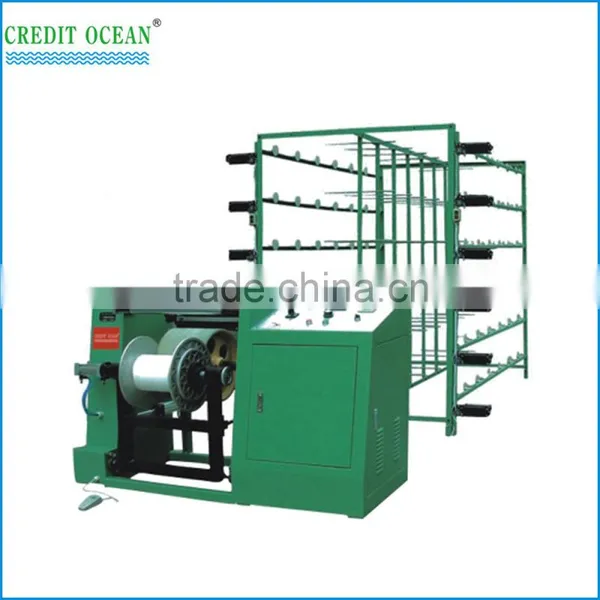

COW 450/AP yarn Beam Warping Machines
Optimally and flexibly used in the warping of various kinds of nylon, fiber, cotton yarn and etc.
Diameter of the application beam is below 450mm, diameter of inside hole is 17mm or 20mm,
inside length is 30mm.
Speed adjustment | Frequency speed | 0~350r/min |
Line speed | 0~390m/min | |
Set length | Use the counter to set warp length according to the requirement , this measure can reduce the loss of warp. | |
Width and density adjustment | Adopt 4 pieces f W-reed | Adjust width and left and right device randomly |
Motor | 2HP/4P/380V3Phase | |

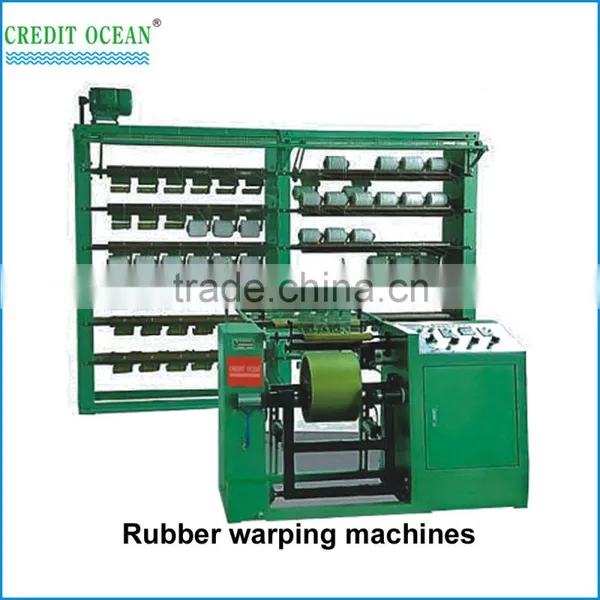

Rubber warping machines
Optimally and flexibly used in the neatening of various kinds of ammonia-chartered and oak
root-chartered yarn; the nose frame and the back frame of the machine are driven by different
horsepower and the frequency conversion set enables free adjustment of the rubber tension.
Diameter of the application beam is below 400mm, diameter of inside hole is 17mm or 20mm,
inside length is 255mm.
Speed adjustment | Frequency control | 0~350r/min |
line speed | 0~390m/min | |
Set length | Use the counter to set any warp length according to the requirement , this measure can reduce the loss of warp. | |
Width and density adjustment | Adopt 4 pieces of W-reed | adjust width and left and right device randomly |
Motor | 2HP/4P/380V3Phase | |

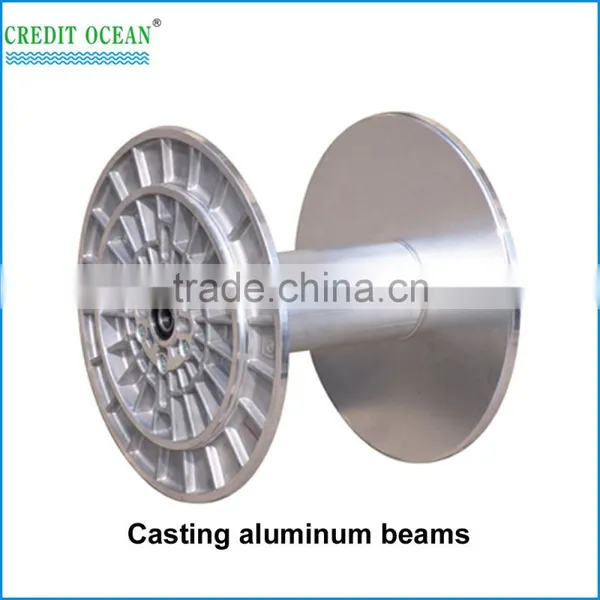

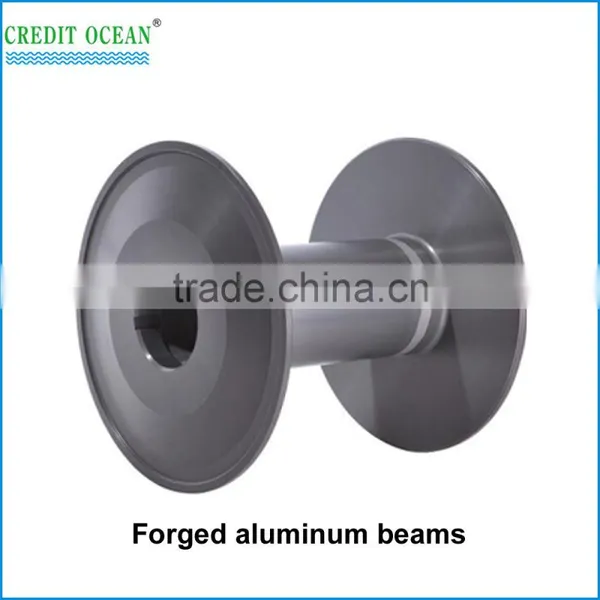

We have different kinds of aluminum warp beams for you ,
and the size support custom !
1.What's the application of beam diameter?
Dimeter of the application beam is below 450mm,diameter of inside hole is 17mm or 20mm,inside length is 300mm.
2.How to set the warp length?
Use the counter to set any warp length according to the requirement,this measure can reduce the loss of warp.
3.Do you have any protection for the yarn breaking?
Individual break stop for each yarn at the creel.
Why choose us

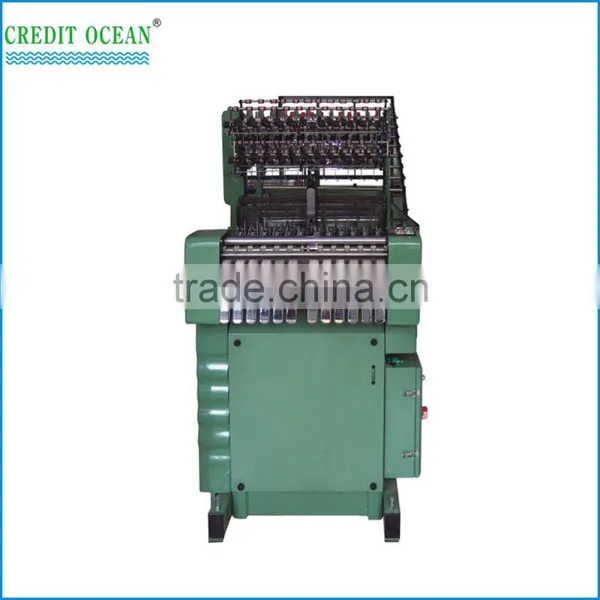

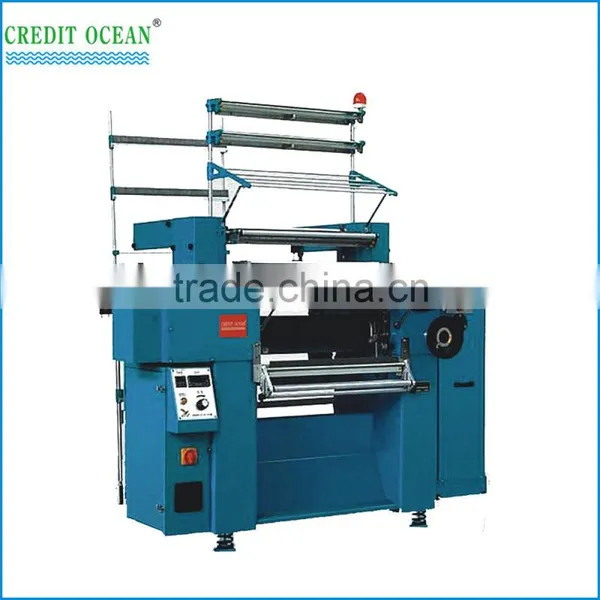

Credit Ocean is started in 2004 year and the centre of expertise and capacity. And we provide of needle loom, crochet machines, warping machines, electronic jacquard needle loom machines, shoelace and bag lace tipping machines, high speed braiding machine and high speed cord knitting machine etc.
Credit ocean supply of a wide range of machinery for many applications
Credit Ocean provide high quality machines
Credit ocean high- quality service
Credit Ocean have well experienced team
Credit ocean persist in the principle of “credit-keep promising,quality-keep upgrading,service-keep improving”.
