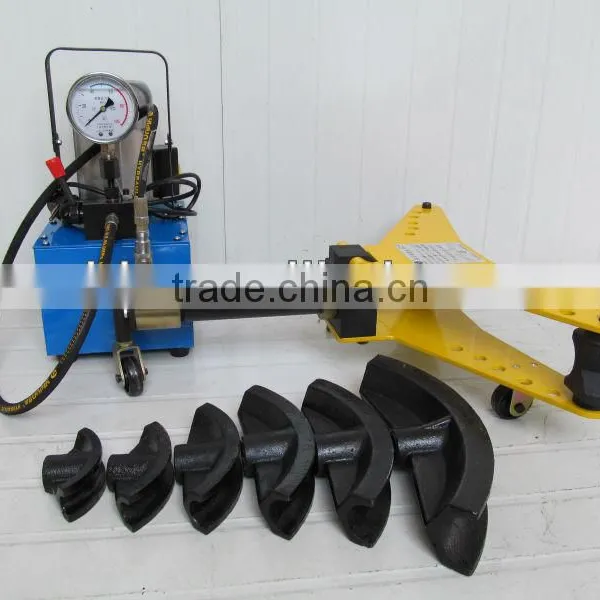

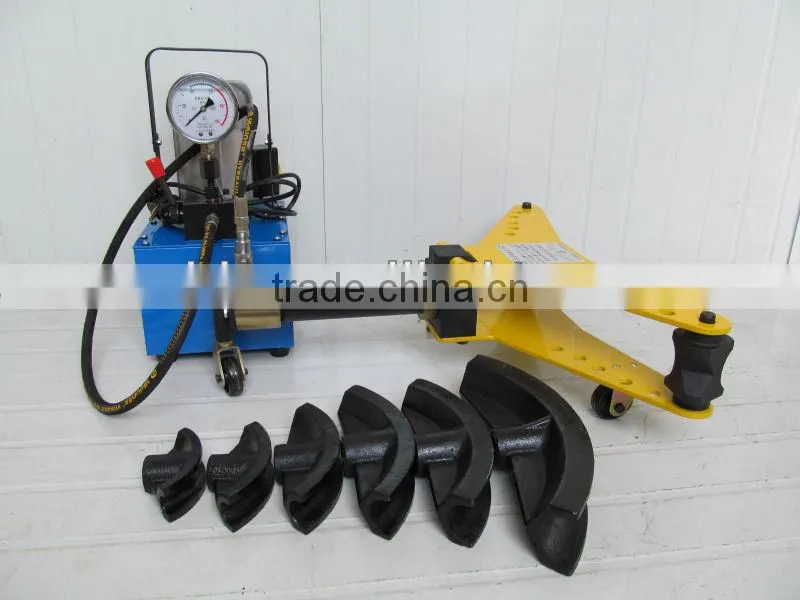

Help CenterWooden Packing Bend Pipe Machine BLT/DY-3W
Related Products
-
Latest-developed Tube Bender Tools BLT/DY-3WUS$ 452 - 452MOQ: 20 Pieces -
Copper Hydraulic Pipe Lending BLT/DY-4WUS$ 565 - 565MOQ: 20 Pieces
-
Manual Hydraulic Pipe Bender Machine BLT-2W/ 2.75-3.5/ 2" ODUS$ 119 - 119MOQ: 20 Pieces
-
2" Manual Hydraulic Pipe Bender Machine BLT-2WUS$ 119 - 123MOQ: 20 Pieces
-
3" 0-59 Mpa Manual Pipe Bender BLT-3W/pipe Thickness 2.75-5mmUS$ 234 - 240MOQ: 50 Pieces
bend pipe machine
1.Perfectly complete pre-bending,rolled-up,roll calibrate.
2.Working principle: two down rollers as main driving roller,or all three rollers as main driving roller,with upper roller fixed and two down rollers do up-and-town movement around one fixed center
3.Well hydraulic control,displacement liquid-crystal display with accuracy+_0.1mm
4.The two touch steel stick can permit the good finishing quality of asymmetric plate section bending
5.Advanced and compact structure with full function.
6.The machine head can turn over horizontally or vertically.
Technical parameters
MODEL |
capacity |
Max working pressure |
Bending angle |
|
Outside diameter(CM) |
Wall thickness(MM) |
|||
|
BLT/DY-2W
|
21.3-60MM |
2.75-4.5 |
63MPa |
∏/2≤a<∏ |
|
BLT/DY-3W
|
21.3-88.5MM |
2.75-5 |
63MPa |
∏/2≤a<∏ |
|
BLT/DY-4W
|
21.3-108MM |
2.75-6 |
63MPa |
∏/2≤a<∏ |
Shangyu City Bright Machinery Manufacturing Co.,Ltd(The former name is Yuyao City Weiye Machine Equipment Manufactur) is located in Wei Jiaqiao,
Shangyu. Zhejiang Province.
Our company founded in 2004, specialized in manufacturing and selling all kinds pipeline tools,
such as Hydraulic test pump, Hole machine, Cutting machine and Sprayer machine etc.
Our products export all over the world, especially in Europe, Mid East, Southeast Asia etc. and it
enjoys high reputation in the market because of high quality and low price.
The color could be designed by yourself, the same as your logo.
We will do our best to get your satisfaction.
