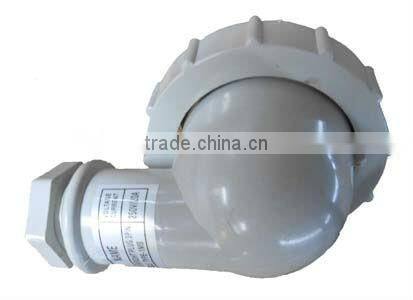

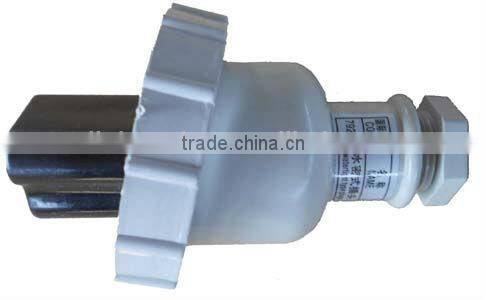

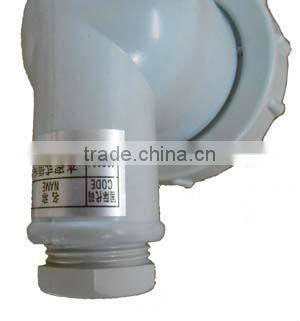

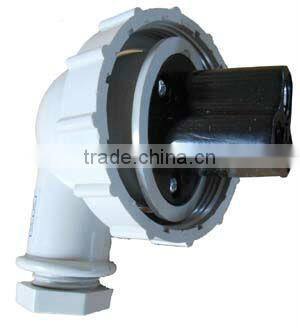

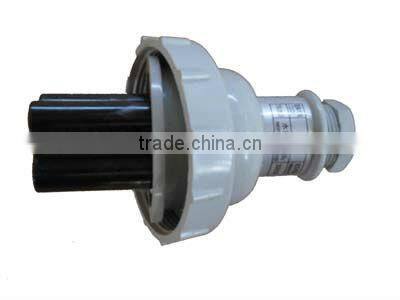

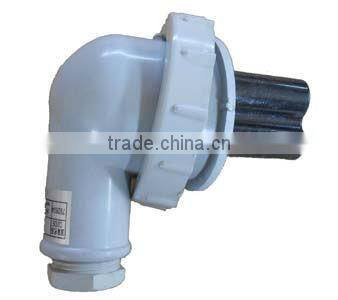

Watertight Plugs & Receptacles Synthetic Resin
- Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | All-K Marine or OEM | |
| Application | Other, Marine |
Product Description
Specifications
Watertight type plug and receptacle with earthing contact for use on the circuits of lights and small electric appliances rateWatertight Plugs & Receptacles Synthetic Resin
IMPA Code : 79 28 01 - 79 28 04, 79 28 06 - 79 28 08
Watertight type plug and receptacle with earthing contact for use on the circuits of lights and small electric appliances rated 250v or less.Synthetic resin made body will be furnished unless otherwise specified for materials such as cast irom or brass.
| IMPA Code | Type | Body Material | No. of Pin | Rated Capacity | |
| 792801 | 1MA | Straight Angle | Synthetic Resin | 3 | 250V 20 Amp. |
| 792802 | 1MB | ||||
| 792803 | 2MA | Straight Angle | Synthetic Resin | 4 | 250V 20 Amp. |
| 792804 | 2MB | ||||
Note: M denotes that the body is made of synthetic resin.
A denotes straight plug.
B denotes angle plug.
| IMPA Code | Type | Body Material | Switch | No.of Pin | Rated Capacity |
| 792806 | 1M | Synthetic Resin | Without | 3 | 250V 15 Amp |
| 792807 | 2M | 4 | |||
| 792808 | S1MR | With | 3 | 125V-DC 5Amp. 125V-AC 10Amp. 250V-DC 2Amp 250V-AC 5Amp |
Note: M denotes that the body is made of synthetic resin.
S denotes that receptacle with switch.
R denotes with the internal switch of rotary type.
