1.In cargo ships of 1,000 gross tons or more2.the number of non-perishable fire hoses to be provided shall be one for each 30

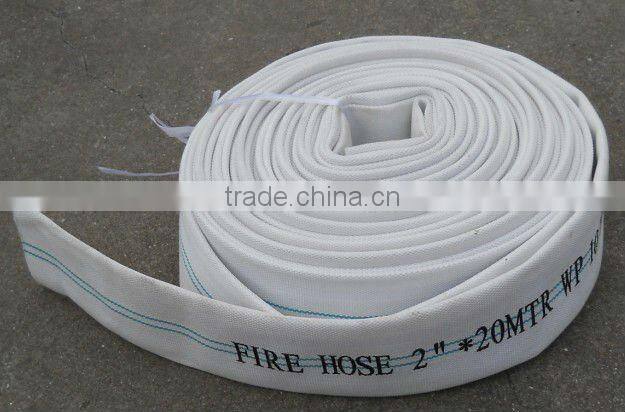

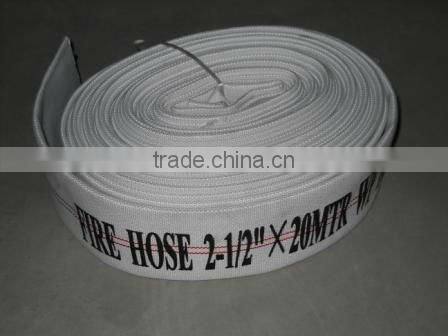

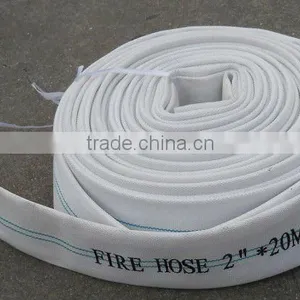

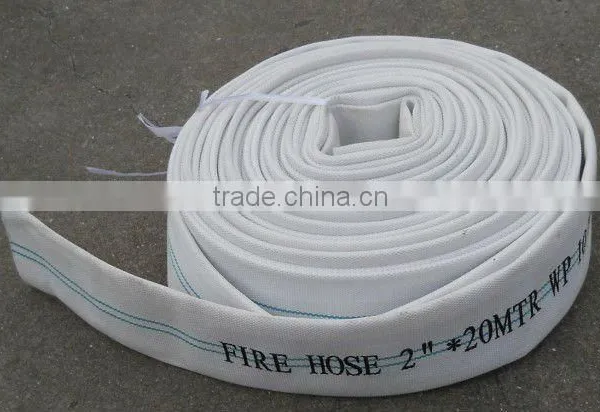

Fire hose
IMPA:330701-330726 Fire hose
1.In cargo ships of 1,000 gross tons or more
2. the number of non-perishable fire hoses to be provided shall be one for each 30 mtr area of the ship and one spare.
3.In no case shall there be less than 5 hoses in all.
| CODE | NORMINAL SIZE | LENGTH PER COIL | WORKING PRESSURE |
330701 2 3 | 40 50 65 | 15 Mtr | 9 kgf/m2 |
330704 5 6 | 40 50 65 | 20Mtr | 9 kgf/m2 |
330707 8 9 | 40 50 65 | 25Mtr | 9 kgf/m2 |
330710 11 12 | 40 50 65 | 30Mtr | 9 kgf/m2 |
N.V.Approved (Polyester yarn and coated inside with synthetic rubber):
| Code | Nominal Size | Length per Coil | Working Pressure |
330715 16 | 40mm | 15mtr 20mtr | 6 kgf/m2 |
330717 18 | 50mm | 15mtr 20mtr | 6 kgf/m2 |
330719 20 | 65mm | 15mtr 20mtr | 6 kgf/m2 |
U.K.DOT Approved(All synthetic rubber lined):
| Code | Nominal Size | Length per Coil | Working Pressure |
330721 24 | 45mm | 15mtr 18mtr | 17 kgf/m2 |
330722 25 | 50mm | 15mtr 18mtr | 17 kgf/m2 |
330723 26 | 65mm | 15mtr 18mtr | 17 kgf/m2 |
Note:Coupling excluded
Fire Hose
Inner/outer Synthetic Rubber Lined slao de provided:
1.High durable fire hose with synthetic rubber reinforcemen on inner and outer surface of the hose.
2.It has excellent resistance to weather,abrasion,oil,chemical and especially to ozone attack.
