Roller Chain/industrial Transmission Chain/engineer Chain

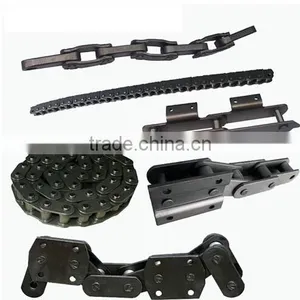

Roller Chain/industrial Transmission Chain/engineer Chain thumbnail-1
Roller Chain/industrial Transmission Chain/engineer Chain photo-1
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Nonstandard
Type:
Roller Chain
Material:
Iron
Contact Supplier Request Quote Chat Now
Henan Mart Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai.....
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Nonstandard
Type Roller Chain
Material Iron
Place of Origin Zhejiang, China
Brand Name HX
Model Number 08B
ISO 606 Standard Conveyor Chain and Engineer Class Driving Chain, with alloy steel and stainless steel selection according to your requirement

1, Chain types: Roller Chain, conveyor chain, transmission chain, motorcycle roller chain, silent chains, oil pump chains, weld steel drag chains, plastic chains etc;
2, Main materials: It is 40Mn. 40Cr, 45Mn alloy steel, SUS304, and POM Plastic for plates, 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers;
3, Heat treatment: Carburizing, Austemper Stressing, nitro-caburizing harden etc;
4, Surface: Shot peening, black, blue or original;
5, Package way: Plastic bag+ carton box+ plywood case
We are a leading manufacturer of mechanical transmission spare parts, as well as several years one of reliable and trustworthy vendors for European, America, Iran market etc. Our main items are roller chains, conveyor chains, transmission chain, pulleys, V-belts, sprockets, spur gears, bevel gear, gear shafts, roller bearings, rollers, conveyor belts etc.

At present, For South American, European, and Asian market, our superior products are fabricated according to your requirement and our quality meets ISO, ASME, DIN standard.

I hope we can do business together, and look forward to hearing from you soon
ISO Chain No. ANSI Chain No.
Pitch Roller diameter Maximum width over inner link Pin diameter maximm chain path depth Depth of inner plate Transverse pitch Pin length Ultimate tensile strength Weight per meter
P d1(min) b1(man) d2(max) h1(min) h2(max) Pt L(max) Q(min) q≈
mm in mm mm mm mm mm mm mm kN kg/m
06C-1
06C-2
06C-3		 35-1
35-2
35-3		 9.525 3/8" 6.35 5.72 3.28 9.3 8.26 10.24 13.5
23.8
34.0		 8.9
16.9
24.9		 0.4
0.8
1.2
08A-1
08A-2
08A-3		 40-1
40-2
40-3		 12.7 1/2" 7.92 7.85 3.98 12.33 12.07 14.38 17.8
32.3
46.7		 13.8
27.6
41.4		 0.7
1.4
2.1
10A-1
10A-2
10A-3		 50-1
50-2
50-3		 15.875 5/8" 10.16 9.4 5.09 15.35 15.09 18.11 21.8
39.9
57.9		 21.8
43.6
65.4		 1.0
2.0
3.0
12A-1
12A-2
12A-3		 60-1
60-2
60-3		 19.05 3/4" 11.91 12.57 5.96 18.34 18.08 22.78 26.9
49.8
72.6		 31.1
62.3
93.4		 1.5
3.0
4.5
16A-1
16A-2
16A-3		 80-1
80-2
80-3		 25.4 1" 15.88 15.75 7.94 24.39 24.13 29.29 33.5
62.7
91.9		 55.6
111.2
166.8		 2.6
5.2
7.8
20A-1
20A-2
20A-3		 100-1
100-2
100-3		 31.75 1 1/4" 19.05 18.9 9.54 30.48 30.18 35.76 41.1
77.0
113.0		 86.7
173.5
260.2		 3.8
7.6
11.4
24A-1
24A-2
24A-3		 120-1
120-2
120-3		 38.1 1 1/2"  22.23 25.22 11.11 36.55 36.2 45.44 50.8
96.3
141.7		 124.6
249.1
373.1		 5.6
11.2
16.8
28A-1
28A-2
28A-3		 140-1
140-2
140-3		 44.45 1 3/4" 25.4 25.22 12.71 42.67 42.24 48.87 54.9
103.6
152.4		 169.0
338.1
507.1		 7.5
15.0
22.5
32A-1
32A-2
32A-3		 160-1
160-2
160-3		 50.8 2" 28.58 31.55 14.29 48.74 48.26 58.55 65.5
124.2
172.9		 222.4
444.8
667.2		 10.1
20.2
30.8
36A-1
36A-2
36A-3		 180-1
180-2
180-3		 57.15 2 1/4" 35.71 35.48 17.46 54.66 54.31 65.84 73.9
140.0
206.0		 280.2
560.5
840.7		 13.4
29.2
38.2
40A-1
40A-2
40A-3		 200-1
200-2
200-3		 63.5 2 1/2" 39.68 37.85 19.85 60.95 60.33 71.55 80.3
151.9
223.5		 347.0
693.9
1040.9		 15.8
32.0
48.0
48A-1
48A-2
48A-3		 240-1
240-2
240-3		 76.2 3" 47.63 47.35 23.81 73.13 72.39 87.83 95.5
183.4
271.3		 500.4
1000.8
1501.3		 22.6
46.0
68.0
