Help CenterHydraulic Pipe Threader SQ-30-2B
US$ 300 - 320
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
HAOBAO
Model Number:
SQ30-2B
Rated Voltage:
220V/110V
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1500W 2'' Threading Machine SQ-50, Electric Pipe ThreaderUS$ 500 - 600MOQ: 10 Sets -
Powerful Power Drive Pipe Threader for Threading 1/2" - 2" PipeUS$ 600 - 700MOQ: 10 Sets
-
Low Price Pipe Threading Machine SQ-50US$ 500 - 520MOQ: 10 Sets
-
3'' Pipe Threading Machine SQ-80C1US$ 790 - 960MOQ: 5 Sets
-
Hotsale Hydraulic Pipe Threader Machine SQ-30-2BNegotiableMOQ: 1 Set
Brand Name
HAOBAO
Model Number
SQ30-2B
Rated Voltage
220V/110V
Frequency
50-60HZ
Rated Input Power
1350W
No-Load Speed
18-28RPM
Applicable Pipe Thread
1/2''-2''
Weight
25KG
Specifications
pipe threader110V, Approved to CSA(CUS) standard
220V, Approved to CE standard
Motor always runs in one direction.

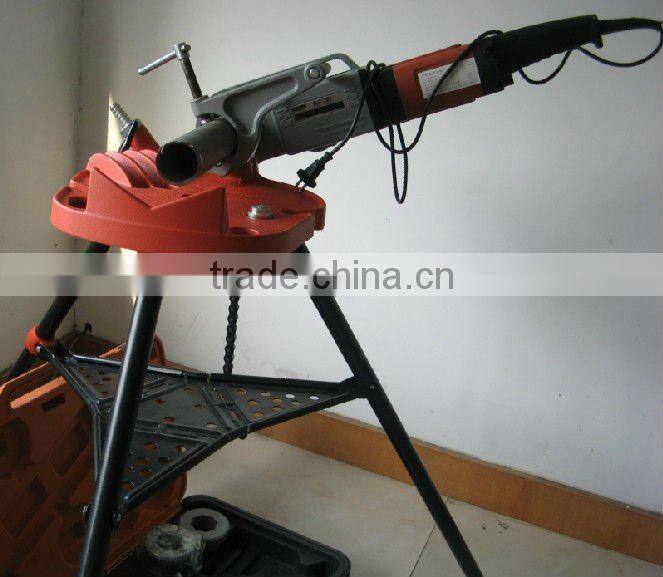

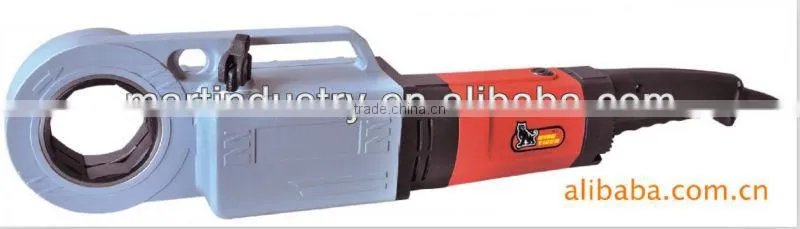

Pipe threader SQ-30-2B
Featuring
Compact design for easy transportation
Ideal for on-site applications such as gasline pipe installation
110V, Approved to CSA(CUS) standard
220V, Approved to CE standard
Motor always runs in one direction.Basing on mechanical transmission,works more steady
Quick and effortless production of safe precision threaded joints to approved standards
BSPT 1/2"-2"
NPT 1/2"-2"
Specifications
Motor: 1200-1350W Universal 115V or 220V, 50-60Hz
Switch: Heavy-duty paddle-type switch.
Gear Housing: Aluminum
Speed: 18-28 RPM for threading, 51RPM reverse
Capacity: 1/2" - 2 "
Die Heads Included: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"(Type 11R) for threading
Weight: 8KGS, Power Drive only
Mechanical transmission reverse (3-times faster than threading)
ordering information
| Cat no. | Model no. | Description | Weight |
| 32020 | SQ30-2B | complete set 220V,50Hz, BSPT | 25kg |
| 32010 | SQ30-2B | complete set 110V,60Hz, NPT | 25kg |
-
Accessories
| Cat no. | Model no. | Description | Weight |
| 32400 | support arm | 2.5kg | |
| 32100 | die head adapter | 0.65kg | |
| 66000 | oiler (optional) | 6kg |
