Specifications
Pipe ThreaderEquipping 2 automatic die heads, trigger off automatically while threads length meets
Fast delivery

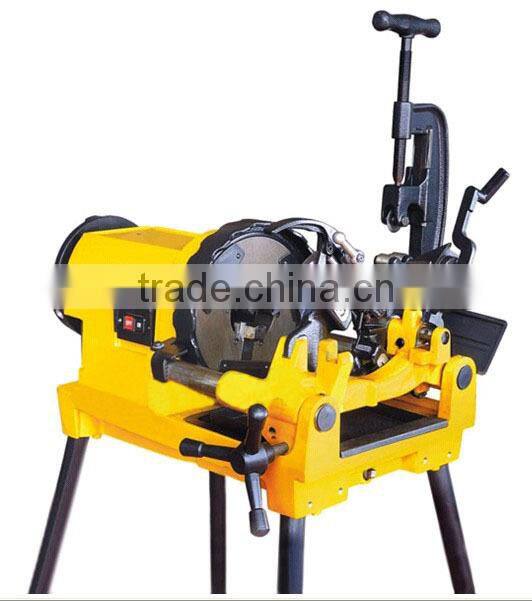

1500W 3'' Pipe Threader SQ-80C1
Featuring
Compact and durable design with powerful universal motor,net weight only 74kg.
All sizes of threads get processed only in one turn.
The most light-weight 3" threader
Specifications
Motor: 1500W universal type, 110V or 220V, 50-60Hz
Spindle Speed: 32 RPM
Net Weight: 74KG
Capacity:1/2"-3" (BSPT & NPT) (1/2"-3/4", 1"-2", 2 1/2"-3" ) for threading
Equipping 2 automatic die heads, trigger off automatically while threads length meets
Adjustable oiling flow; Through the head, with an integral oil reservoir
Self-priming, constant-flow geroter pump
Ordering information
Cat no . | Model no. | Description | Weight |
47020 | SQ80C1 | complete set 1/2"-3",220V-50HZ,BSPT | 74KG |
47010 | SQ80C1 | complete set 1/2"-3",110V-60HZ,NPT | 74KG |
Accessories
Cat no. | Model no. | Description | Weight |
|
| Die head,1/2"-2",Automatic | 6KG |
|
| Die head,1/2"-3",Automatic | 7.5KG |
|
| Nipple chuck,BSPT | 4.8KG |
|
| Nipple chuck,NPT | 4.8KG |
Dies set
Cat no. | Size | Material | Weight |
| 1/4"-3/8" BSPT(optional) | HSS | 0.75KG |
24051 | 1/2"-3/4" BSPT | HSS | 0.75KG |
24053 | 1"-2" BSPT | HSS | 0.75KG |
| 1/4"-3/8" NPT(optional) | HSS | 0.75KG |
21051 | 1/2"-3/4" NPT | HSS | 0.75KG |
21053 | 1"-2" NPT | HSS | 0.75KG |
24053 | 1"-2"BSPT | HSS | 0.75KG |
24504 | 2 1/2"-3"BSPT | HSS | 0.7KG |
21054 | 2 1/2"-3"NPT | HSS | 0.7KG |
