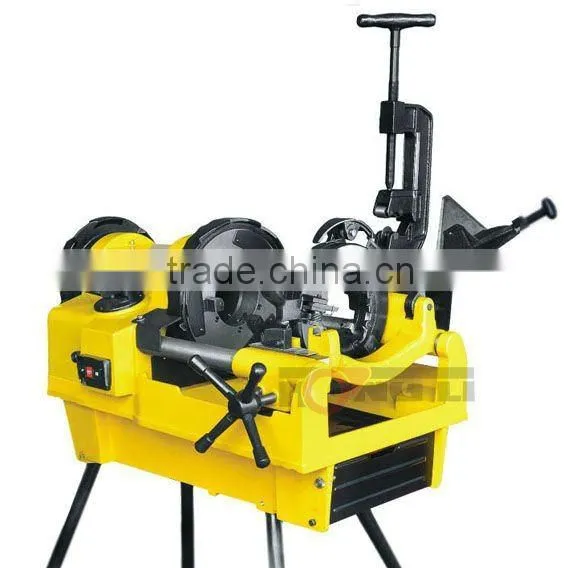

4''BSPT&NPT Die Head Pipe Threading Machine SQ-100F

4''BSPT&NPT Die Head Pipe Threading Machine SQ-100F thumbnail-1
4''BSPT&NPT Die Head Pipe Threading Machine SQ-100F photo-1
US$ 1,000 - 1,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HAOBAO
Contact Supplier Request Quote Chat Now
Henan Mart Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name HAOBAO
Model Number SQ-100F
Machine Type Other, THREARDING MACHINE
Raw Material Pipe
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Manual
Extra Services Cut To Length
Certification CE
After-sales Service Provided Overseas third-party support available

Specifications

Threading machine
Equipping 2 automatic die head, trigger off automatically while threads length meets
Adjustable oiling flow

4''BSPT&NPT die head Pipe threading machine SQ-100F

Featuring

Reliable and proven for constant professional use for up  to 4" pipe threading.
Ideal for stationary threading in workshop,on building sites, for production, repair and service.
3 shifts of speed, enables the machine always working within optimised load.
Induction motor together with gearbox+belt,effecientily control the noise level.
All sizes of threads get processed only in one turn.

Specfications

Motor: 1500W induction type, 110V or 220V, 50-60Hz
Speed: 36 RPM (1/2"-3/4"), 20RPM (1"-2"), 11RPM (2 1/2"-4")
Casting: Aluminum
Capacity: 1/2"-4"
Equipping 2 automatic die head, trigger off automatically while threads length meets
Longer threading is possible with both die heads (BSPT & BSPP, NPT & NPSM)
Adjustable oiling flow; Through the head, with an integral oil reservoir

Ordering information

Cat no. Model no. Description Weight
 47020 SQ100F complete set,220V,50HZ ,BSPT 140KG
 47010 SQ100F complete set,110V,60HZ ,NPT 140KG

Accessories

Cat no. Model no. Description Weight
    Die head 1/2"-2",Automatic 3.8KG
    Die head 2 1/2"-4",Automatic 6.5KG
    Nipple chuck, BSPT 4.8KG
    Nipple chuck, NPT 4.8KG

Dies set



Cat no. Size Material Weight
  1/4"-3/8" BSPT(optional) HSS 0.75KG
 24051 1/2"-3/4" BSPT HSS 0.75KG
 24053 1"-2" BSPT HSS 0.75KG
  1/4"-3/8" NPT(optional) HSS 0.75KG
 21051 1/2"-3/4" NPT HSS 0.75KG
 21053 1"-2" NPT HSS 0.75KG
  1"-2"BSPP HSS 0.75KG
 24055 2 1/2"-4" BSPT HSS 1.0 KG
 21055 2 1/2"-4" NPT HSS 1.0 KG



4''BSPT&NPT die head Pipe threading machine SQ-100F



4''BSPT&NPT die head Pipe threading machine SQ-100F
