Specifications
Protable threading machine1.Spindle Speed:18-28RPM
2.Net Weight: 20KGS
3.High quality threading machineThreading machine

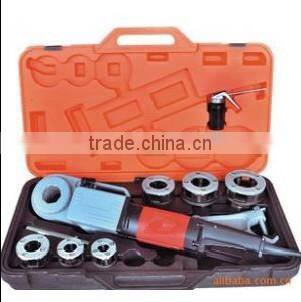

High quality and Protable Threading machine SQ-30-2B
Featuring
Compact design for easy transportation
Ideal for on-site applications such as gasline pipe installation
110V, Approved to CSA(CUS) standard
220V, Approved to CE standard
Motor always runs in one direction.Basing on mechanical transmission,works more steady
Quick and effortless production of safe precision threaded joints to approved standards
BSPT 1/2"-2"
NPT 1/2"-2"
Specifications
Motor: 1200-1350W Universal 115V or 220V, 50-60Hz
Switch: Heavy-duty paddle-type switch.
Gear Housing: Aluminum
Speed: 18-28 RPM for threading, 51RPM reverse
Capacity: 1/2" - 2 "
Die Heads Included: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"(Type 11R) for threading
Weight: 8KGS, Power Drive only
Mechanical transmission reverse (3-times faster than threading)
ordering information
| Cat no. | Model no. | Description | Weight |
| 32020 | SQ30-2B | complete set 220V,50Hz, BSPT | 25kg |
| 32010 | SQ30-2B | complete set 110V,60Hz, NPT | 25kg |
-
Accessories
| Cat no. | Model no. | Description | Weight |
| 32400 | support arm | 2.5kg | |
| 32100 | die head adapter | 0.65kg | |
| 66000 | oiler (optional) | 6kg |
