HHW-2D 3D 4D Air Hydraulic pipe bending machine
Features:
1. Manual hydraulic pipe bender is used for bending common water pipe, wire pipe, thick-wall conduit tube, Max bending angle is 90°
2. 1/2”-2” can be shaped 90º one time, for 2 1/2”-4”, pipe must be moved and bended for five times to the demanded radian.
3. It is made of strong nodular cast iron bending pipe mould material.
4. Bended surface smooth without folding marking. It's easy to operate.
Manual hydraulic pipe bender :
Model |
Pressure |
Stroke |
Crimping Range (Diameter) |
Pipe wall thickness |
Bending dies |
Packing Dimension |
Weight |
HHW-1A |
6T |
150mm |
10-25mm |
1.5-3.5mm |
3/8" 1/2'' 3/4'' 1'' |
43*38*13 cm |
17kg |
HHW-2 |
9T |
250mm |
21.3-60mm |
2.75-4.5mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' |
73*32*20 cm |
47kg |
HHW-3 |
19T |
290mm |
21.3-88.5mm |
2.75-5mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' 2½'' 3'' |
93*40*21 cm |
98 kg |
HHW-4 |
21T |
370mm |
21.3-108mm |
2.75-6mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' 2½'' 3'' 4” |
118*46*23 cm |
149 kg |
Electro-hydraulic Pipe Bender:
Model |
Pressure |
Stroke |
Crimping Range |
Pipe wall thickness |
Bending dies |
Packing Dimension |
Weight |
HHW-2D |
9T |
250mm |
21.3-60mm |
2.75-4.5mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' |
96x35x27cm |
70kg |
HHW-3D |
19T |
320mm |
21.3-88.5mm |
2.75-5mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' 2½'' 3'' |
118x46x27cm |
124 kg |
HHW-4D |
21T |
370mm |
21.3-108mm |
2.75-6mm |
1/2'' 3/4'' 1'' 1¼'' 1½'' 2'' 2½'' 3'' 4” |
118*46*32 cm |
173 kg |
HHW-1A HHW-2 HHW-3 HHW-4 HHW-2D
Manual & Air Hydraulic Series

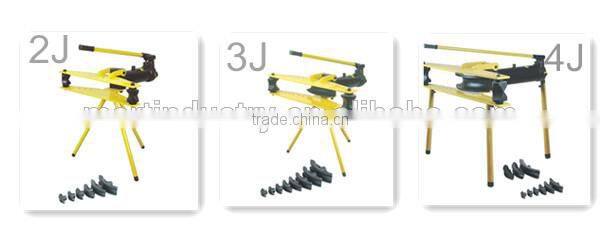

HHW-J Series

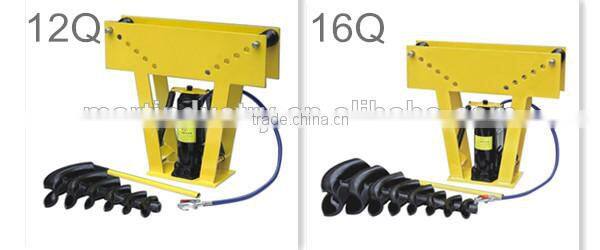

12Q 16Q
The pipe benders could be operated manually or by air pump

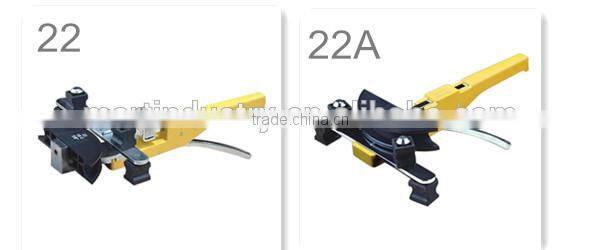

22 22A
Desiged to bender soft copper and coated soft copper up to 6mmm-22mm
Multifunctional pipe bender
Could i put logo on it?
As your requirement and we accept OEM order
Can i place sample order?
Yes,MOQ for different machine,please email us for your needs.
Could i change the motor according to the local voltage frequency?
Yes,110V/220V 50Hz/60Hz for your choice.
How many day for delivery time?
Usually,7-15 days after payment.
About Payment Methods
Payment accepted by T/T,L/C,Western Union,Escrow Payment, PayPal
Could i get order in short time?
Of course,just pay for it by Western Union,we will get it within 2-3 hours,and goods can be sent to you immediately.
How to use Western Union?
Log in offical Western Union website in your local area or calling them ask for help.
