rice destoning machine suction gravity stoner
- 2900 Piece / Pieces per Month
- Qingdao/Shanghai
- T/T Credit Card
Product Details
Type: | Electric | Use: | stoning machine | Certification: | ISO9001 |
Place of Origin: | Shandong, China | Brand Name: | QK | Model Number: | TQSX150 |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description

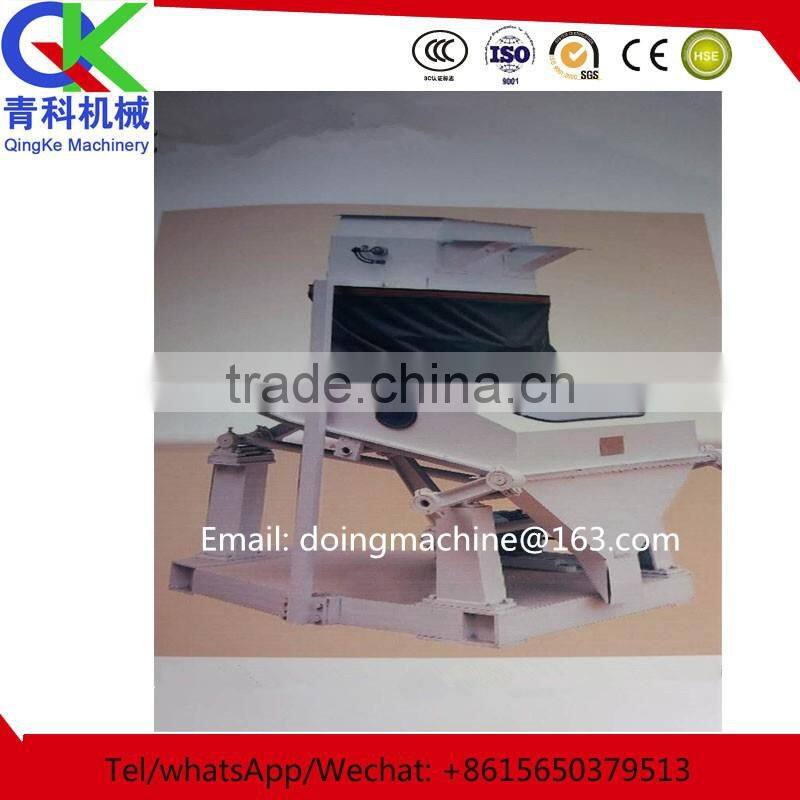

rice destoning machine suction gravity stoner
Product Description:
This machine is the latest development of our company's energy-saving equipment, is the current domestic food, chemical, feed, alcohol, pharmaceutical factory cleaning process the most ideal equipment.
Working Principle:
This machine is with food and side by side stone of specific gravity and the suspension velocity of different properties with upward through the clearance of food particles flow causing the grain and side by side stone grading, side by side stone complex in the lower layer, directional inclined reciprocating motion to go to stone plate under the action, towards the end of stone movement, floating in the upper layers of the grain under the action of gravity, to the discharge end of the flow, thus the side by side stone from grain separated.
Constituent Part:
Feeding suction device, Pure hopper, suspended hood, screen frame, eccentric drive, shaker mechanism, body frame
Advantage:
1) Smooth movement
2) Firm and reliable
3) Small vibration
4) Little noise
5) The machine to stone plate tilt angle can be adjusted in the range of 10-14 degrees or 9-13 degrees, so it can used to remove some different kinds of food in the side by side stone.
Model | TQSX150 |
Output | 7—10t/h |
Main shaft speed | 450—480r/min |
Eccentricity | 5 mm |
Go to the stone plate horizontal angle | 9—13° |
Go to work the size of stone plate | 1685×1540 mm |
Size selection of sieve plate work | 160×45 mm |
Air suction | 9000—9500 CBM/h |
static pressure | 40—50mm |
Rocker angle | 35°±1.5 |
Power | 1.5kw |
Dimension | 2080×1620×2365mm |
Weight | 580 KG |
Centrifugal fan model(reference) | 4—72—11 N04.5A |
Packaging & Shipping:
Packaging: wooden case for rice destoning machine or as customer's requirements.
Shipping: within 3 days after received the deposit for rice destoning machine.
Our Services:
Pre-sale Service
1. Supply item design, process design.
2. Help you to chose the fit machine.
3. Making the machine according to your requirement.
Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
After Service
1. Guarantee for a year.
2. Quality problem, we will send you the accessories.
3. Free repair whole using life(without the freight and accessories charge).
Company Information:
Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million.
This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC
lathe, boring machine, and milling machine.
Main products: rice destoning machine, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.
We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
FAQ:
Are you manufacture?
Yes. We are one of leading manufacturers
Do you have Stock productions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20year production experience. We have over 20 years exprerience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times.
