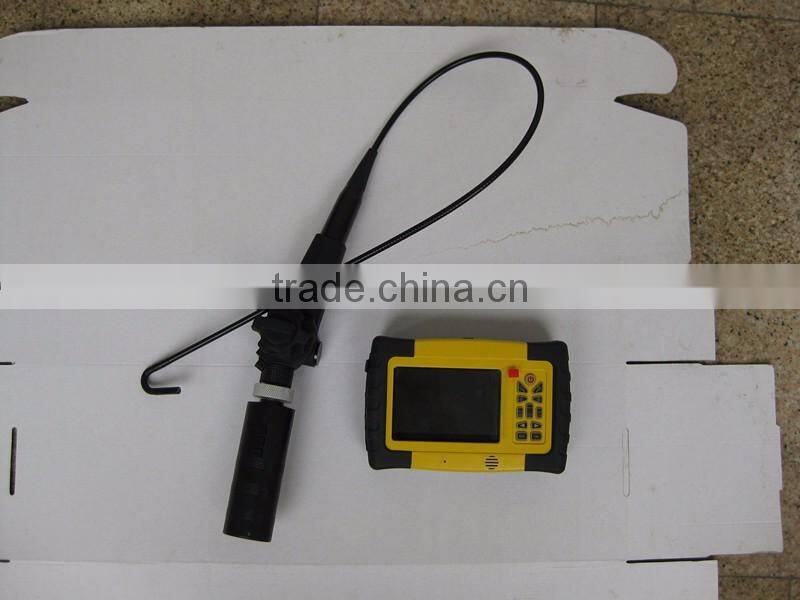

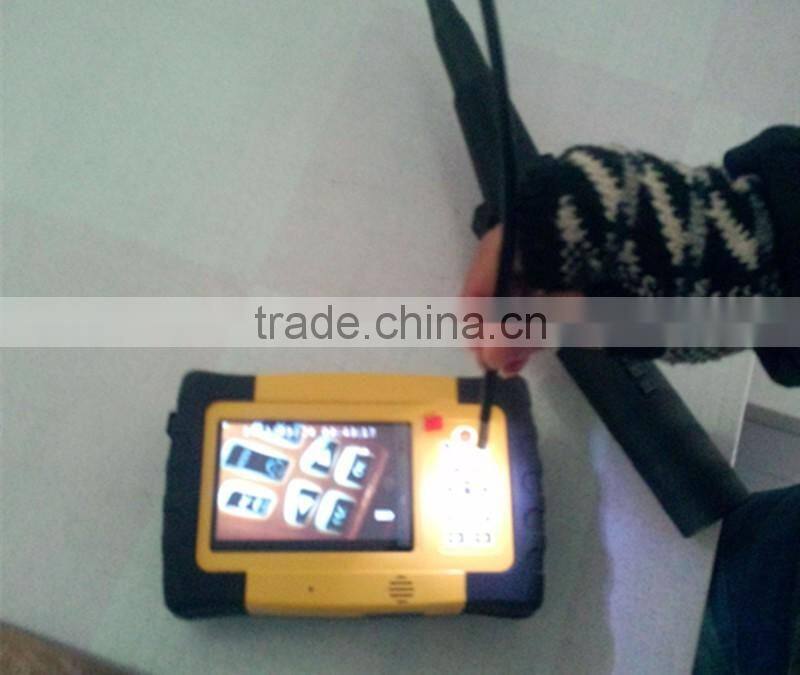

Waterproof inspection camera 4ways articulation video borescope with 5"TFT monitor display
1m, 2m can be available for 2ways articulating RS video borescope
Technical Description of Monitor Type Portable Flexible Videoscope:

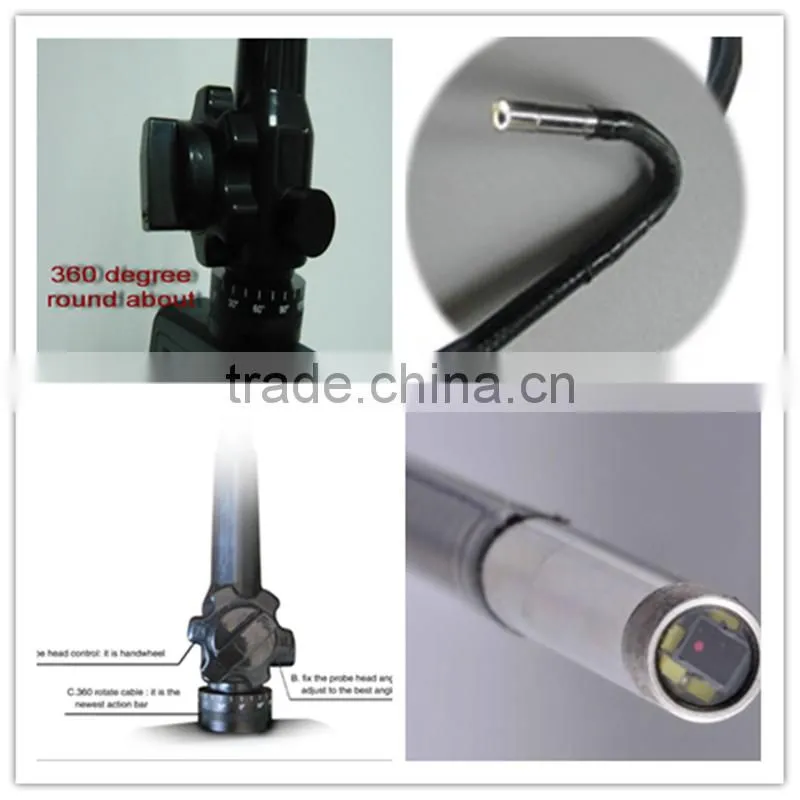

Insertion Tube & Light Source Specifications | |
Image Sensor | CMOS Image Sensor |
Resolution (Dynamic/Static) | 320(H)X240(V) / 640(H)X480(V)-VGA type |
Tip(Insertion Tube) Diameter | 4mm/6mm |
Insertion Tube Length | 1m |
Frame Rate | ~30fps |
S/N Ratio | 42Db |
Exposure | Automatic |
White balance | Fix |
Field of View (FOV) | 54° |
Depth of Field (DOF) | 1.5cm~10cm |
Light Source | 4 White LED |
System Specifications | |
Power | DC5V |

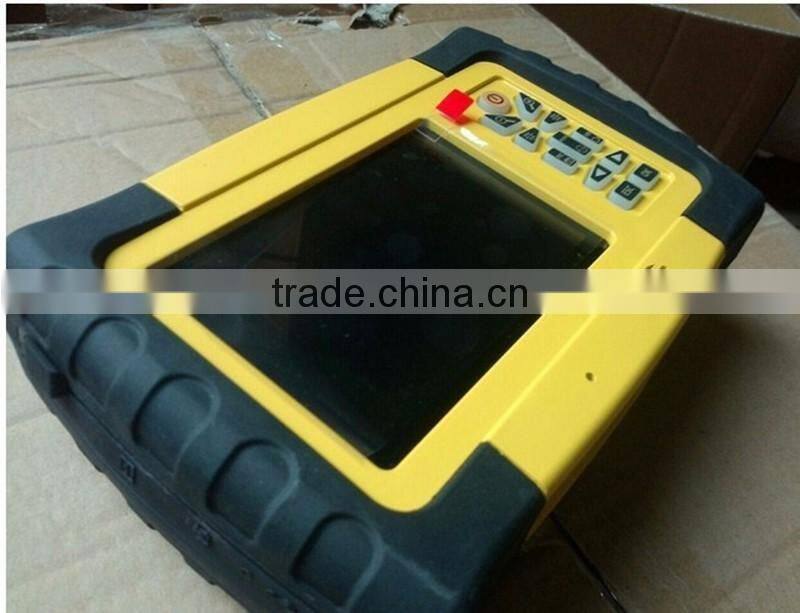

Display | 5"TFT LCD Monitor 320*240 Pixels |
Interface | Mini USB 1,1/AV out/ AV in |
Battery(not user serviceable) | Rechargeable Li-Polymer Battery(3,7V) |
Power adapter | 100-240V AC in/ 5,5 V DC out |
Video Out Format | NTSC and PAL |
Recording medium | SD card(1GB supplied/up to 2GB can be used ) |
Compression Format | MPEG4 |
Still Image Storage Format | JPEG(640*480) |
Video Recording Format | ASF(320*240) |
Working ,Storage/Battery charging temperature range | -20℃to 60℃/0 to 40℃ |
Functions | Snapshot, video recording, picture ,video review on LCD screen, TV Out, transfer of picture and video from SD card to PC |
Light Source of Monitor Type Portable Flexible Videoscope:
Number of lamps | 4 |
Brightness Control | Manual |
Lamp Type | LED |
Lamp Output | 5000 Lux at 15mm |
Lamp Life | 1000 hrs., median |
We have different kinds of cables with different specifications for this model. To know more please feel free to contact us .

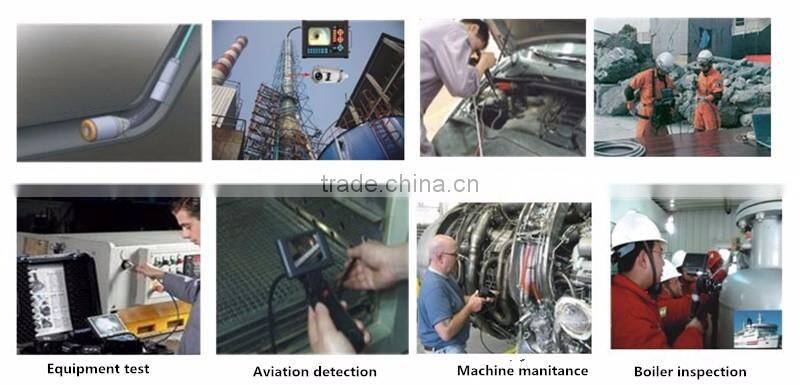

Application:
Contact us :
