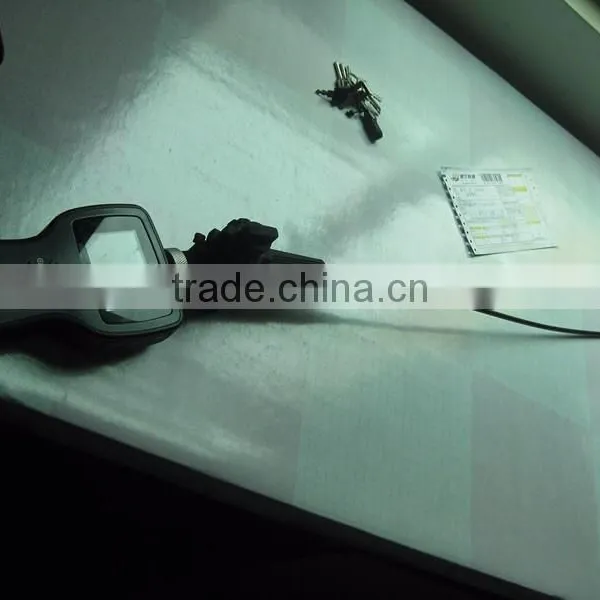

Practical Non-destructive Testing equipment advance video borescope with 4ways articulating cable 8mm

Insertion Tube & Light Source Specifications

Image Sensor

CMOS Image Sensor

Resolution (Dynamic/Static)

320(H)X240(V) / 640(H)X480(V)-VGA type

Tip(Insertion Tube) Diameter

8mm

Insertion Tube Length

1m

Frame Rate

~30fps

S/N Ratio

42Db

Exposure

Automatic

White balance

Fix

Field of View (FOV)

54°

Depth of Field (DOF)

1.5cm~10cm

Light Source

4 White LED

System Specifications

Power

DC5V

Display

3.5"TFT LCD Monitor 320*240 Pixels

Interface

Mini USB 1,1/AV out/ AV in

Battery(not user serviceable)

Rechargeable Li-Polymer Battery(3,7V)

Power adapter

100-240V AC in/ 5,5 V DC out

Video Out Format

NTSC and PAL

Recording medium

SD card(1GB supplied/up to 2GB can be used )

Compression Format

MPEG4

Still Image Storage Format

JPEG(640*480)

Video Recording Format

ASF(320*240)

Working ,Storage/Battery charging temperature range

-20℃to 60℃/0 to 40℃

Functions

Snapshot, video recording, picture ,video review on LCD screen, TV Out, transfer of picture and video from SD card to PC

Number of lamps

4

Brightness Control

Manual

Lamp Type

LED

Lamp Output

5000 Lux at 15mm

Lamp Life

1000 hrs., median
