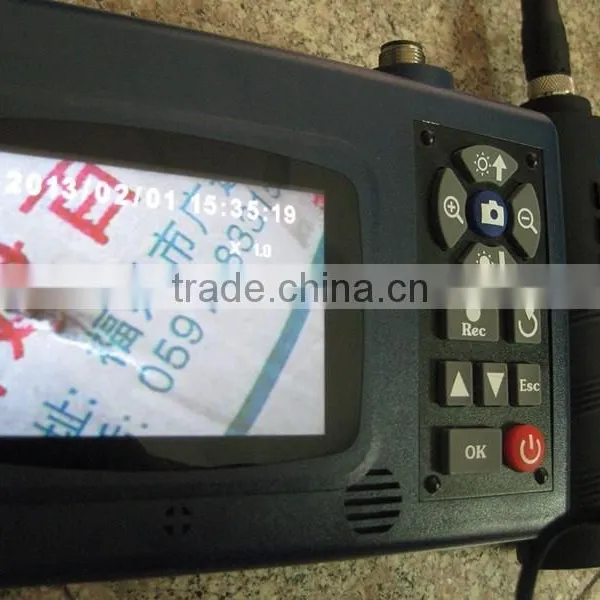

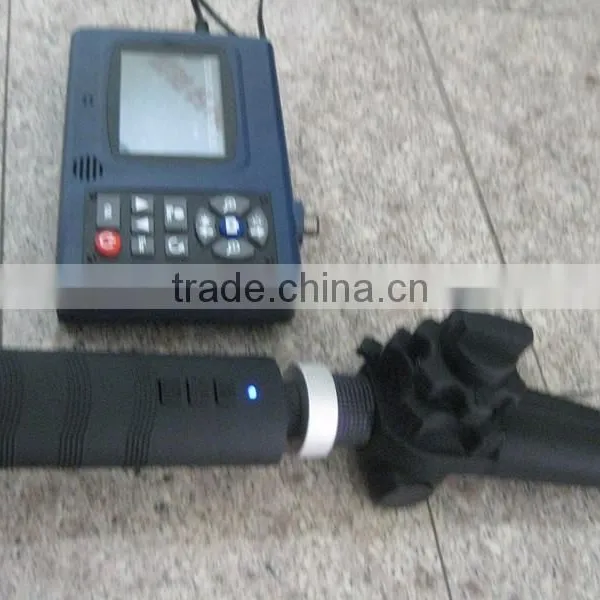

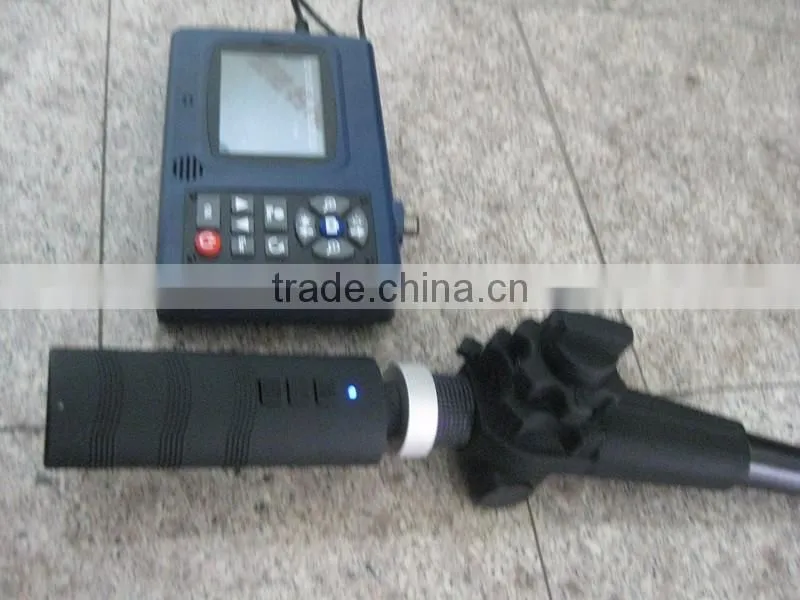

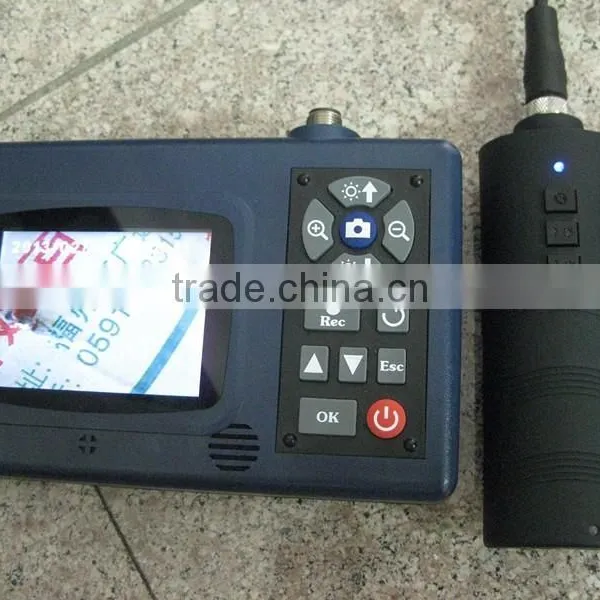

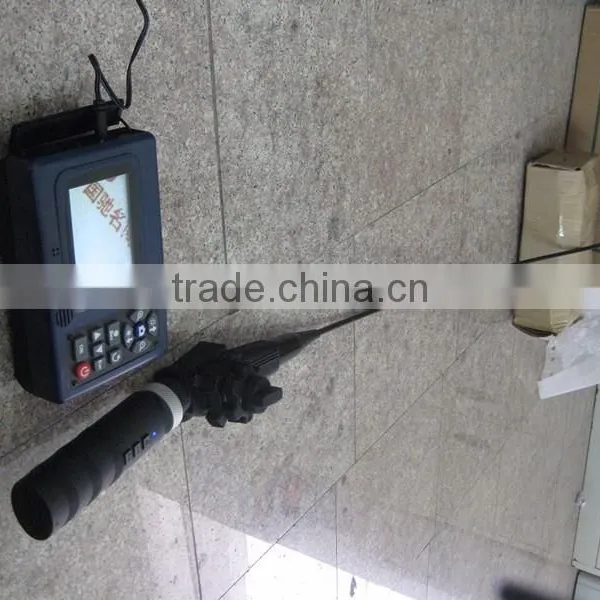

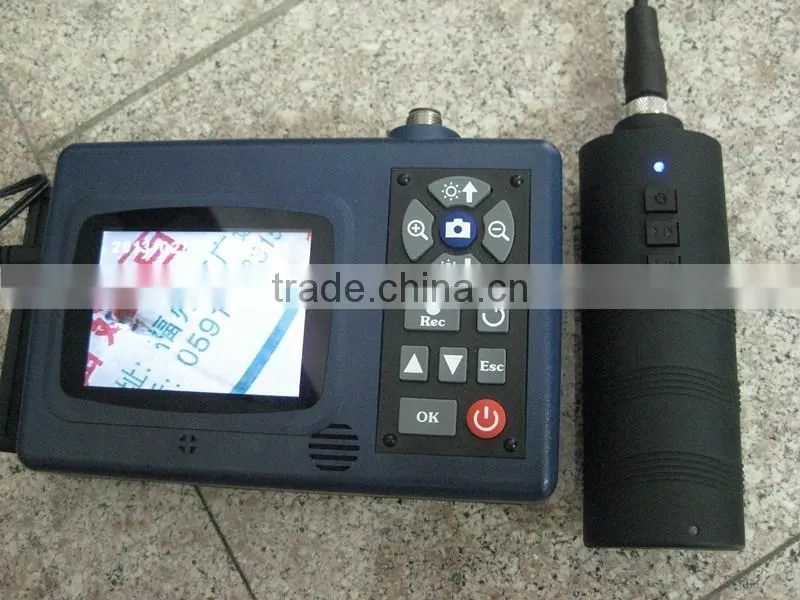

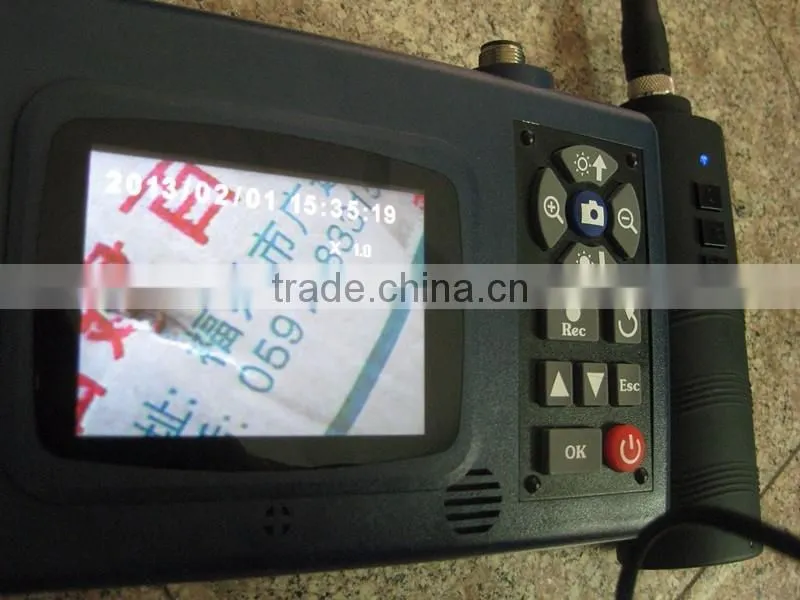

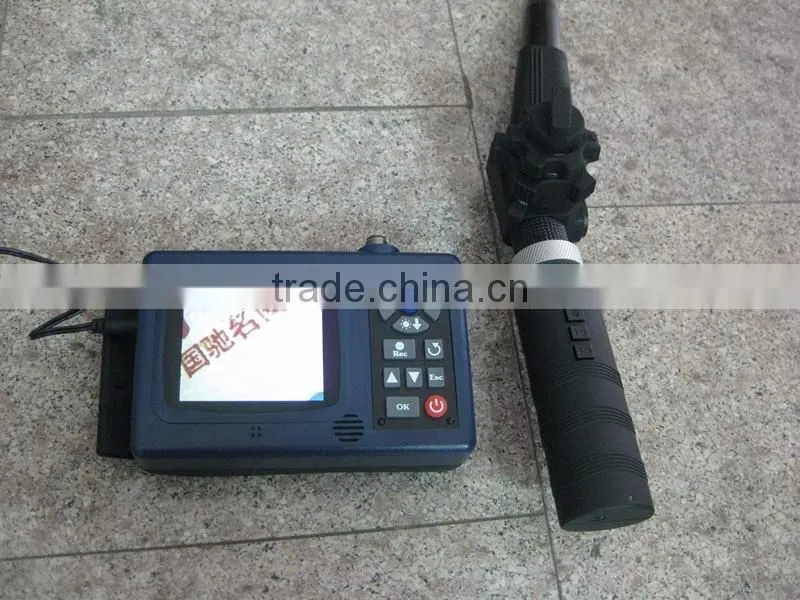

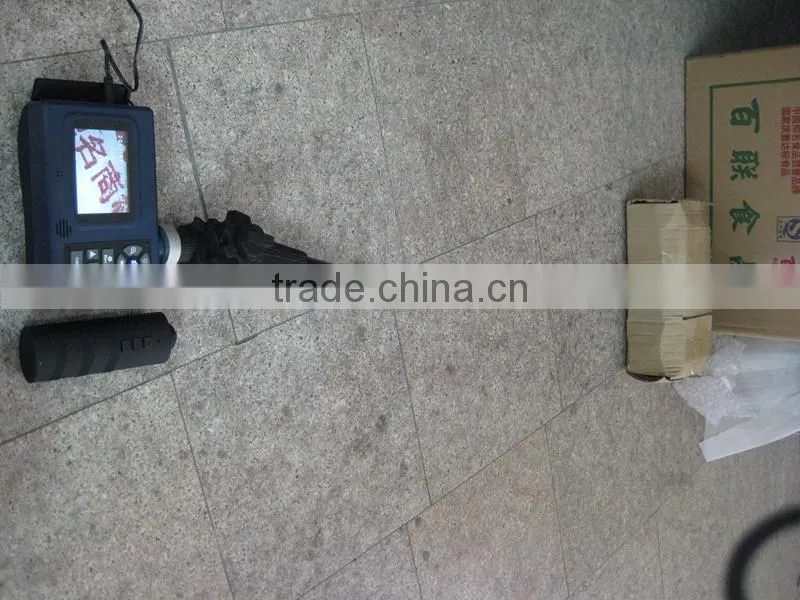

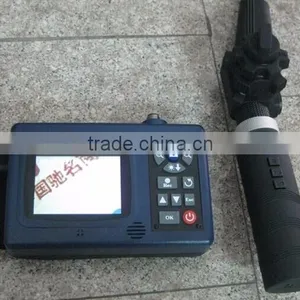

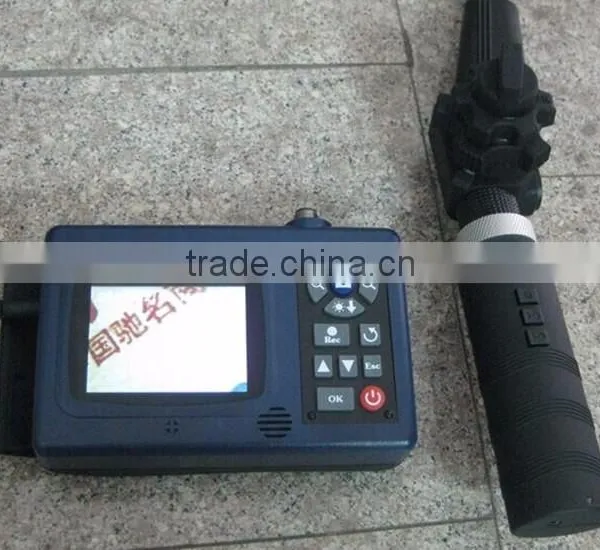

Vehicle test equipment 4ways articulation video borescope industrial endoscope with 8mm camera
Technical Description of Monitor Type Portable Flexible Videoscope:
Insertion Tube & Light Source Specifications | |
| tube length | 1m&up |
Resolution (Dynamic/Static) |
320(H)X240(V) / 640(H)X480(V)-VGA type |
Tip(Insertion Tube) Diameter |
8mm |
Insertion Tube Length |
1m |
Frame Rate |
~30fps |
S/N Ratio |
42Db |
Exposure |
Automatic |
White balance |
Fix |
Field of View (FOV) |
54°/56° |
Depth of Field (DOF) |
1.5cm~5cm |
Light Source |
6 White LED |
System Specifications | |
Power |
DC5V |

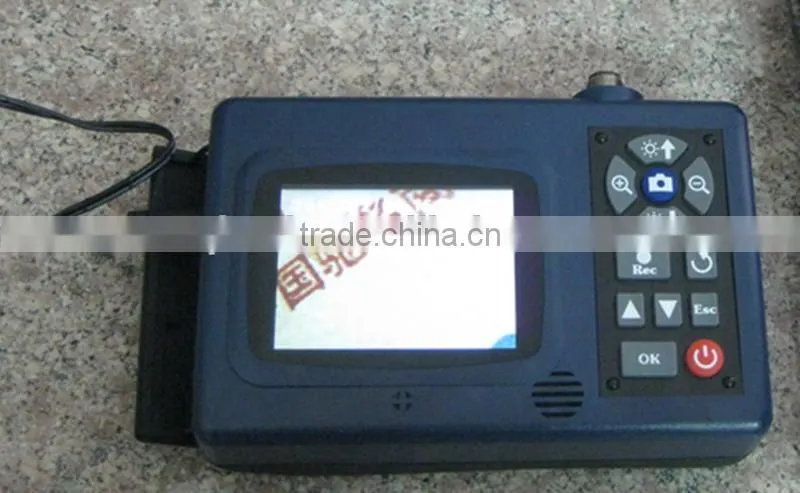

Display |
3.5"TFT LCD Monitor 320*240 Pixels |
Interface |
Mini USB 1,1/AV out/ AV in |
Battery(not user serviceable) |
Rechargeable Li-Polymer Battery(3,7V) |
Power adapter |
100-240V AC in/ 5,5 V DC out |
Video Out Format |
NTSC and PAL |
Recording medium |
SD card(1GB supplied/up to 2GB can be used ) |
Compression Format |
MPEG4 |
Still Image Storage Format |
JPEG(640*480) |
Video Recording Format |
AVI(640*480) |
Working ,Storage/Battery charging temperature range |
-20℃to 60℃/0 to 40℃ |
Functions |
Snapshot, video recording, picture ,video review on LCD screen, TV Out, transfer of picture and video from SD card to P |

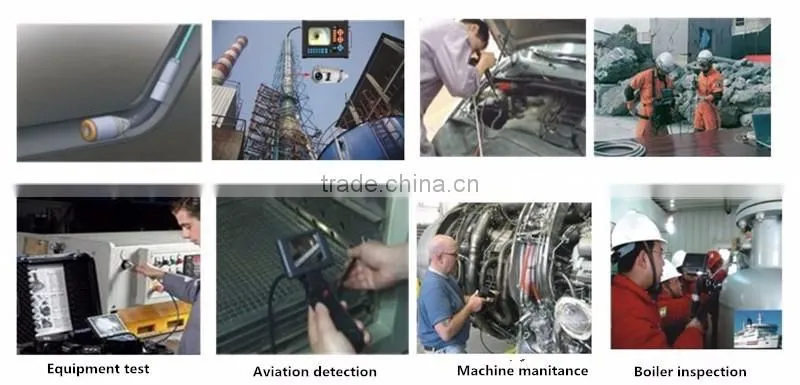

Application:
Contact us:
