Specifications

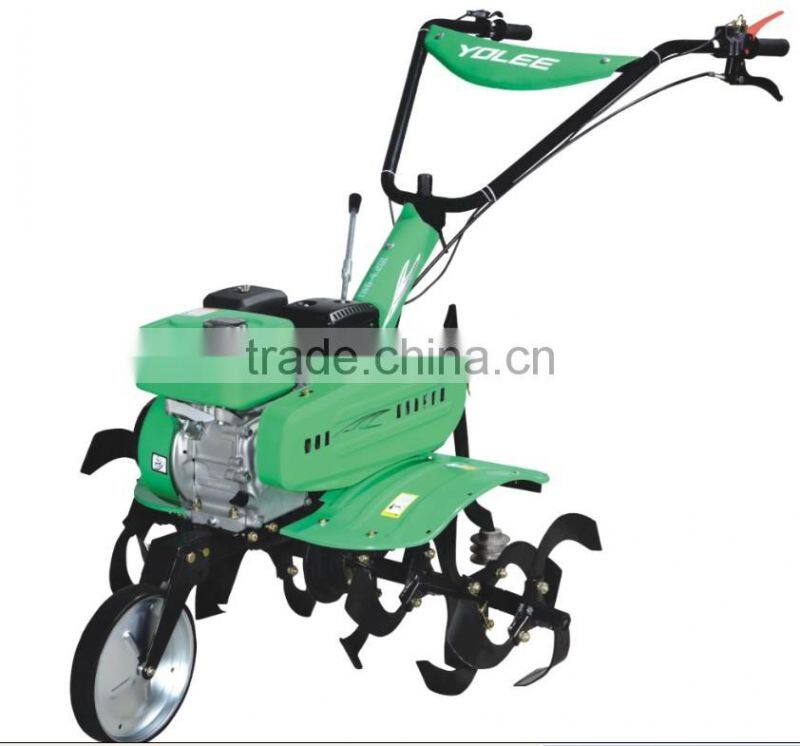

Gasoline rotary tiller1)7HP gasoline engine
2)High porformance ,Low fuel consumption
3)Fast delivery, low price,high qual
YOLEE BRAND - THE BEST CHOICE FOR YOU
Rotary tiller, Gasoline rotary tiller, Mini Gasoline rotary tiller, tiller, Gasoline tiller, mini tiller, gasoline l mini rotary tiller
Cultivator Accessories/ Tools:
walking wheel:400-8mm type ,500-12mm type, 600-12mm type
Blades and ditch

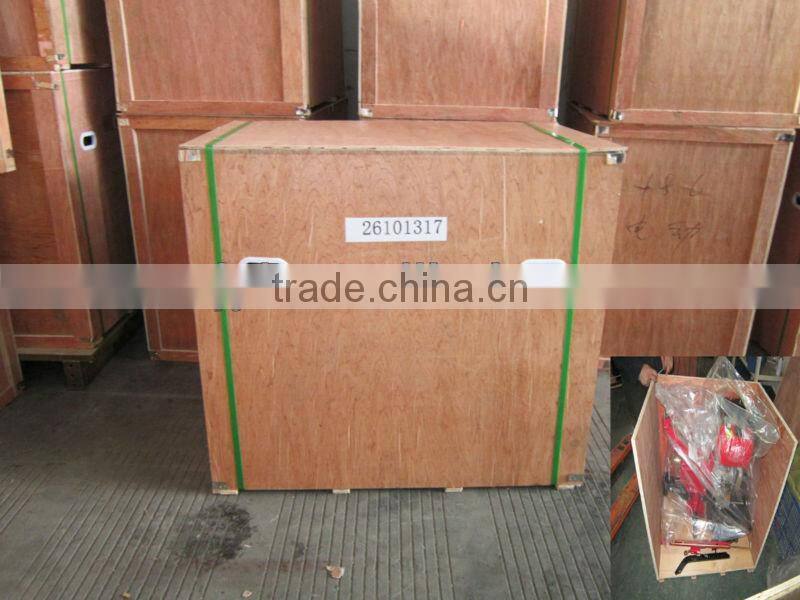

Strong wooden case
As a rotary tiller, it can do rotary tillage and weed work both in paddy and dry fields with higher efficiency and better performance.
Application scope :dry fields,paddy and dry fields . And it can also sow and fertilize and plough when conncted with corollary equipment like sower and fertilizer ,reversible plough ,etc
Characters of the Machine:
1. The machine is compact, light with high working stability. It is easy to operate, and women can also operate it with facility.
2. It is flexible. The handles of the machine are adjustable according to the height of the operator and the needs of the terrain so that it can improve work quality and make the operator more comfortable.
| Model | YL-1WG4.2 | ||
| Tiller | Transmission | Chain driving | |
| Clutch | Tensioner | ||
| Gear Shifting | -1,0,1,2 | ||
| Productivity(m2/h) | ≥400 | ||
| Tilling Depth(mm) | 100~250 | ||
| Tilling Width(mm) | 750~950 | ||

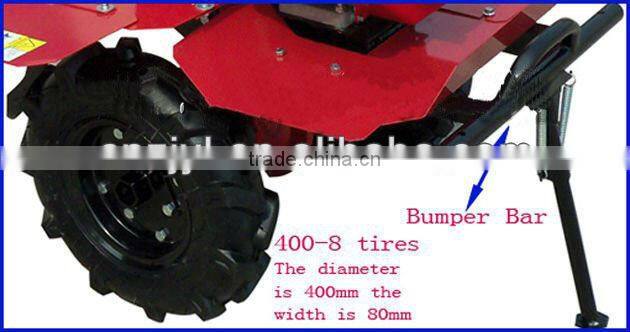

| Tyre size(mm) | 400-8 | ||
| Net Weight(kg) | 65 | ||
| Dimension(mm) | 920 × 580 × 820 | ||
| Lighting function | No | ||
| Technology | Ordinary | ||
| Reverse gear | No | ||
| Engine | Engine Model | 170F gasoline engine | |
| Engine Type | single cylinder, 4-stroke, air-cooled, OHV | ||
| Horse Power/Rotary Speed(rpm) | 6HP/3600 | ||
| Power | 4kw | ||
| Max. power | 4.8kw/3600 | ||
| Bore x stroke(mm) | 70×56 | ||
| Compression Ratio | 8.5:1 | ||
| Spark plug gap(mm) | 0.7 to 0.8 | ||
| Fuel consumption(g/kw.h) | 395 | ||
| Fuel Tank Capacity(L) | 4.5 | ||
| Displacement(ML) | 215 | ||
| Starting | Manual start | ||
| Tool | Type(mm) | 23 | |
| Tilling Depth(mm) | 150-320 | ||
| Tilling Scope(mm) | 750-850 | ||
| Others | Certificate | ISO9001,CE | |
| Package size(mm) | 920 × 580 × 820 | ||
| 40HQ | 154 sets | ||
As a good China tiller supplier, we have below advantage:
1. Good quality and competitive price
2. OEM service is available
3. SAMPLE is available
4. Fast and on time delivery
5. 6 month warranty
6. With Strong technical support, professional service, we aim for long term cooperation with you.
