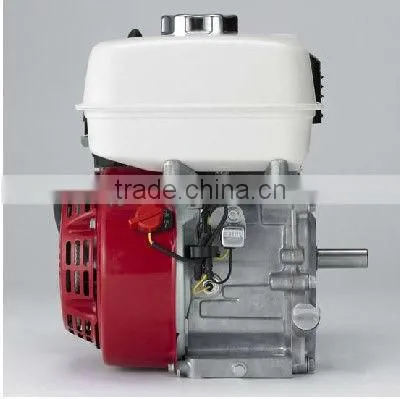

GX160 Honda Engine

Zhejiang Yongli Machinery Co., Ltd.
GX160 Honda Engine thumbnail-1
GX160 Honda Engine photo-1
Negotiable MOQ: 500 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Boat
Fuel:
Gasoline
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Boat
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other
Place of Origin Zhejiang, China
Brand Name HONDA
Model Number GX160

Specifications

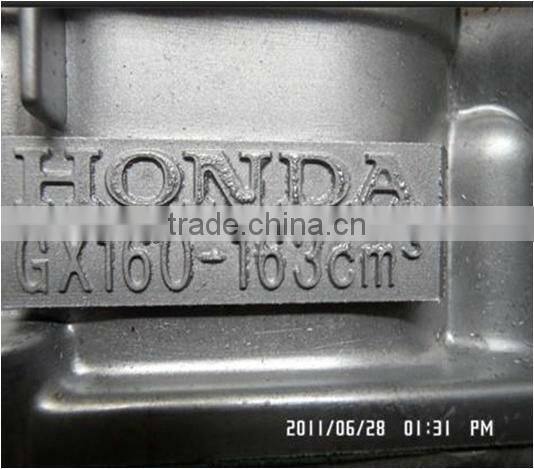

GX160 honda engine
OHV, 163 cc engine
Horizontal shaft
Commercial use

Common Applications

  • Pressure washers
  • Commercial lawn and garden equipment
  • Tillers / cultivators
  • Generators
  • Construction / industrial equipment
  • Agricultural equipment
  • Water pumps
  • Specs
  • Engine TypeAir-cooled 4-stroke OHV
    Bore x Stroke68 X 45 mm
    Displacement163 cm3
    Net Power Output*4.8 HP (3.6 kW) @ 3,600 rpm
    Net Torque7.6 lb-ft (10.3 Nm) @ 2,500 rpm
    PTO Shaft RotationCounterclockwise (from PTO shaft side)
    Compression Ratio9.0 : 1
    Lamp/Charge coil options25W, 50W / 1A, 3A, 7A

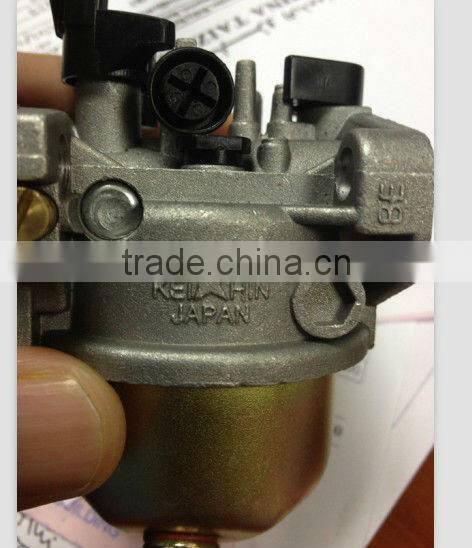

    CarburetorButterfly
    Ignition SystemTransistorized magneto
    Starting SystemRecoil Starter
    Lubrication SystemSplash
    Governor SystemCentrifugal Mechanical
    Air cleanerDual Element
    Oil Capacity0.61 US qt. (0.58 L)
    Fuel Tank Capacity3.3 U.S. qts (3.1 liters)
    FuelUnleaded 86 octane or higher
    Dry Weight33 lbs. (15.1 kg)
    Dimensions
    Length (min)12.2" (312 mm)
    Width (min)14.3" (362 mm)
    Height (min)13.6" (346 mm)
    PTO Shaft Options
    H typeReduction type PTO
    L typeReduction type PTO
    Q typeStraight shaft
    R typeReduction type PTO
    S typeStraight shaft (metric)
    T typeStraight shaft
    V typeTapered shaft

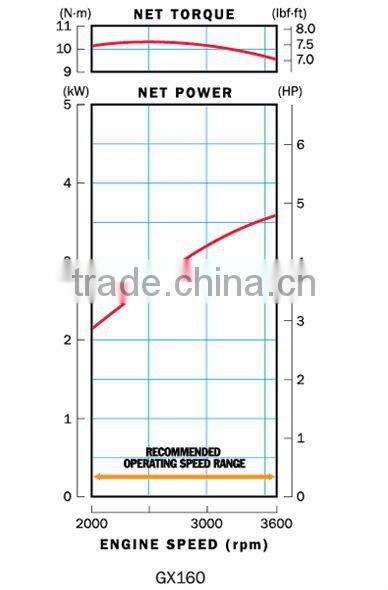

  •                  Performance Curve

  • GX160 Honda engineGX160 Honda engineGX160 Honda engineGX160 Honda engineGX160 Honda engine

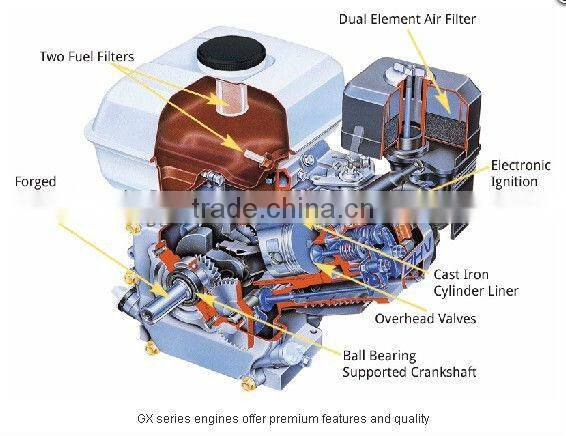

                   Features

  • GX160 Honda engine

    Available Options

    • Low profile versions
    • Gear reduction options
    • Electic start
    • Spark arrester available
    • Charge and lamp coils with multiple output options available
    • Cyclone Air Cleaner available

GX160 Honda engineGX160 Honda engine
