Specifications
KAMA Diesel Engine 12HP40CR for diesel engine curveshaft
Battery start diesel engine
Single cylinder diesel engine
CE
KAMA Diesel Engine 12HP :
Hand or battery start diesel engine
Air cooled, single cylinder diesel engine
Diesel engine curveshaft material 40CR
Air cleaner diesel engine
Diesel engine spare parts: injector, injector pump, starter, muffuler
3600rpm/ 1800rpm
| Model | YL188F | |||||
| Type | Single-cylinder,Vertical,4-Stroke,Direct Injection,Air-cooled | |||||
| Crankshaft Direction | Clockwise from flywheel end | |||||
| Cooling Type | Force air-cooled | |||||
| Lubrication type | Pressure splash | |||||
| Start Mode | Recoil/Electric Start | |||||
| Engine Speed | 3600rpm / 1800rpm | |||||
| Consumption rate of fuel | ≤280g/Kw.h | |||||
| Consumption rate of machine oil | ≤4.08g/Kw.h | |||||
| Rated Output | 7.5KW | |||||
| Bore*Stroke | 88*75mm | |||||
| Compression ration | 19 | |||||
| Displacement | 456cc | |||||
| Fuel Tank Capacity | 5.5L | |||||
| Lube-oil Capacity | 1.65L | |||||
| Net Weight | 55Kg | |||||
| Dimensions | 485*485*545mm | |||||

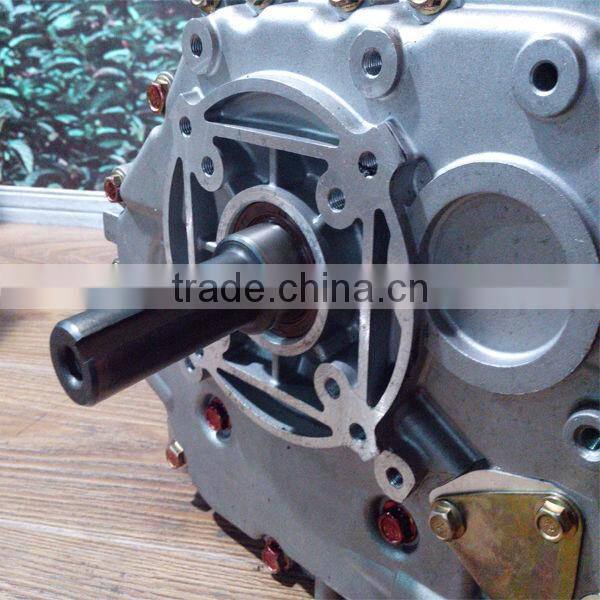

40CR curved shaft:
Why us?
1. We are factory, can provide product with competitive price and great quality
2. We save you time. U never need to find someone else in rush space when your product is in need. You can keep our offer and tell me your demands whenever you like
3. We save you money. Beside product, our ship agent provide very good ship freight and service
4. After sale service support. We guarentee our product quality, and provide problem accessory 1 year for free. Thought the problem is a seldom case.
5. Customerized design and service. We support your sale and offer your needs as tailored
6. Product range, we have five ranges of related produce, including Tiller, Water pump,Generator,Power sprayer and Engines. U never worry to gather different model for same container. We can provide satisfying product instead.
7. 10pcs above can be sent as trial order for sample test. 7 days sample delivery time

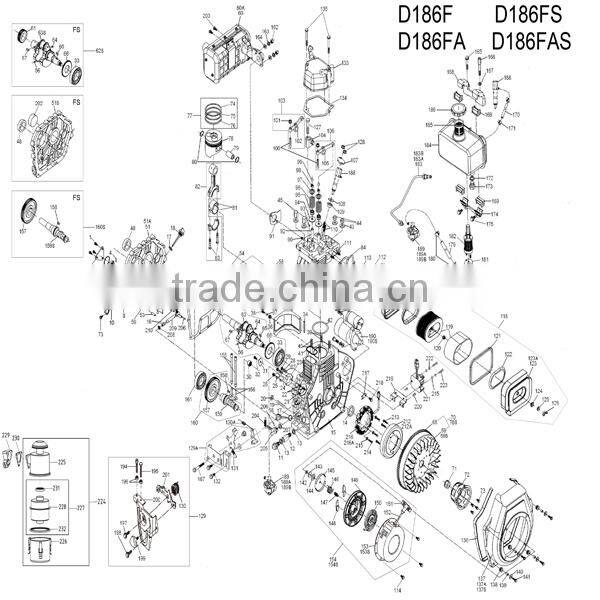

Diesel engine layout:
