Fiberglass duct rodder/fiberglass rod/cable duct rods

FOB Price

USD $200 - $350 / Set

1 Set(Min.Order)

Supply Ability 5500 Set / Sets per Month
Port xingang
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	Long Zhuo	Model Number:	FDR
Application:	Multifunctional	Surface Treatment:	Smooth	Technique:	Pultrusion
Dimensions:	Dia.4.5mm to 16mm, Dia.4.5mm to 16mm

Product Description

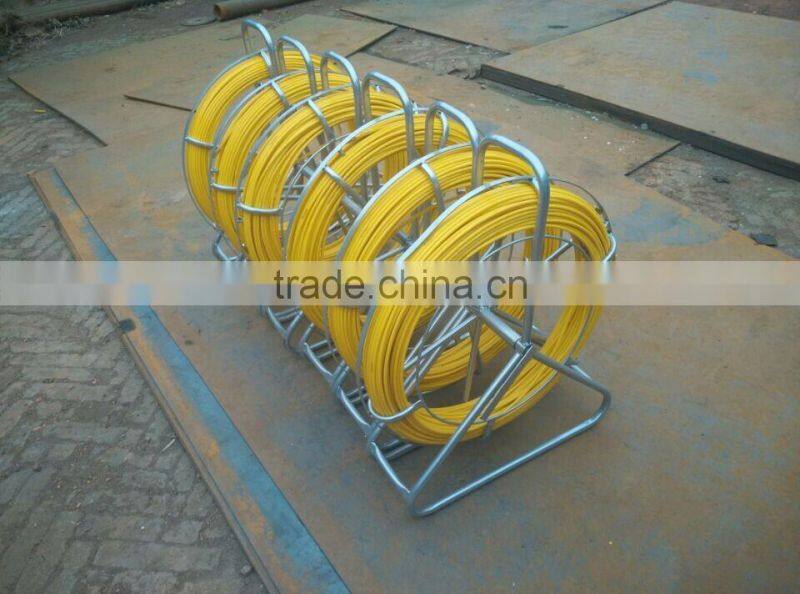

Fiberglass duct rodder/fiberglass rod/cable duct rods

Product Description

Product Introduction:

Duct Rodders are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature. This type of rod has high tensile strength and flexibility. It was covered by a high density polyethylene engineering plastic as its protect layer, which make duct rodder cover sliding on surface, durable,corrosion resistant and has good insulation performance, which make them safe for use in cable occupied duct.

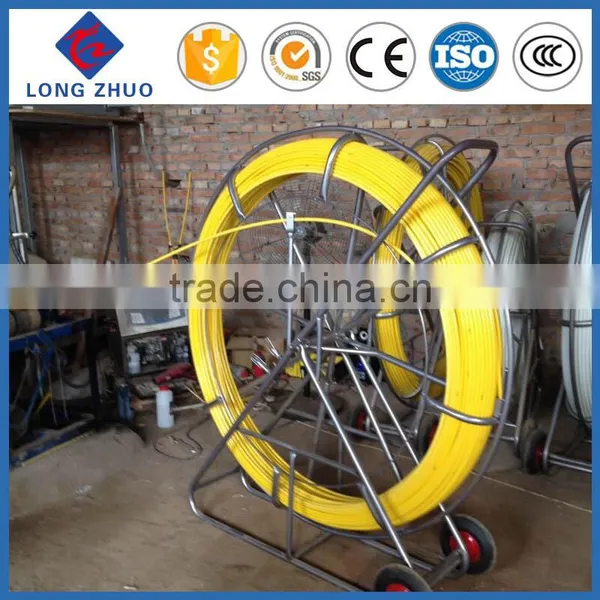

High Density polyethylene (Grade: For the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating. Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.

Features and Benefits:

1-Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.

2-High tensile strength and bending properties, which make it to go through narrow pipes easily.

3-Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather.

Its usability will not be affected by temperature.

4-Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.

5-Cover was coated with long-term UV-resistant polyethylene.

6-Its surface has the advantage of smooth, wear-resistant and long service life.

Technical Data of fiberglass Duct Rodders :

1. Glass reinforced composite core:

General properties

Property	Value
Keinforcement	E-glass fiber
Glass Content of Inner Part	75-80%
Material of Pulling Rod	Epoxy fiber glass(inner) high density polyethylene(outer)
Density	>1.9gr/cm³
Diameter Tolerance	+/-0.1mm
Work Situation Temperature	-40°C to +80°C

Mechanical properties

Property	Value
Minimum Pulling Strength	4000 N+/-5%
Tensile Modulus	>30000Mpa
Consistency of Rod	150gr/m +/-5%
Flexural Modulus	>30000M pa
Elongation at Break	2.5-3%

2. Polyethylene cover material:

Property	Value
Tensile strength	>15N/mm2
Environmental Stress & Crack Resistance	>1000 hr.
Heat Stability	OK.
Carbon Black	OK.

Packaging & Shipping

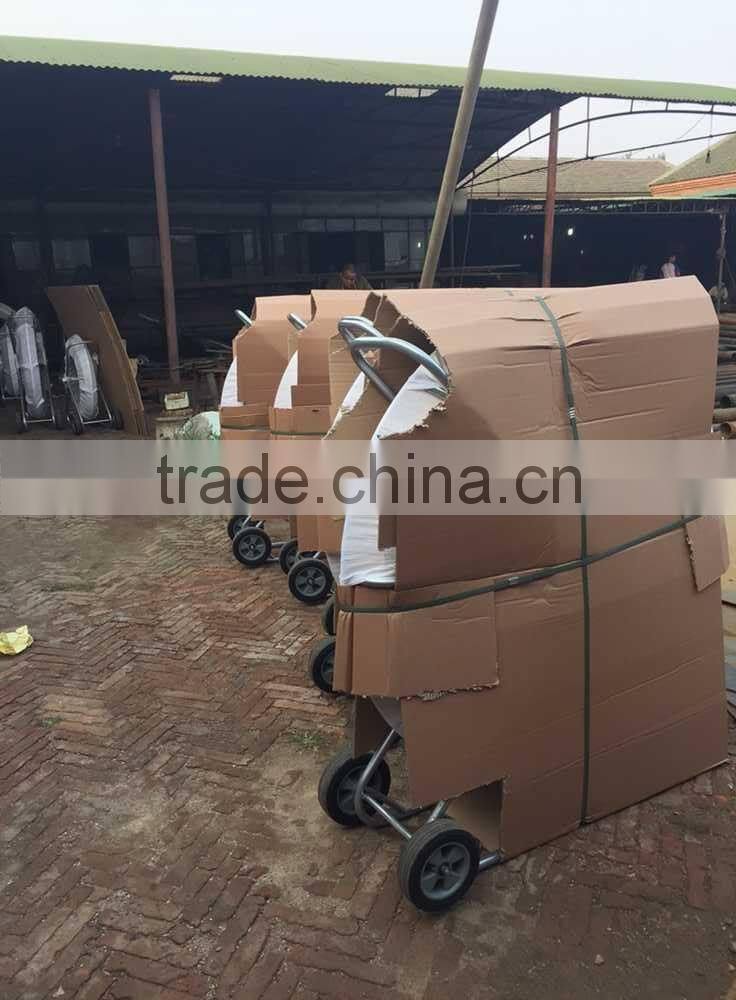

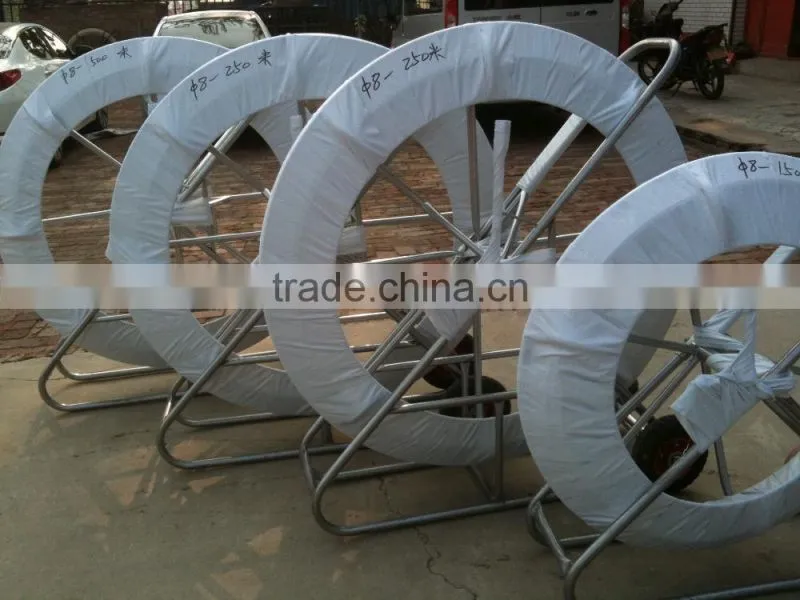

Packaging Detail:	duct rodder can be packaged in plastic woven, pallet or as your request
Delivery Detail:	duct rodder can be ship within 15days after recieve your deposit

Our Services

We could give you most appropriate recommendations about our product according your need,

send samples if you need , and We will do our best to deal with the problems our customers encountered.

If you have any problem please contact us without hesitate .We will do our best to sevice for you

For further information, plz feel free to contact me: Skype: fan.kylin
