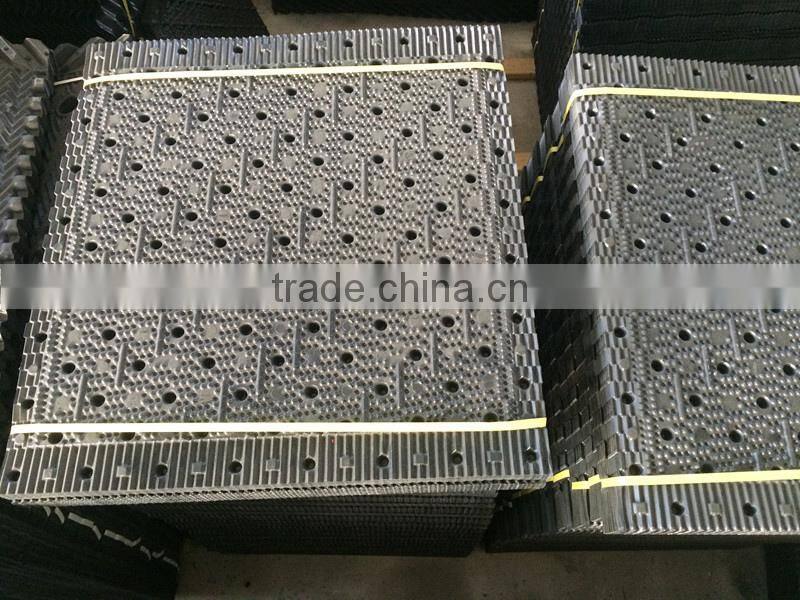

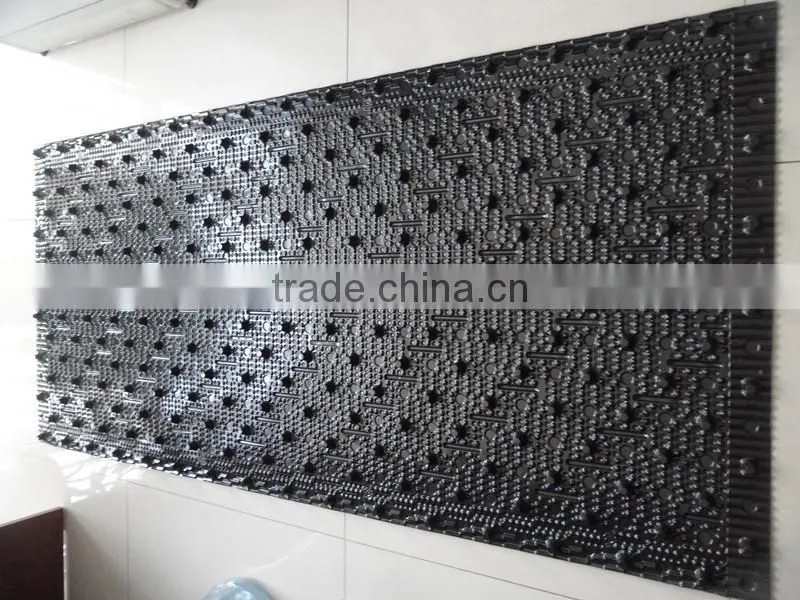

750*400/800/1600mm PVC fill sheet/cooling tower fill packing
Specification:
1. Size/Item: 750*400/800/1600mm
2. Pitch thickness:0.25-0.4mm
3. Application temperature: -20°C~55°C
4. Application Cooling tower: Cross-flow cooling tower
Work Principle Introduction:
Cooling towers reject heat from water-cooled systems to the atmosphere. Hot water from the system enters the cooling tower
and is distributed over the fill (heat transfer surface). Air is induced or forced through the fill, causing a small portion of the water to evaporate. This evaporation removes heat from the remaining water, which is collected in the cold water basin and returned
to the system to absorb more heat. Each cooling tower line, although operating under the same basic principle of operation, is arranged a little differently.

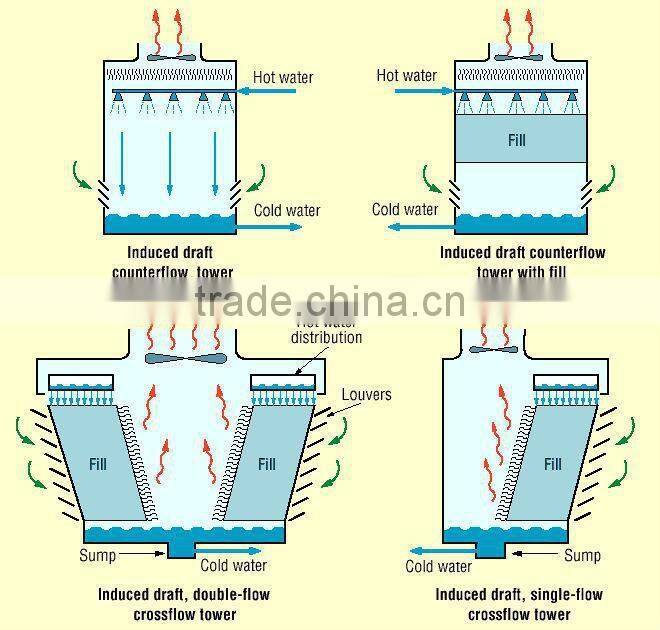

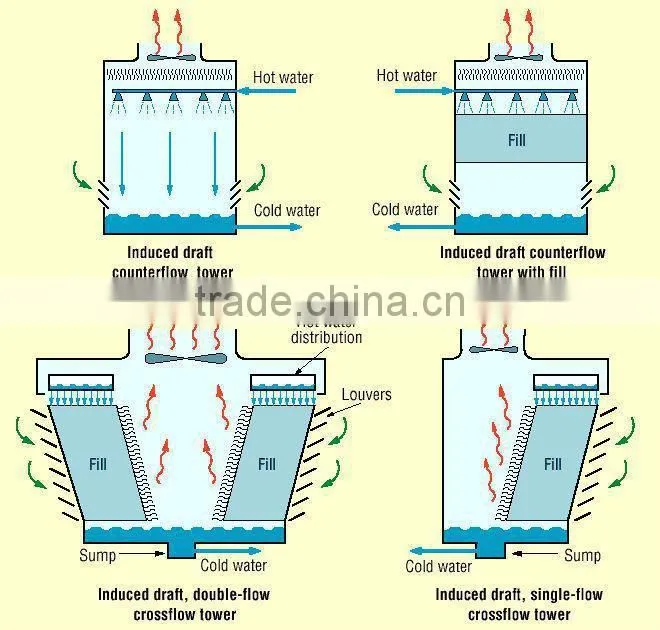

There are two main configurations of factory assembled cooling towers: crossflow and counterflow. In crossflow cooling towers, the water flows vertically down the fill as air flows horizontally across. In counterflow cooling towers, the water flows vertically down the fill as air flows vertically up.
Cooling tower fill is one of the most important components for exchange of gas and water in cooling tower. The heat and
resistance characteristic of the cooling tower fill are the main factors influencing the cooling efficiency. Moreover the quality of
the material will influence the fill's lifetime. Our company choose the high quality fill for the cooling tower. Our cooling tower fill
is with the advantages of good chemical stability, resistant acid, alkali and organic solvent corrosion, high cooling efficiency,
small ventilation resistance, strong hydrophilicity, large contact area etc
Customer Benefits:
- Original performance for lowest system operating cost
- Minimum downtime
- Maximum service life
- Operational safety
- Easy maintenance
- Easy cleaning
1. The filling has larger specific surface-area after several technological improvement, this prolongs detention time of drip on
filling surface, make heat interchange of water and air more adequate, it is proved by testing that: Comparing to fillings which
are applied widely in the market, on the precondition of comparative thermal performance, the airflow resistance of this kind of
filling diminishes 8~20%
2. Cooling Tower fill has the good characteristic of hydrophilicity, proof-oil, high-temperature-resistant, it doesn't occur
geometric alteration under condition of 65°C, and it won't crash and crack under condition of -40°C. Its anti-flaming oxygen
index is more than 40.
According to practically experience of similary project, the filling is bound by special adhesive, ratio of bonding is no less than
95%, intensity of flat crushing ≥3000 N/m2, shear intensity after being bound for 24 hours is more than 3.3Mpa.
3. Cooling Tower fill has the good characteristic of hydrophilicity, proof-oil, high-temperature- resistant, anti-ageing. The
strength of filling block is more than 300Kg/m2.

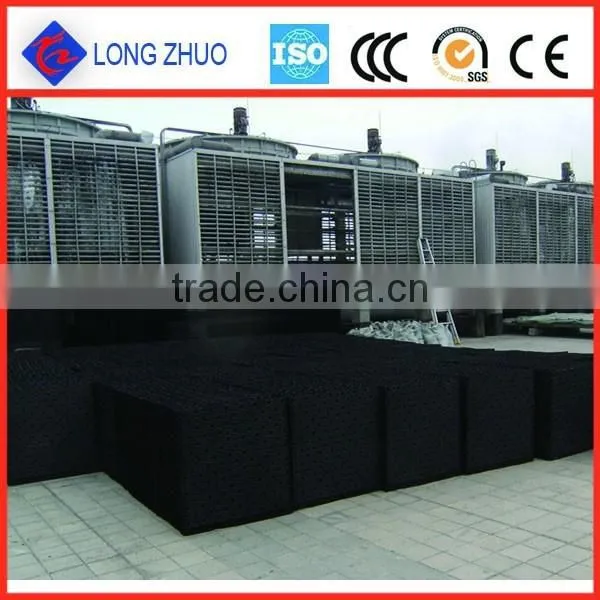

Product Packing:

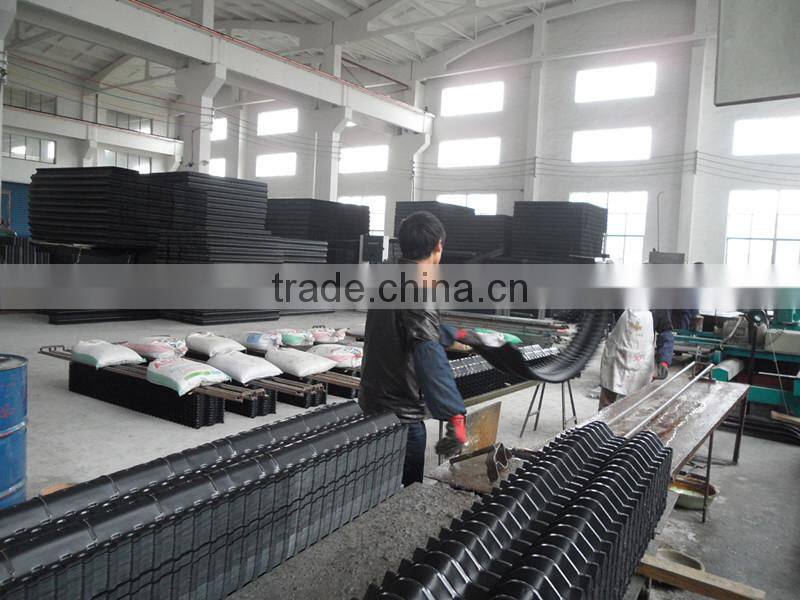

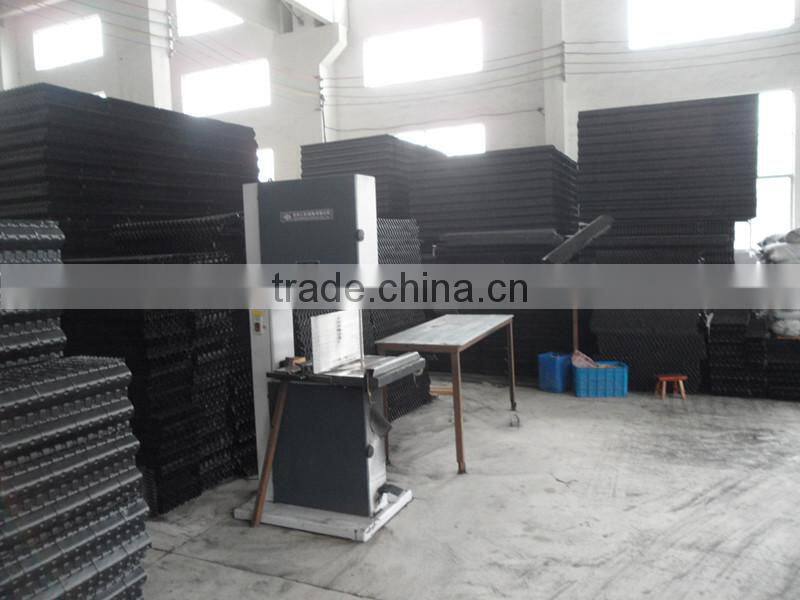

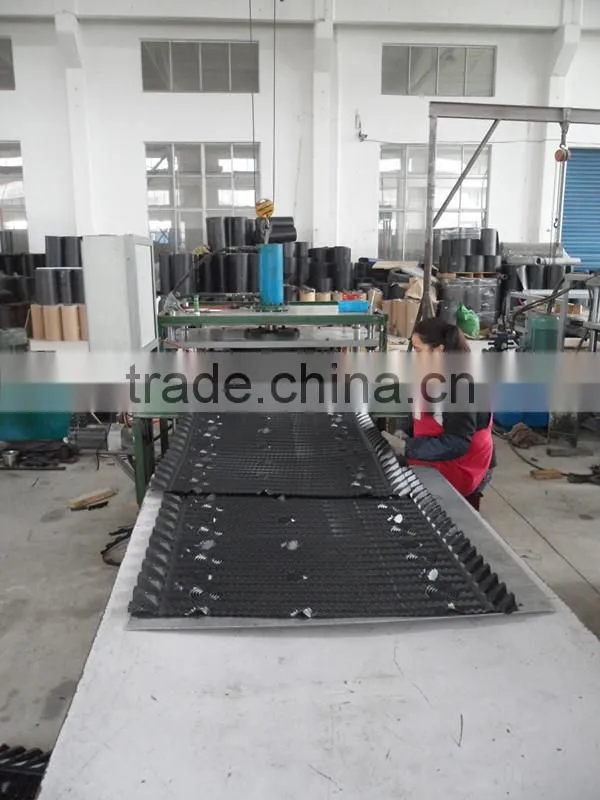

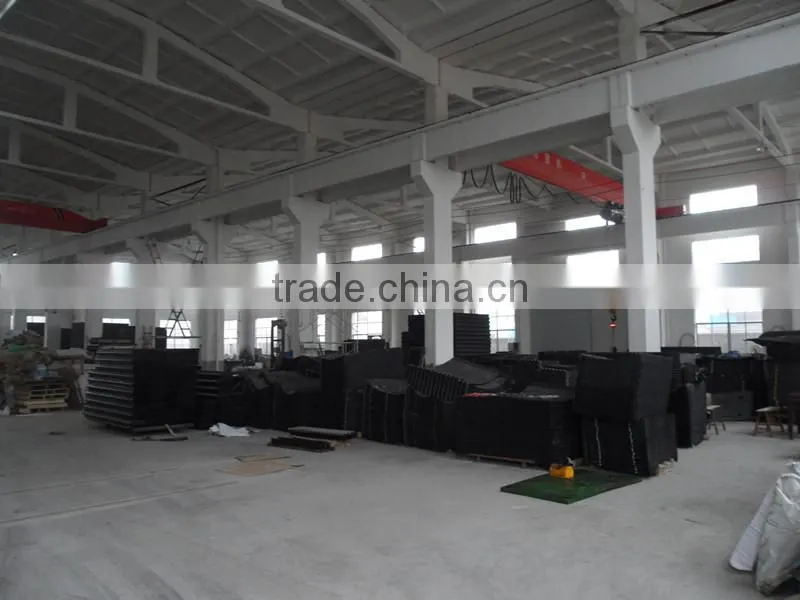

Our Workshop:
Why Choose Us?
1. Highest quality
We are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality.
2. Most competitive price.
We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional
activities in a bad economic environment
3. Professional
We are special in producing and sells, as development, methods, and handling.
4. Best service
Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service
are the basic of long term business.
