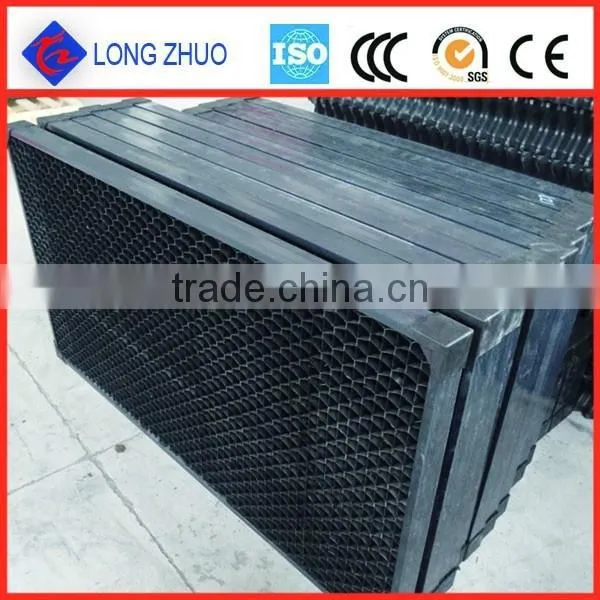

Drift Eliminator With Stainless Steel Frame/Honeycomb PVC Water Drift Eliminator in Cooling Tower

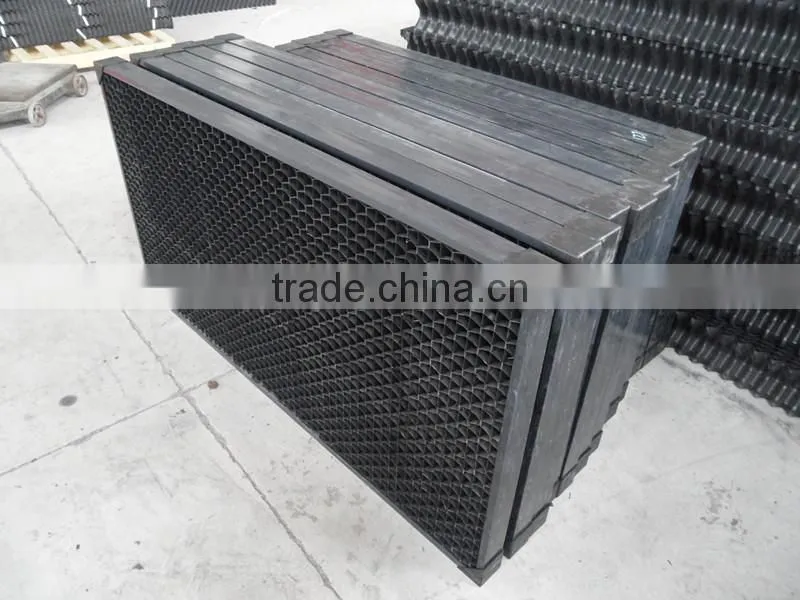

Drift eliminator with stainless steel frame/Honeycomb PVC water drift eliminator in cooling tower

Drift Eliminator Introduction:

Eliminator is deducted the hot humid air from the midst of the small droplets drift in cooling Towers, to avoid things around the environment pollution and icy water mist, water saving and environment protection device.

Drift Eliminators, made out of rigid PVC, are designed to remove entrained particles from air steam efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator.

Water droplets are separated from the air drift at the three direction change points on the drift eliminator.

For Cross flow tower applications, the almost vertical water conduits provided by the CD-100 drift eliminator remove the water droplets out of the drift eliminator area and return them back into the tower and does not allow any re-entry. The special locking pin arrangement for CD-100 facilitates quick and simple assembly at site.

For Counter flow applications, the CD-S130 drift eliminator provides a cellular rugged structure with a very low pressure drop. This results in high drift elimination efficiency while exerting minimum driving force on the fan. The CD-S130 drift eliminators get an S-shaped tubular structure as a result of their fabrication. Individual S-shaped corrugated sheets are bonded with subsequent layers to create the structure. The entire area is thus divided into several fine S shaped mini zones each removing water droplets on the entire surface of the cell.

Specification:

Color: Black

Width: 67mm,125mm, 130mm, 135mm or as your request

Length: 1200mm, 1800mm or as your request

Thickness: 0.4~0.6mm

Material: PVC/PP/FRP,PVC,PP,FRP

Applicable Temperature: 65°C~-35°C

Drift Eliminator Application:

It Widely used in thermal power plant, steel plant, petrochemical plants, and other industrial department mechanical ventilation and natural ventilation cooling tower, in practice that Eliminator has advanced design, reliable quality and effect significantly, easy installation, long service life

Packaging & Translation:

Other Kinds of Drift Eliminator

If you have any need, please feel free to contact with me. We will try our best to supply you high quality and best service.
