Plastic Pall Ring Random Packing Ring/ Polypropylene pall ring
- 20 Cubic Meter / Cubic Meters per Month
- Tianjin port
- T/T
- new design plastic bar chair mould
- rich experience factory product metal injection mould mold moulding for container
- 2015 hottest ODM high precision pump impeller injection mould factory in China
- Screw Plastic Seat High Precision Dispensing Needle /Glue Dispenser Tip For Dispensing Barrel
- cellphone display&mobile phone stand&mobile holder
- notebook holder&computer holder&laptop stand
Product Details
Place of Origin: | Hebei, China | Brand Name: | Long Zhuo | Model Number: | PR |
Plastic Modling Type: | Blow Molding |
Product Description
Specifications
Polypropylene pall ring1.Low pressure drop,
2.Big flux,high efficiency
3.Used for seperation and absorption

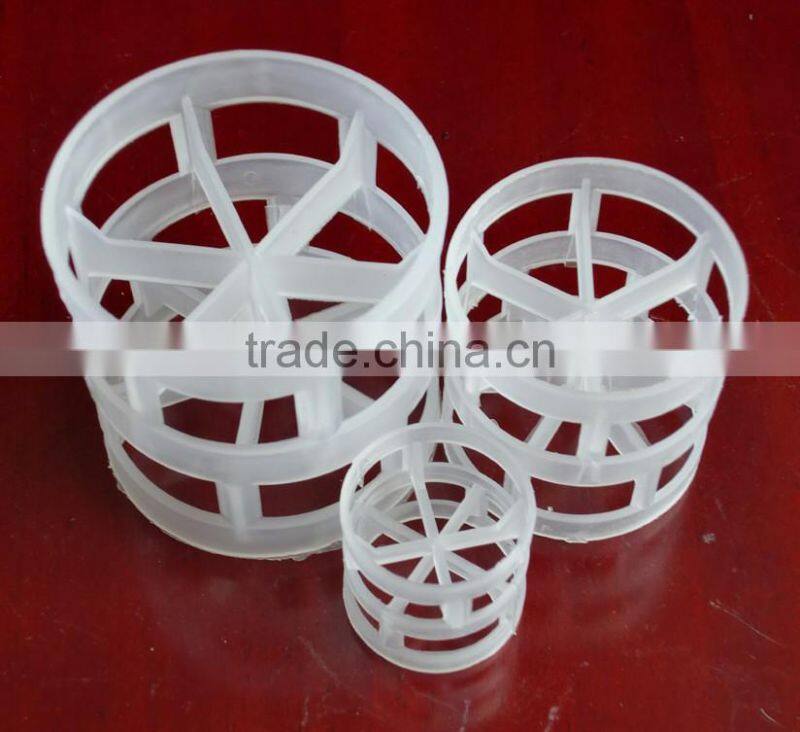

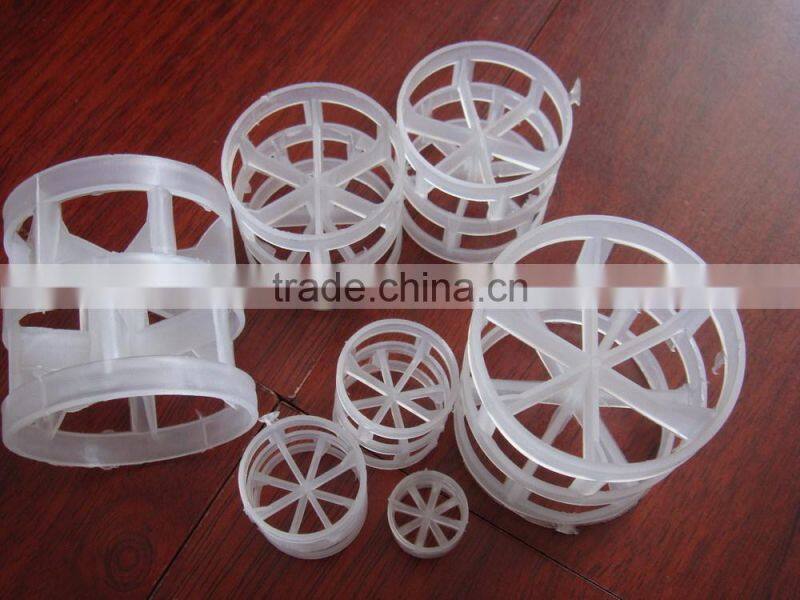

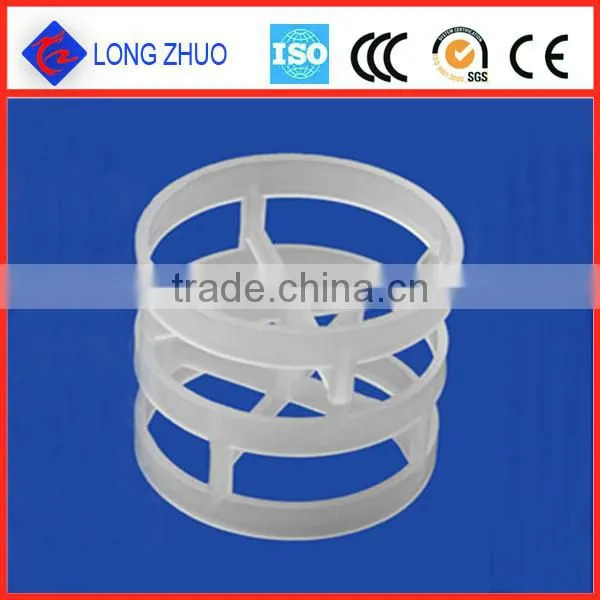

Plastic Pall Ring Random Packing Ring/ Polypropylene pall ring
Pall ring is made from heat resistant and chemical corrosion resistant plastic , for instance.polypropylene (PP). An advance on the Raschig Ring, the Pall Ring has similar cylindrical dimensions but has two rows of punched out holes, with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing, in terms of throughput, efficiency and pressure drop.
It is widely apply in the separation and absorption process, device of reducing pressure. The system of deviating sulfur. Isolation of Ethyl benzene. Toluene, Trimethylpentane, Absorbers, Degassing, Liquid/liquid extraction, water treatment, Heat transfer, etc.
D×H×δ | Specific area m2/m3 | Void rate ε % | Bulk number g/m3 | Package density (kg/m3) | F factor m-1 |
16×16×1 | 188 | 0.91 | 170000 | 85 | 275 |
25×25×1.2 | 175 | 0.90 | 53500 | 69 | 239 |
38×38×1.4 | 115 | 0.89 | 15800 | 63 | 220 |
50×50×1.5 | 93 | 0.90 | 6500 | 52 | 127 |
76×76×2.6 | 73.2 | 0.92 | 1927 | 41 | 94 |
100×100×3 | 52.8 | 0.94 | 1000 | 32 | 82 |
Physical & chemical properties
Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation Temp.(ºC) | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package Type | Container Load Capacity | Delivery time | Quality Insurance | Payment Terms | ||
20 GP | 40 GP | 40 HQ | ||||
Ton bag | 20-24 m3 | 40 m3 | 48 m3 | Within 3-10 days | Chinese National Standard; Offer quality assurance as request. | T/T, West Union |
Plastic bag | 25 m3 | 54 m3 | 68 m3 | |||
Paper box | 20 m3 | 40 m3 | 40 m3 |

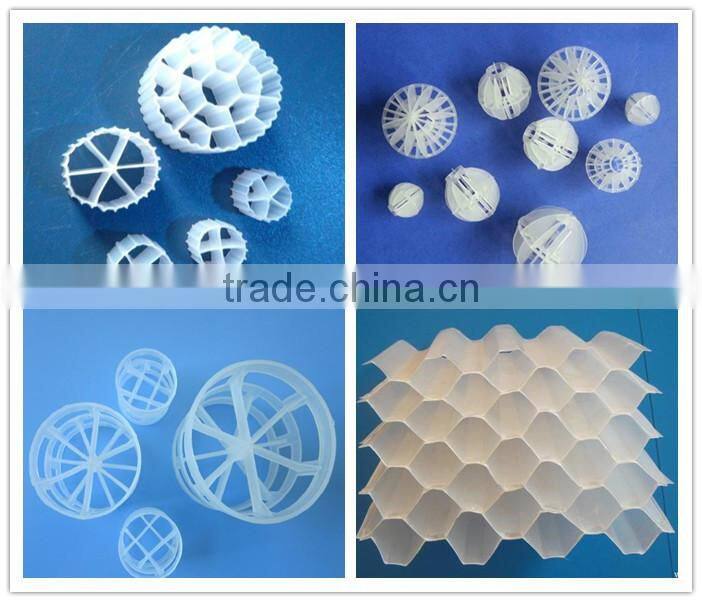

Other related product we produced:
