Specifications
Plastic Polyhedral Hollow Ball1.20 years professional manufacturer
2.Size:25,38,50,76,100
3.Material:PP,PE,PVC,PVDF
PP Hollow Ball/ Polypropylene Plastic hollow Ball
Plastic Polyhedral Hollow Ball is made of standing up to chemical corrosion materials, such as polyethylene(PE), polypropylene (PP),reinforced polypropylene(RPP),polyvinyl chloride(PVC), chlorides polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 Degree C to 150 Degree C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..
The Advantages of Plastic hollow ball:
- High free volume
- Low pressure drop
- Low mass transfer unit height
- High flooding point
- Uniform gas-liquid contact
- Small specific gravity
- High mass transfer
Applications of Plastic hollow ball:
- Widely used in petroleum, chemical, alkali-chloride, coal gas and environmental protection.
- Application temperature in media ranges from 60 to 150 degrees
Physical & Chemical properties of plastic tower packing
Performance / Material |
PE |
PP |
RPP |
PVC |
CPVC |
PVDF |
Density (kg/m3) |
0.94-0.96 |
0.89-0.91 |
0.93-0.94 |
1.32-1.44 |
1.50-1.54 |
1.75-1.78 |
Operation Temp.(Degree C) |
90 |
>100 |
>120 |
>60 |
>90 |
>150 |
Chemical corrosion resistance |
Good |
Good |
Good |
Good |
Good |
Good |
Compression Strength(Mpa) |
>6.0 |
>6.5 |
>7.0 |
>6.0 |
>8.0 |
>10.0 |
Technical Data for Plastic Polyhedral Hollow Ball Packing
Specification (mm) |
Surface area (m²/m³) |
Free volume (%) |
Bulk density (kg/m³) |
Number per m³ |
ø25 |
460 |
84 |
145 |
64000 |
ø38 |
325 |
87 |
125 |
25000 |
ø50 |
236 |
90 |
105 |
11500 |
ø76 |
150 |
92 |
90 |
3000 |
Package Type |
Container Load Capacity |
Delivery time |
Quality Insurance |
Payment Terms |
||
20 GP |
40 GP |
40 HQ |
||||
Ton bag |
20-24 m3 |
40 m3 |
48 m3 |
Within 3-10 days |
Chinese National Standard; Offer quality assurance as request. |
T/T, L/C, Paypal, West Union |
Plastic bag |
25 m3 |
54 m3 |
68 m3 |
|||
Paper box |
20 m3 |
40 m3 |
40 m3 |
|||

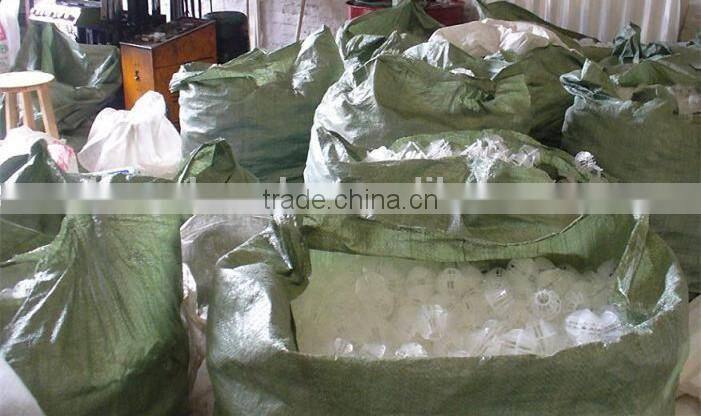

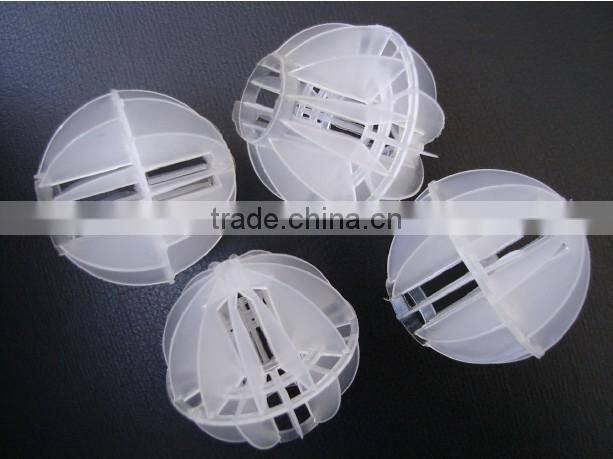

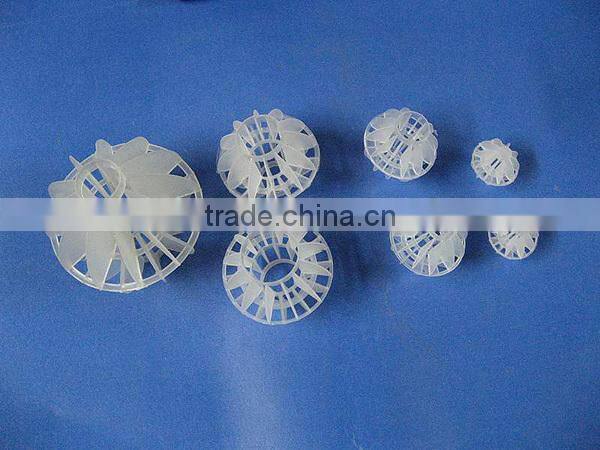

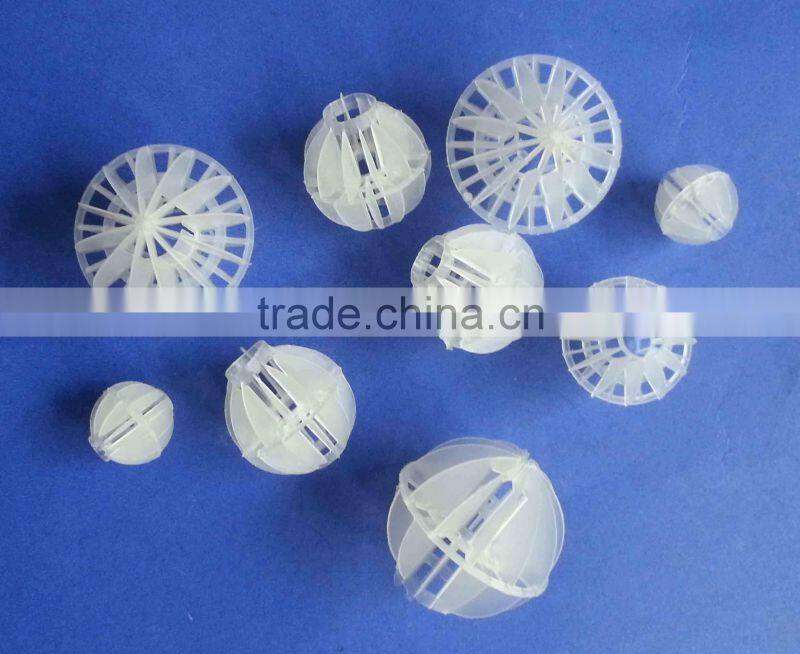

Detail Photos
