Split Stainless Steel Cable Pulley,High Performaance Block and Tackle Pulley,Block and Tackle Pulley

Split Stainless Steel Cable Pulley,High Performaance Block and Tackle Pulley,Block and Tackle Pulley photo-1
US$ 10 - 30 MOQ: 100 Sets
Key Specifications
Get Latest Price
Type:
V-Belt
Material:
Nylon
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.
Type V-Belt
Material Nylon
Place of Origin Hebei, China
Brand Name LongZhuo
Model Number PCP

Split stainless steel cable pulley,High performaance Block and tackle pulley,Block and tackle pulley



Introduction:

1.Wheel Size: 120~450mm
2.Wheel Material: Nylon/Aluminum/Stainless steel
3.Wheel number: 1~5
4.Galvanized Steel Frame

Description:

1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.

2. They have are used to support conductors, OPGW,ADSS, communication lines

3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks

are made of galvanized steel.

4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.

Specification:

Product type

Suited conductor/cable

Rated load(KN)

Weight(kg)

Wheel Material

HCPN-120x35

LGJ25-70

5

1.5

Nylon

HCPN-160x40

LGJ95-120

10

2.4

N

HCPN-200x40

LGJ150-240

15

2.6

N

HCPN-200x60

LGJ150-240

15

3.1

N

HCPN-250x40

LGJ150-240

20

3.7

N

HCPN-250x60

LGJ300-400

20

3.9

N

HCPN-270x60

LGJ300-400

20

4.4

N

HCPN-320x60

LGJ300-400

20

7.5

N

HCPN-400x80

LGJ400-500

20

11

N

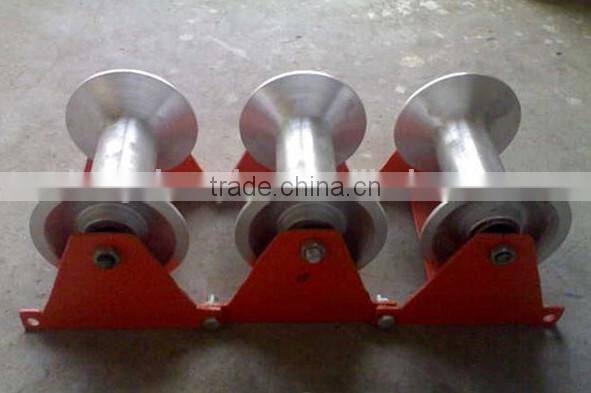

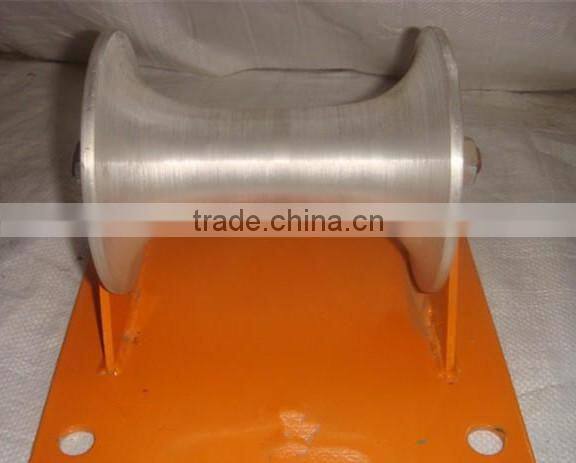

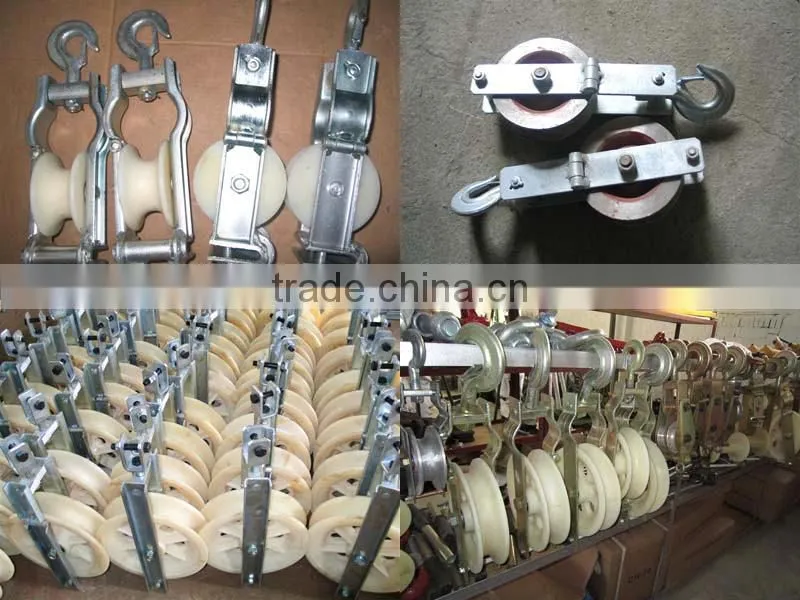

Product Showcase:

Split stainless steel cable pulley,High performaance Block and tackle pulley,Block and tackle pulley

Split stainless steel cable pulley,High performaance Block and tackle pulley,Block and tackle pulley

Split stainless steel cable pulley,High performaance Block and tackle pulley,Block and tackle pulley
