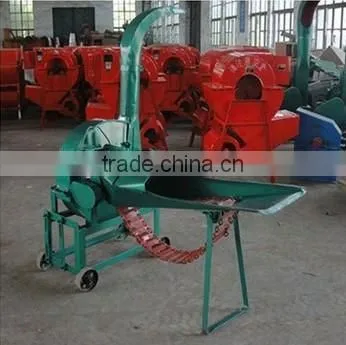

Grass Cutter
Stable working hay cutter
High efficiency hay cutter also named by Straw chopper, straw chopping machine, straw cutting machine
Straw grinder, straw crusher, straw shredder, straw shatter machine, cotton stalk cutting machine,
Usage of the hay cutter
The machine is used to chop cotton stalk, corn stalk, peanut stalk, , reed, wheat straw hood, bamboo, and
Branch ( Φ <50MM).
Usage of the final product
1. It can be the feed of cow or sheep.
2. It can be used to electricity generating, paper making, artificial board making, ethanol extracting etc.
The machine can be matched with the dynamo, diesel engine or 30-50 HP tractor.
Structure of the hay cutter
It mainly consist of feeding structure, chopping structure, throwing structure, driving structure, running gear,
Protective device and rack etc.
Model |
93SY-3 |
|
Equip electric machine(kw) |
5.5 |
|
Capacity(t/h) |
1-3 |
|
Length of finished material (mm) |
8, 12, 24, 40 |
|
|
Main body |
1056* 1886* 2295mm |
Transport distance |
3700mm far |
|
Rotary speed(r/min) |
1450 |
|
V-belt |
B-2100 3 units |
|
Numbers of blade |
3 |
|
Weight(kg) |
335 |
|
