Help CenterAutomatic Nitrogen Gas Generation System
Related Products
Specifications
Air Source Pressure: 0.8-1.0MpaNitrogen Pressure: 0.1-0.65Mpa(adjustable)
Dimensions: 590*570*980mm
Voltage: 220V
Nitrogen Gas Generation System

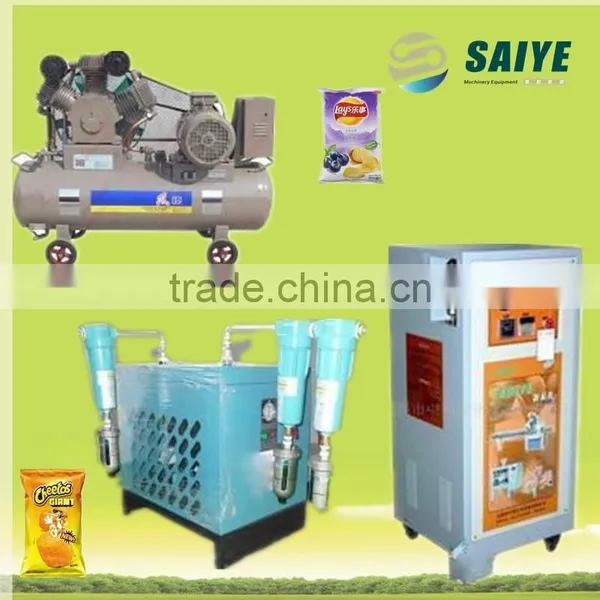

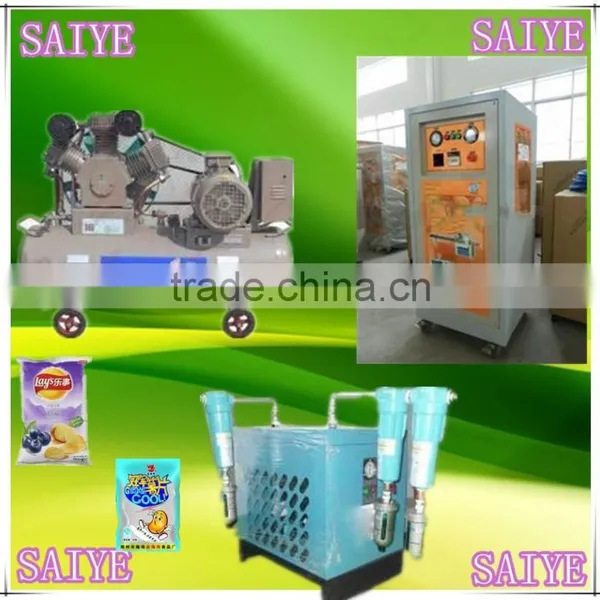

I. The Whole Nitrogen Generation System included Three Parts.
1. Piston Oil-free Air Compressor 1 set
2. Air Dryer & Precision Filters 1 unit
3.SY-3 Nitrogen Generator 1 set
Ⅱ, Specifications of Each Part of the Equipment as Following
1, WW-0.42/10 Oil-free Air Compressor
Items |
Content |
Air displacement |
0.42m3/min |
Working pressure |
0.8-1.0Mpa |
Power |
4KW |
Weight |
240KG |
Dimensions |
1300×460×900mm(L×W×H) |
Voltage |
380V 3phases 50HZ |
Quantity |
1 set |
2, Air Dryer & Three Precision Filters
1) HRD-1F Refrigeration Air Dryer
Items |
Content |
Model |
SY-3 |
Flow |
1.2m3/min |
Power |
0.5KW |
Weight |
60KG |
Voltage |
220V single phase 50HZ |
Dimensions |
680×490×670mm(L×W×H) |
Pressure dew-point |
2-10℃ |
2) H-001 Precision Filters
Items |
Content |
Model |
H-001 |
Flow |
1.2m3/min |
Disposal residues |
<0.01um |
Residual oil content |
0.01ppm |

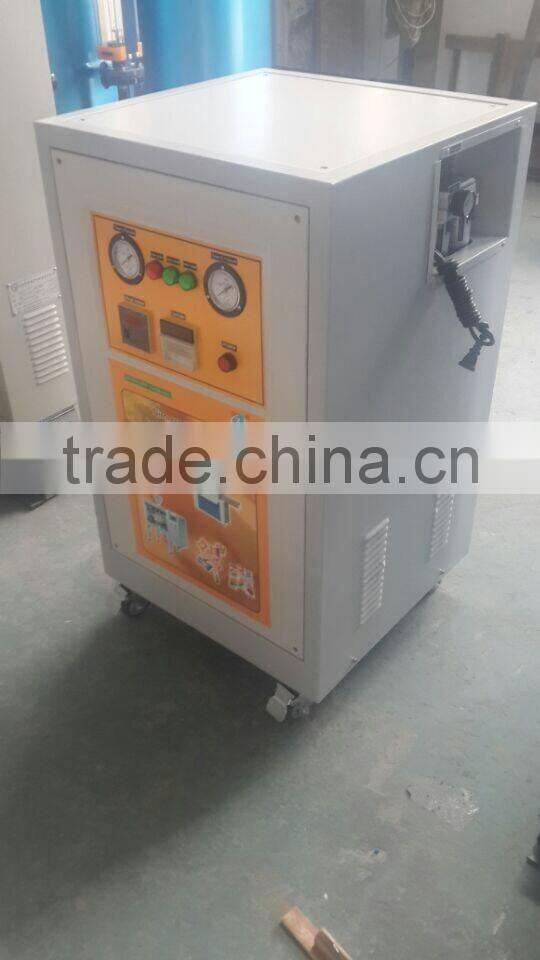

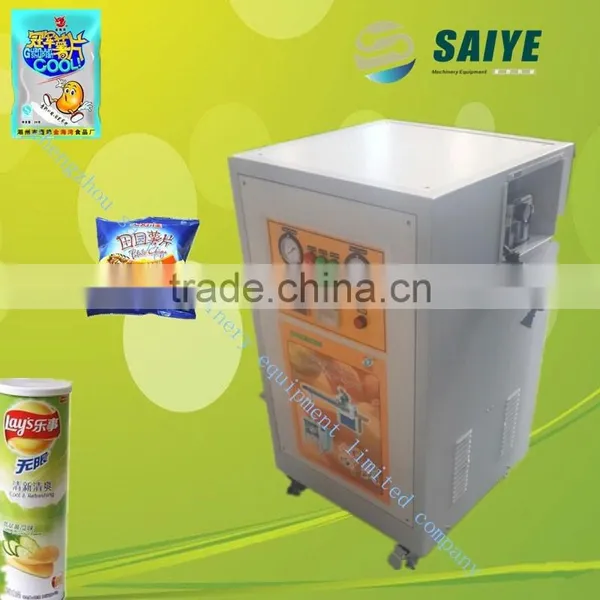

3, SY-3 Nitrogen Generator
(1) Main Characters
*The equipment adopts the brand-newly designed filling technique and the service.
*Special bypass design ensures lower energy consumption and higher yielding results.
*Computer aided operation with the simple technical design makes for easy maintenance of the equipment.
* In addition, such equipment has compact structure, which can be easily moved because of small volume.
(2) Technical Parameters
Items |
Content |
Nitrogen Capacity |
3Nm³/h |
Power |
5W |
Purity |
99.5-99.9% |
Dew Point |
≤-38℃ |
Air Source Pressure |
0.8-1.0Mpa |
Nitrogen Pressure |
0.1-0.65Mpa(adjustable) |
Dimensions |
590×570×980mm(L×W×H) |
Voltage |
220V single phase 50HZ |
Weight |
120kg |
(3) Main Components List of Nitrogen Generator
NO. |
Name |
Types and Specifications |
Brand |
Country |
1 |
Carbon molecular sieve |
MSC-3KT-172 |
JEC |
Japan |
2 |
Magnetic valve |
4V320-10-DC24V |
AIRTAC |
Taiwan |
3 |
Controller |
DHC-9A |
DAHUA |
China |
4 |
Oil-water separator |
AD402-04 |
SMC |
Japan |
5 |
Nitrogen analyzer |
Range:79~99.9% |
MEICHENG |
China |
6 |
Adsorption tower |
Nonstandard |
SAIYE |
China |
7 |
Buffer tank |
Nonstandard |
SAIYE |
China |
8 |
Pipe fitting rack |
Nonstandard |
SAIYE |
China |
