Home > Products > Fertilizer processing machinery > SYW-600 Series chemical materials airflow sieving machine

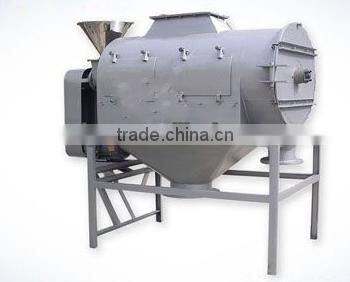

SYW-600 Series chemical materials airflow sieving machine
- 100 Set / Sets per Month
- Qingdao Shenzhen Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | saiye | Model Number: | SYW-600 |
Condition: | New | After-sales Service Provided: | Overseas service center available |
Product Description
SYW-600 Series chemical materials airflow sieving machine
Operating principle:
WS series screen, devoid of gravitational potential energy principle of operation, using air as the carrier, operation principle of the kinetic energy work.
By negative pressure air after material is mixed with air, among sieve machine rotor, by pressure rotor blades enough centrifugal force, the screen mesh to the bucket injection network, through the collection. Super size material cannot pass network, is being exhausted from port self-discharging, so as to achieve rapid screening of purpose.
Performance feature:
1.High screening efficiency, can reach more than 95%;
2.Table when output is 5 to 10 times that of vibrating screen or higher;
3.To adapt to the fineness range: 80-530 purpose powder material can be efficient screening;
4.The precise product fineness, without super grade mixing phenomenon;
5.Screen installed vertically, not weight, long service life;
6.Screening program in negative half cycle state, no dust pollution;
7.Screening program in negative half cycle state, no dust pollution;
8.Low noise, low power consumption, continuous operation, reduce maintenance.
Suitable griddle material:
Graphite powder, powder, powder, coating, fly ash, talcum powder, industry, medicine, cosmetics, fire extinguishing agent, plastic powder, clay, abrasive materials, aluminum powder, glass powder, refractory materials, starch, milk powder, powder metallurgy, magnetic materials, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore, etc.
Specifications and performance parameters:
SYW—600 | SYW—1000 | SYW—1600 | SYW—2000 | |
gas flow (m3/h) | 240 | 300 | 460 | 650 |
Screen mesh size (Mesh/hour) | 80—530 at will change | |||
Feed size (Mesh) | 40 mesh above | |||
Sieve machine power (Kw) | 1.5 | 3 | 4 | 5.5 |
speed of main shaft (r.p.m) | 450—1450 | |||
Sieve machine outside diameter (mm) | Φ600 | Φ1000 | Φ1600 | Φ2000 |
whole high (mm) | 1150 | 1500 | 2300 | 2500 |
