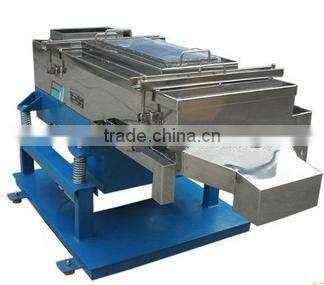

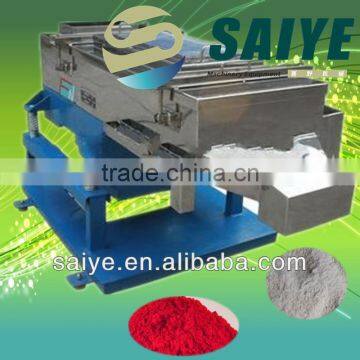

Best Selling !SYF-520 Building materials Linear vibrating sieve
Introduction:
SYF series linear vibrating screen using the vibration motor excitation to cheer for the vibration source, make the material being thrown up on screen, at the same time, forward a straight line from material feeder evenly into the sieving machine feeding port, several kinds of specifications by multilayer sieve sieve , sieve, respectively from the respective outlet .With low consumption, high output, simple structure, easy maintenance, fully closed structure, no dust overflow scattered, automatic row material, more suitable for assembly line work.
Usable range:
For powdery and granular materials selection and classification, widely used in plastic, abrasive, chemical industry, medicine, building materials, food, carbon, fertilizer and other industries.
Technical parameters:
Model |
SYF-520 |
SYF-525 |
SYF-1020 |
SYF-1025 |
nominal dimension mm |
500*2000 |
500*2500 |
1000*2000 |
1000*2500 |
material diameter mm |
0.074-10 |
0.074-10 |
0.074-10 |
0.074-10 |
screen slope |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
Vibration amplitude |
3-4.5 |
3-4.5 |
3-4.5 |
3-4.5 |
layer number |
1-6 |
1-6 |
1-6 |
1-6 |
power Kw |
2*(0.4-0.75) |
2*(0.4-0.75) |
2*(0.4-0.75) |
2*(0.4-1.1) |
Overall dimensions:
model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
K |
SYF-520 |
2130 |
966 |
935 |
566 |
1700 |
600 |
235 |
200 |
150 |
400 |
SYF-525 |
2630 |
966 |
935 |
566 |
2200 |
600 |
235 |
200 |
150 |
400 |
SYF-1020 |
2130 |
1368 |
935 |
1068 |
1700 |
600 |
235 |
200 |
150 |
900 |
SYF-1025 |
2630 |
1368 |
935 |
1068 |
2200 |
600 |
235 |
200 |
150 |
900 |
Note: the table size according to the size of 1 layer sieve pattern.
