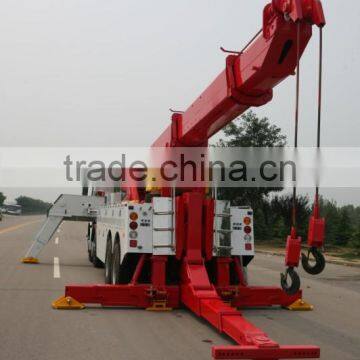

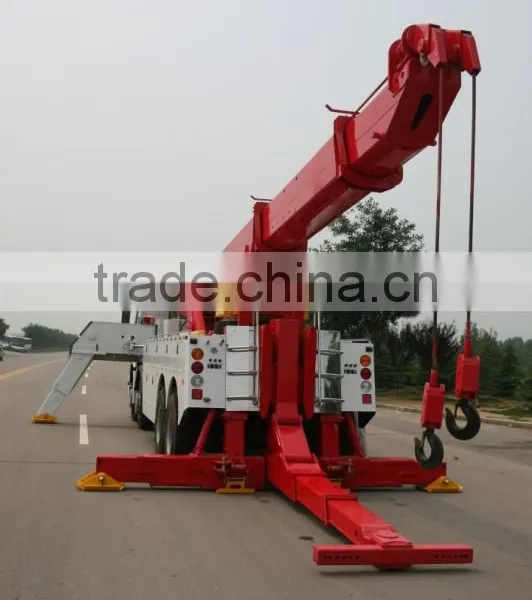

60ton Heavy Duty Tow Truck Wreckers

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 3

Condition:

New

Jinan Bodihao Mechanical Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 3

Condition New

Transmission Type Manual

Place of Origin Shandong, China

Brand Name tw

Model Number st5251

Specifications

60ton heavy duty tow truck wreckers
1.usa technology
2.360 rotator boom
3.from 5ton to 60ton
4.Sinotruk howo chassis

60ton heavy duty tow truck wreckers

main specification:

Wrecker Model		ST5251TQZCZ
Chassis Model		ZZ1257N5847C
Engine Power hp		336
Outline Dimension(L×W×H) (mm)		10560×2496×3250/3470
Wheelbase( mm)		5825+1350
No. of Tire		10
Specification of Tire		12.00-20
Approach Angle/Departure Angle		16°/14°
Front Overhang/ Rear Overhang (mm)		1500/1885
Curb weight( kg)		23600
Boom	Max. Lifting Mass (kg)	20000
	Max. Lifting Height (mm)	9500
	Rotating Angle	360°
	Rating Pulling Force of Winch KN	2*100
Under Lift	Original. Lifting Mass( kg)	16000
	Rating Lifting Mass (kg)	7600
	Max. Effective Length (mm)	3048
	Extension Stroke (mm)	1640
Outriggers
	Longitudinal Span between Front Outrigger and Rear Outrigger (mm)	6600
	Transverse Span of Front Outriggers (mm)	5110
	Transverse Span of Rear Outriggers (mm)	4225
Outriggers Supporting Force KN		4×147
Rating Towing Mass(kg)		30000
Rating Pulling Force of Winch(KN)		2×100
Length of Cable Rope m		40 (Diameter 18mm)
Attention: The chassis with the similar specifications is available to choose.
