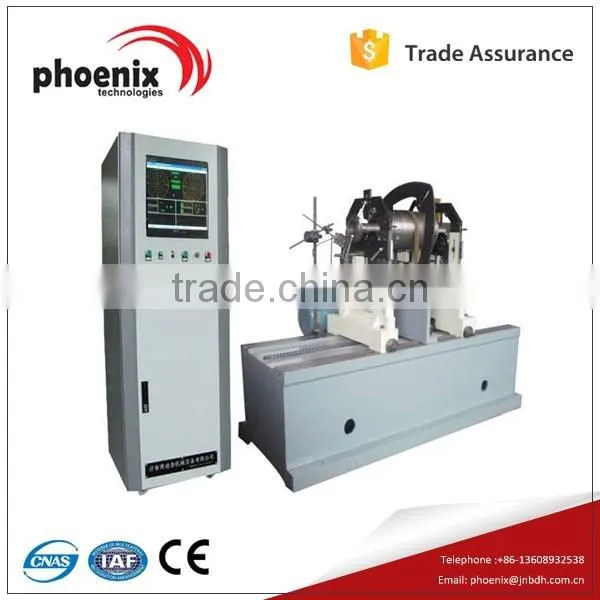

CE certification turbine rotor balancing machine
Specifications
Balancing Machine for Turbocharger, Turbine,Compressor,Impeller,Rotor
Simple
1,high precision 2,high quality
3,high efficiency 4,low failure rate
Optional function
1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition
Range of Application
This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.
Design
Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
Production Parameters
Technical data at a glance | YYQ-160A |
Mass scope of workpiece kg | 2-160 |
Biggest diameter workpiece mm | 950 |
Two span of supports mm | 80-1400 |
With a diameter circle in drag mm | 30-300 |
Trunnion support mm | 10-90 |
Balancing speed r/min | 300-2500 |
Min achievable residual unbalance amount | ≤0.5gmm/kg |
Unbalance reduction ratio % | ≥90% |
Motor power | 1.5KW |
mode of speed regulation | Variable frequency speed regulation |
Transmission model | Circle with |
turbine balancing machine pictures
About Us
1, JINAN BODIHAO MECHANICAL EQUIPMENT CO.,LTD. is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical- electro-mechanical Integration.
2, There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
3, Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV, CE Evaluation of EU.
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
